Base Rotate Kit with HS-422 servo ROB0034

:CME04012
€36.51

The Base Rotate Kit (servo included) is perfect for rotating a large mass

Quantity
Out-of-Stock

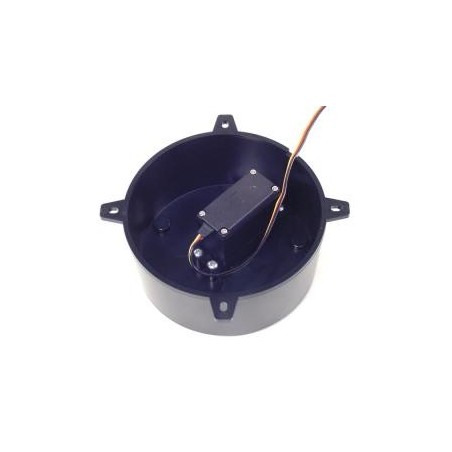

The Base Rotate Kit is perfect for rotating a large mass. It can easily support 4,5kg of weight. It has five 6mm bearings to reduce the friction. It's injection molded from ultra strong ABS plastic. It fits the HS-422, HS-475, HS-485, and HS-645 servos. Other have not been tested. The kit comes without assembly.



Base Unit Specification

  • Top diameter = 93,675 mm
  • Bottom diameter = 98,425 mm
  • Height = 47,625 mm



Shipping List

  • Base Unit (1 unit)
  • Hitec HS422 Servo (1 unit)



Assembly Guides

  • Assembly Guide (online) for the Base Rotate Turntable (a project example)



HS-422 Servo Information

The HS-422 has been around for a while and for a good reason, durability and the ability to be easily modified. For inexpensive robotic applications this the perfect servo. Simply a great servo at a great price.



HS-422 Servo Specifications

  • Control System: +Pulse Width Control 1500usec Neutral
  • Required Pulse: 3-5 Volt Peak to Peak Square Wave
  • Operating Voltage: 4.8-6.0 Volts
  • Operating Temperature Range: -20 to +60 Degree C
  • Operating Speed (4.8V): 0.21sec/60° at no load
  • Operating Speed (6.0V): 0.16sec/60° at no load
  • Stall Torque (4.8V): 45.82 oz/in. (3.3kg.cm)
  • Stall Torque (6.0V): 56.93 oz/in. (4.1kg.cm)
  • Operating Angle: 45 Deg. one side pulse traveling 400usec
  • 360 Modifiable: Yes
  • Direction: Clockwise/Pulse Traveling 1500 to 1900usec
  • Current Drain (4.8V): 8mA/idle and 150mA no load operating
  • Current Drain (6.0V): 8.8mA/idle and 180mA no load operating
  • Dead Band Width: 8usec
  • Motor Type: 3 Pole Ferrite
  • Potentiometer Drive: Indirect Drive
  • Bearing Type: Dual Oilite Bushing
  • Gear Type: Nylon
  • Connector Wire Length: 11.81" (300mm)
  • Weight: 1.6oz (45.5g)



HS-422 Servo Specifications Download

  • Announced specification of HS-422 Standart Delux Servo here
