Analog Feedback Servo

:MOT03030
€17.50
Tax included
Quantity
Last items in stock

  • DESCRIPTION

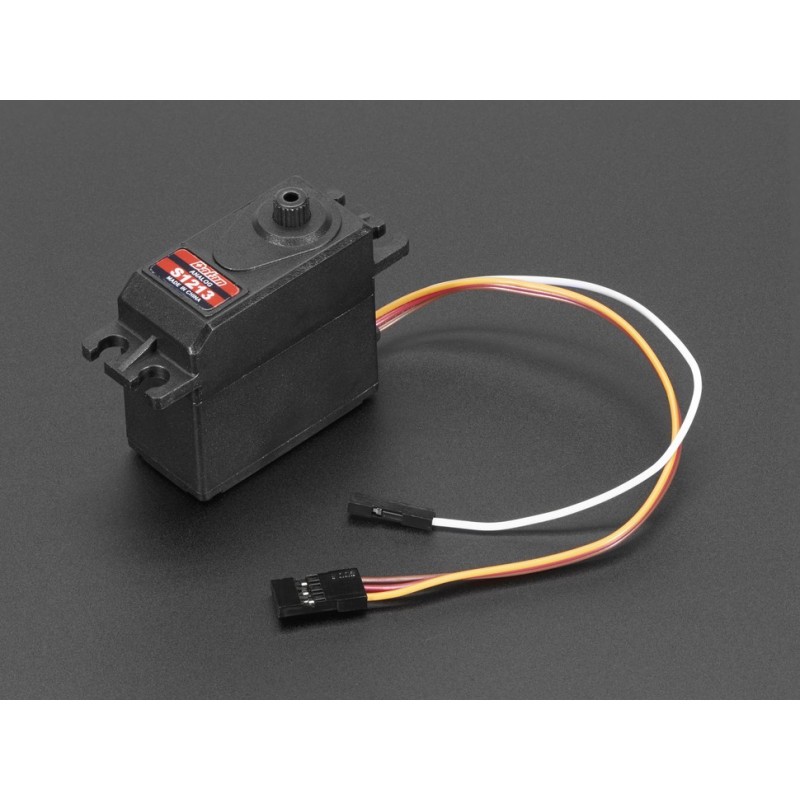

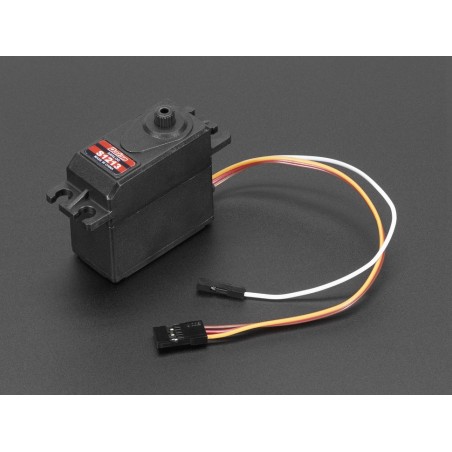

    It looks like a servo, it acts like a servo, but it's more than just a servo! We got a factory to custom-make these classic 'standard' sized hobby servos with a twist - the feedback (potentiometer wiper) line is brought out to a fourth white wire. You can read this wire with an analog input such as those on an Arduino, to get the servo's position. That information can be used in robotics to improve stability or even allow 'recording' of servo motion.

    Check out our example Arduino sketch which demonstrates how to record motion data to the EEPROM and then play it back when a button is pressed. Comes with a range of horns as seen above.



    Analog Feedback Servo (2:55)

  • TECHNICAL DETAILS

    • Dimensions: 39.55mm / 1.5" x 39.55mm / 1.5" x 19.5mm / 0.7"
    • Max Dimensions: 55.36mm / 2.1" x 43.34mm / 1.7" x 19.5mm / 0.7"
    • Wire length (at least): 13cm / 5.1" long
    • Torque: 90.26 oz*in / 6.5 kg*cm
    • Speed: 0.21 sec/60°
    • Weight: 46 grams
    • Dual ball bearing
    • Plastic gearbox
    • Spline Count: 23
