Servo - Generic High Torque Full Rotation (Standard Size)

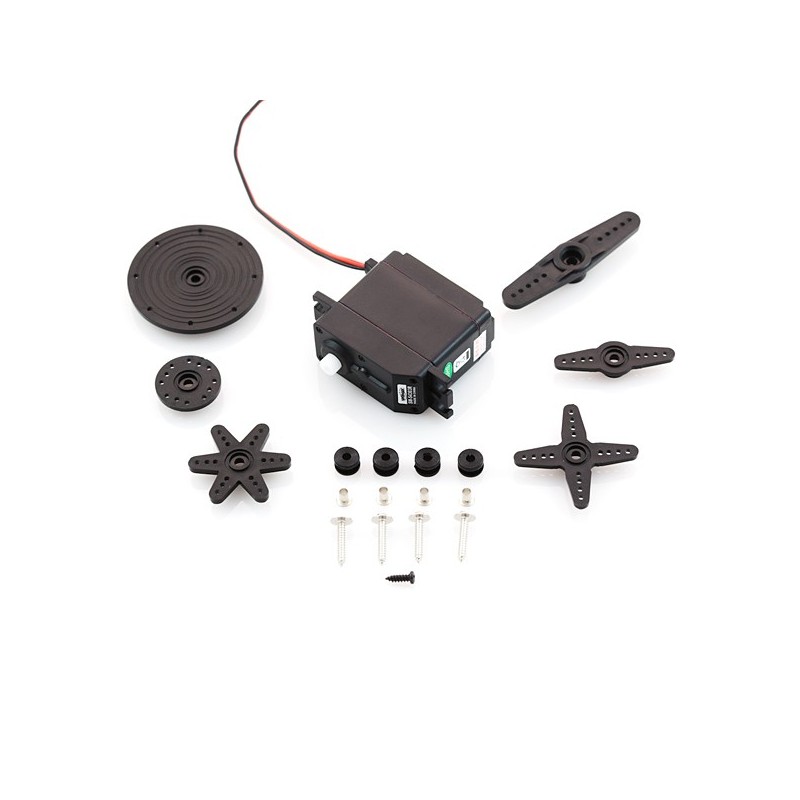

Description: Here, for all your mechatronic needs, is a simple, high quality continuous full-rotation servo motor. A standard 3-pin power and control cable is attached and all hardware shown is included.

Features:

• Continuous 360° rotation
• Rest point adjustment
• Operating voltage: 4.8-6.0VDC
• Top operating speed: 60-70RPM (4.8-6.0VDC respectively)
• Torque: 3.3-4.8 kg-cm (4.8-6.0VDC respectively)
• 4 plastic gears + 1 metal gear
• Double ball bearing

Dimensions:

• 42 x 39.5 x 22.5mm
• Wire length: 30cm
• Weight: 44g

Documents:

• Datasheet
