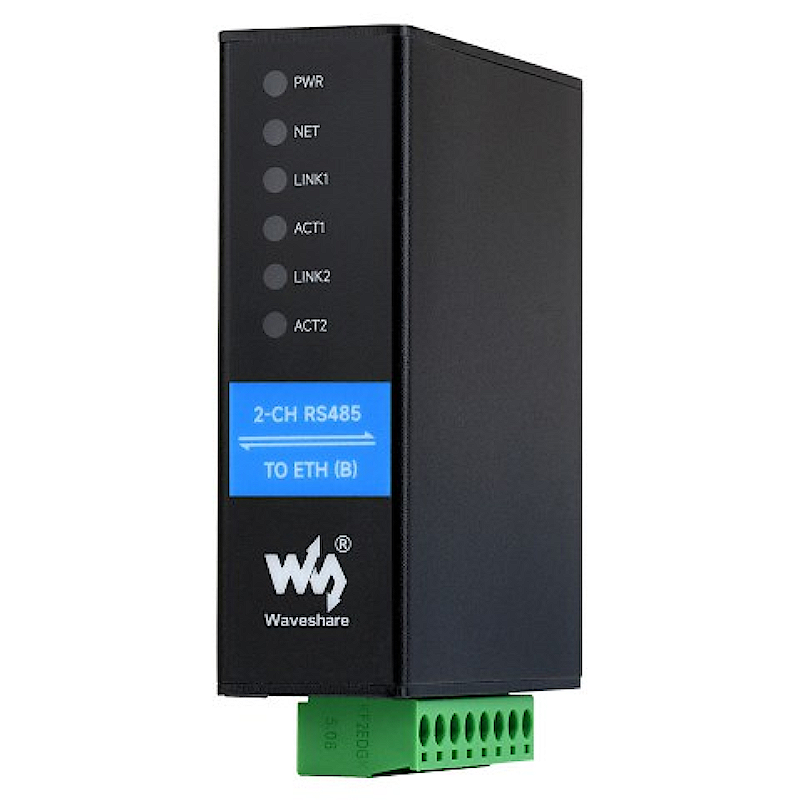

2CH RS485 TO RJ45 ETHERNET SERIAL SERVER DUAL CHANNELS RS485 INDEPENDENT OPERATION, DUAL ETHERNET PORTS, NO POE- WAVESHARE 24962

: COM03031
€39.90
Tax included

2-Ch RS485 to RJ45 Ethernet Serial Server, Dual channels RS485 independent operation, Dual Ethernet Ports, Rail-mount Industrial Isolated Serial Module, Bi-directional Transparent Transmission

If you want to know more about this product, please check its Wiki Page.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Industrial Isolated 2-Ch RS485 to RJ45 Ethernet Serial Server

2-Ch RS485 To Ethernet, Modbus/MQTT/JSON Support, Rail-mount Metal Case

2-CH-RS485-TO-ETH-B-details-1.jpg 2-CH-RS485-TO-ETH-B-details-3.jpg



Features at a glance

This is a 2-ch RS485 device data acquisitor / IoT gateway designed for the industrial environment. Dual RS485 can work simultaneously without interfering with each other. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, and network switch. The module features dual RS485 and dual Ethernet ports (PoE function optional), uses a DC port (outer diameter: 5.5mm, inner diameter: 2.1mm) and screw terminal for power input. The case with rail-mount support, is small in size, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...



Specifications

Model

2-CH RS485 TO ETH (B)

Product Type

Serial server, Modbus gateway, MQTT gateway

Primary function

Realize the bidirectional transparent transmission function of RS232/485/422 to Ethernet

Communication Interface

RS232/485/422 × 1, Ethernet port × 1

Power supply

DC 5.5 power port, 6 ~ 45V DC screw terminal

Isolation Protection

Power isolation, signal isolation protection





Communication Interface

>

Ethernet

RJ45

10 / 100M self-adaptive RJ45 interface, 2KV surge protection

Serial port

Isolated RS232/485/422



Serial Parameters

Baud Rate

300 ~ 115200 bps

Parity Bit

none, odd parity, even parity, mark, space

Data Bits

5 ~ 9 bits

Flow Control

no flow control



Software

Protocol

ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS

Configuration Method

PC configuration, WEB browser, device management function library

Communication Method

TCP/IP direct communication, virtual serial port mode

Operating Mode

TCP server, TCP client (TCP server also coexist), UDP, UDP multicast



Other

Operating Temperature

-40℃ ~ 85℃

Humidity Range

5% ~ 95% relative humidity

Dimensions

L × W × H: 88.7 × 64.5 × 24.2 mm







Primary function

bi-directional transparent data transmission between RS485 and Ethernet




Support Ethernet Port Cascade

Onboard 2-ch Ethernet Ports for communication and cascade
Either one can be used for dual serial server network communication, while the other one can be used for cascading or communication with other devices


* Note: Each module in the cascade needs to be powered individually. The working current of the module is 12V/150mA (MAX) and can be cascaded up to 8.



Rail-mount support

Industrial-grade rail design, compact size, easy installation, cost-effective






Modbus gateway support

suitable for Modbus networking upgrade, Can Be Used With specific Configuration Software






Multi communication modes

supports TCP server / TCP client / UDP multicast / UDP mode

2-CH-RS485-TO-ETH-B-details-17-1.jpg 2-CH-RS485-TO-ETH-B-details-17-2.jpg

* Note: This module is dual-channel, and each channel supports the above functions separately





MQTT/JSON to Modbus

More flexible conversion between different protocols


When used as MQTT gateway, the devices can upload serial data to MQTT server by MQTT protocol through transparent transmission, supported servers including Baidu Cloud MQTT, Alibaba Cloud MQTT, China Mobile OneNet, etc. The acquired Modbus RTU or non-standard serial data can be parsed into JSON format and packaged into MQTTdata packet for uploading.

When used as JSON data acquisition gateway, the devices can be connected to data acquisition instruments through RS485 connection, then acquire data automatically, convert the data into JSON format, and finally post it to server. The acquired data supports Modbus RTU 645 instrument 97 version, 645 instrument 07 version, as well as sorts of non-standard RS485 protocols. The uploaded data format can be configured via host, and the JSON upload protocol can be MQTT protocol, HTTP POST protocol, HTTP GET protocol, and so on.




Multi hosts roll-polling support

Different network devices will be identified and responsed respectively, no more crosstalk issue while communicating with multi network devices






User-defined heartbeat/registration packet

Easy for cloud communication and device identification






NTP protocol support

Getting network time info for serial output or data upload






Multi configuration methods

Supports Web browser configuration, obtaining dynamic IP via DHCP, DNS protocol connected domain server address






Multiple Protection, Safe And Stable

Onboard power supply and signal isolation, it can provide stable isolation voltage with high reliability and strong anti-interference. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock proof performance






Aluminium Alloy Enclosure

Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation Solid And Durable, Fashion And Good Hand Feeling





Interface introduction



Outline dimensions








Support Batch Customization

Support software and hardware customization - Including hardware interface, LOGO, label, case and web page, etc.





Package Content

Weight: 0.134 kg

  1. 2-CH RS485 TO ETH (B) x1
