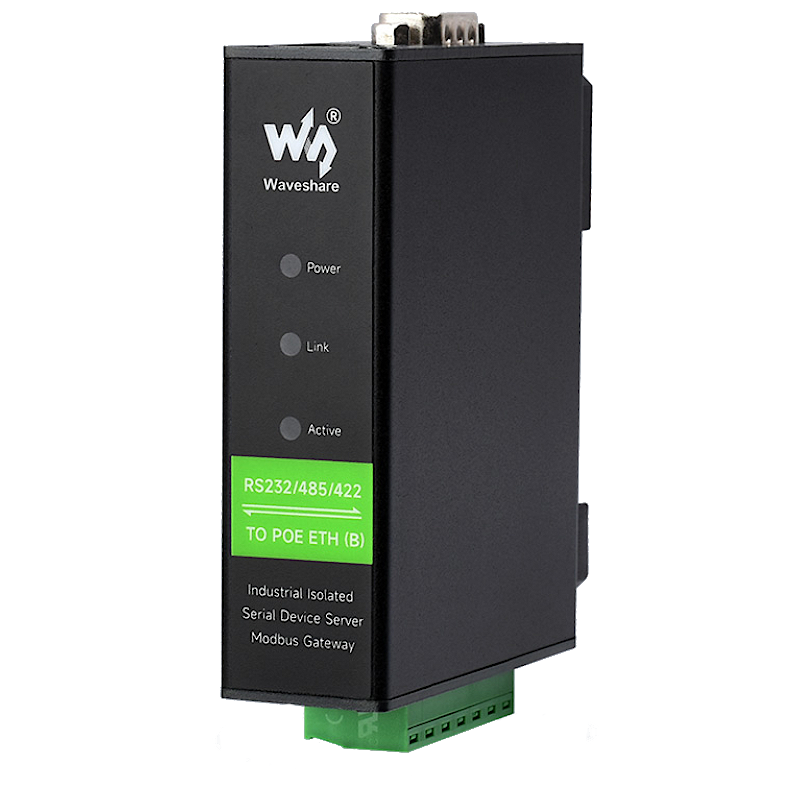

Rail-Mount Serial Server, RS232/485/422 to RJ45 Ethernet Module, Modbus Gateway, PoE Ethernet Port - Waveshare 23626

:COM03026
€25.61

his is an RS232/485/422 device data acquisitor/IoT gateway designed for an industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232/485/422 to JSON, etc. Adopting RS232/485/422 and Ethernet interface with PoE function, it can be connected with screw terminals for power input by the power port (outer diameter: 5.5mm, inner diameter: 2.1mm)

If you want to know more about this product, please check the Wiki Page.

Note: The power supply is not included, it is recommended to use with a 12V Power Adapter.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

RS232-485-422-TO-POE-ETH-B-details-1.jpg RS232-485-422-TO-POE-ETH-B-details-2.jpg



Features at a glance

This is a RS232/485/422 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS232/485/422 and Ethernet port (PoE function optional), uses DC port (outer diameter: 5.5mm, inner diameter: 2.1mm) and screw terminals for power input. The case with rail-mount support, small in size, easy to install, cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...



Parameter

ModelRS232/485/422 TO POE ETH (B)
Product type Serial server, Modbus gateway, MQTT gateway
Primary function Realize the bidirectional transparent transmission function of RS232/485/422 to Ethernet
Communication interface RS232/485/422 × 1, Ethernet port × 1
Power supply Screw terminal DC 6~36V or PoE network port
Isolation protection Power isolation, signal isolation protection
Communication interface
Ethernet PoE Ethernet port, support IEEE 802.3af standard
10 / 100M self-adaptive RJ45 interface, 2KV surge protection
Serial port Isolated RS232/485/422
Serial parameters
Baud rate 300 ~ 115200 bps
Parity bit none, odd parity, even parity, mark, space
Data bits 5 ~ 9 bits
Flow Control no flow control
Software
Protocol ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration method PC configuration, WEB browser, device management function library
Communication method TCP/IP direct communication, virtual serial port mode
Operating mode TCP server, TCP client (TCP server also coexist), UDP, UDP multicast
Other
Operating temperature -40℃ ~ 85℃
Humidity range 5% ~ 95% relative humidity
Dimensions L × W × H: 88.7 × 64.5 × 24.2 mm





Primary function

bi-directional transparent data transmission between RS232/485/422 and Ethernet


Resources & Services

Wiki: www.waveshare.com/wiki/RS232/485/422_TO_POE_ETH_(B)

Three Different Interfaces

Onboard RS232 / 485 / 422 Interfaces, Suitable For More Application Scenarios



Ethernet Port To RS232/485/422

The Ethernet port can send data to three serial ports at the same time



RS232 / 485 / 422 To Ethernet Port

Only one of the RS232, RS485, and RS422 can send data to the Ethernet port at the same time




Multi Methods For Power Supply

Support PoE Ethernet port power supply*, Suitable for IEEE 802.3af PoE standard
Support Screw Terminal and DC Power Port for Power Supply, DC 6~36V
Wide Voltage Range Input


* This function is only available on the PoE version




Rail-mount support

easy to combine multi rail-mounted serial server together, more freely



Modbus gateway support

suitable for Modbus networking upgrade, Can Be Used With specific Configuration Software



Multi communication modes

supports TCP server / TCP client / UDP mode / UDP multicast

RS232-485-422-TO-POE-ETH-B-details-9.jpg RS232-485-422-TO-POE-ETH-B-details-11.jpg



MQTT/JSON to Modbus

more flexible conversion between different protocols


When used as MQTT gateway, the devices can upload serial data to MQTT server by MQTT protocol through transparent transmission, supported servers including Baidu Cloud MQTT, Alibaba Cloud MQTT, China Mobile OneNet, etc. The acquired Modbus RTU or non-standard serial data can be parsed into JSON format and packaged into MQTTdata packet for uploading.

When used as JSON data acquisition gateway, the devices can be connected to data acquisition instruments through RS485 connection, then acquire data automatically, convert the data into JSON format, and finally post it to server. The acquired data supports Modbus RTU 645 instrument 97 version, 645 instrument 07 version, as well as sorts of non-standard RS485 protocols. The uploaded data format can be configured via host, and the JSON upload protocol can be MQTT protocol, HTTP POST protocol, HTTP GET protocol, and so on.



Multi hosts roll-polling support

Different network devices will be identified and responsed respectively,
No more crosstalk issue while communicating with multi network devices.




User-defined heartbeat/registration packet

Easy for cloud communication and device identification



NTP protocol support

getting network time info for serial output or data upload




Multi configuration methods

supports Web browser configuration, obtaining dynamic IP via DHCP,
DNS protocol connected domain server addre
ss



Multiple Protection, Safe And Stable

Onboard power supply and signal isolation, it can provide stable isolation voltage with high reliability and strong anti-interference. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock proof performance.



Aluminium Alloy Enclosure

Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation
Solid And Durable, Fashion And Good Hand Feeling



Interface introduction



Outline dimensions


Support Batch Customization

Support software and hardware customization
Including hardware interface, LOGO, label, case and web page, etc.




Package Content

The power supply is not included, it is recommended to use with a 12V Power Adapter

  1. RS232/485/422 TO POE ETH (B) x1
COM03026
