Industrial RS232 / RS485 to Ethernet Converter

: COM03019
€43.01

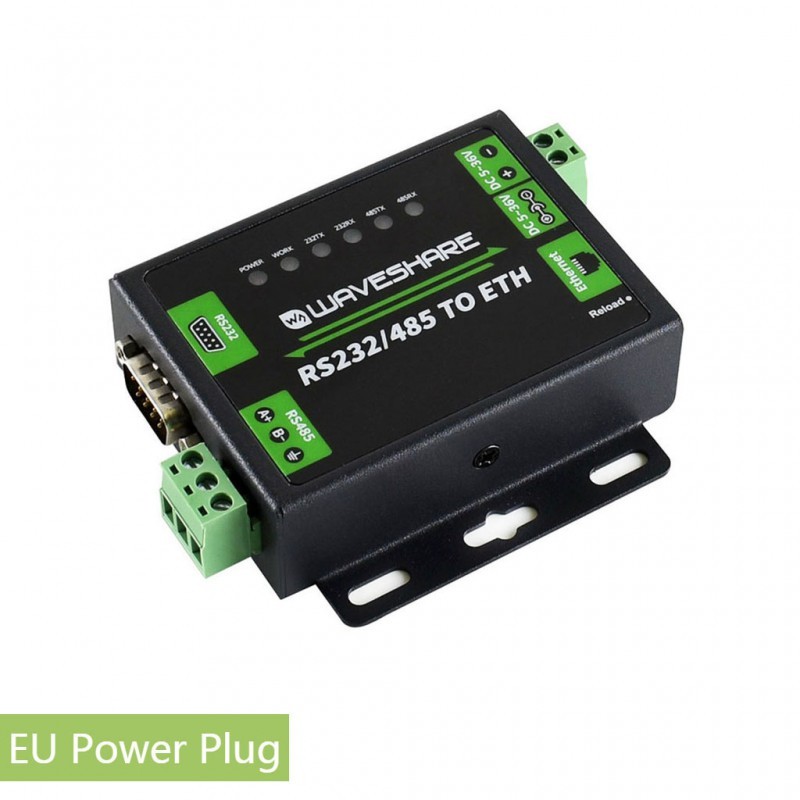

The RS232/485 TO ETH is an industrial RS232/RS485 to Ethernet converter, which allows bi-directional transparent data transmission between RS232/RS485 and RJ45 port Ethernet, even at the same time, it can be configured via webpage.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Comes with US plug power adapter. More options for the power plug: USEU

Overview

The RS232/485 TO ETH is an industrial RS232/RS485 to Ethernet converter, which allows bi-directional transparent data transmission between RS232/RS485 and RJ45 port Ethernet, even at the same time, it can be configured via webpage.

Features

  • M4 series 32-bit ARM processor with up to 120MHz frequency, fast speed, stable and reliable
  • 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
  • Both RS232 and RS485 interface, allows to work independently at the same time, without interfering each other
  • Configurable baudrate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space
  • Multi indicators, for monitoring communicating and working status
  • Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
  • Supports Modbus, suit for industrial application
  • Supports Websocket, allows bi-directional transparent data transmission with RS232/RS485 port via webpage directly
  • Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software
  • Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data
  • Supports customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can be distinguished
  • Supports customized webpage, allows user to customize the module configuration page
  • Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change
  • KeepAlive mechanism, detects broken connection, auto re-connecting
  • Supports time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time
  • Supports DNS domain name resolution, configurable DNS server
  • Supports DHCP, auto-obtained IP or static IP
  • Firmware is upgradable via the network
  • Restore to factory settings via software and/or hardware
  • Comes with default MAC address, which is customizable
  • Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
  • Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.

Specifications

  • Ethernet:
    • Connector: 4-pin RJ45
    • Communication rate: 10/100Mbps
    • Interface protection: 2KV electromagnetic isolation
    • Protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client, Websocket
    • TX cache: 16Kbyte
    • RX cache: 16Kbyte
  • RS485/RS232:
    • Connector:
      • RS485: screw terminal (A+, B-, GND)
      • RS232: DB9 male
    • Data bit: 5bit, 6bit, 7bit, 8bit
    • Stop bit: 1, 2
    • Parity bit: None, Odd, Even, Mark, Space
    • Baudrate: 600bps~230.4Kbps
    • TX cache: 2Kbyte
    • RX cache: 2Kbyte
    • Hardware flow control: RTS/CTS
    • Interface protection:
      • RS485: 2KV ESD protection, lightning-proof, anti-surge, over-current protection
      • RS485 pull up/down registers: 2.2KΩ
  • Power:
    • Power supply: 5.0~36.0V (5V recommended)
    • Operating current: 86.5mA (@5V)
    • Power consumption: <1W
    • Interface protection: reverse-proof, ESD protection, anti-surge
  • Environment:
    • Operating temperature: -40~85°C
    • Storage temperature: -40~105°

Dimensions

RS232/485 TO ETH dimensions

Development Resources

Wiki : www.waveshare.com/wiki/RS232/485_TO_ETH

Selection Guide

COMPARISONUART TO ETHRS485 TO ETHRS232/485 TO ETH
Processor Cortex-M0 Cortex-M0 Cortex-M4 (up to 120MHz frequency)
Ethernet RJ45 (10/100Mbps self-negotiation)
Protocol: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client
Cache: TX 6Kbyte, RX 4Kbyte Cache: TX 16Kbyte, RX 16Kbyte
Serial UART RS485 RS232+RS485 (allow to work at the same time)
Baudrate: 600bps~460.8Kbps Baudrate: 600bps~230.4Kbps
Hardware flow: NOT supported Hardware flow: supported
Data bit: 5, 6, 7, 8
Stop bit: 1, 2
Parity bit: None, Even, Odd, Space, Mark
Cache: RX 800byte Cache: TX 2Kbyte, RX 2Kbyte
Framing condition: 4 byte time interval, or 400 byte in length Framing condition: 4 byte time interval, or customizable 0~1460 byte in length
Features customized heartbeat packets, customized registration packets, customized webpage, RFC2217-like protocol, KeepAlive, timeout auto reboot, short connection, firmware upgrade via network
    Modbus gateway, Websocket (webpage to serial)
Working Modes TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client
Client Count on TCP Server mode, customizable 1~16 Clients on TCP Server mode, supports 2-ch Socket, 8 Clients per ch
Configuration Built-in webpage, Host computer config software, Serial commands
Interface Protection Power: reverse-proof, ESD protection, anti-surge
Ethernet: 1.5KV electromagnetic isolation
  RS485: 2KV ESD protection, 2.2KΩ pull up/down registers
    lightning-proof, over-current protection
Power Supply 3.3V/5V 5~7V 5~36V
Operating Current 150mA@5V 110mA@5V 86.5mA@5V
Temperature Operating Temperature: -25~75℃  Operating Temperature: -40~85℃
Storage Temperature: -40~105℃
Dimensions 50.5mm × 22.6mm × 15mm 70mm × 63.6mm × 25mm 82.8mm × 85.7mm × 25mm

Package Contente

Weight: 0.54 kg

  1. RS232/485 TO ETH x1
  2. 5V power adapter x1
  3. Ethernet cable x1
  4. Male-to-Female serial cable x1
  5. Female-to-Female serial cable x1


COM03019
