FT232 USB UART Board (micro)
  • FT232 USB UART Board (micro)
  • FT232 USB UART Board (micro)
  • FT232 USB UART Board (micro)
  • FT232 USB UART Board (micro)
  • FT232 USB UART Board (micro)

FT232 USB UART Board (micro)

: COM09005
€7.72
Quantity

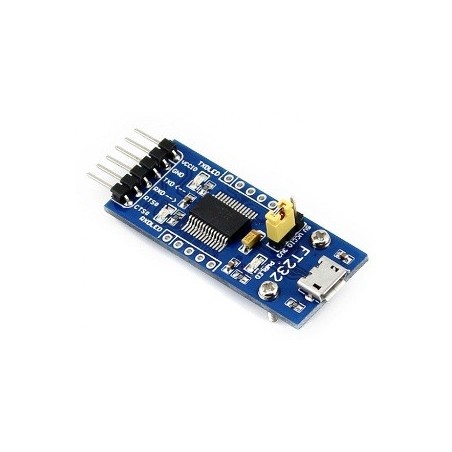

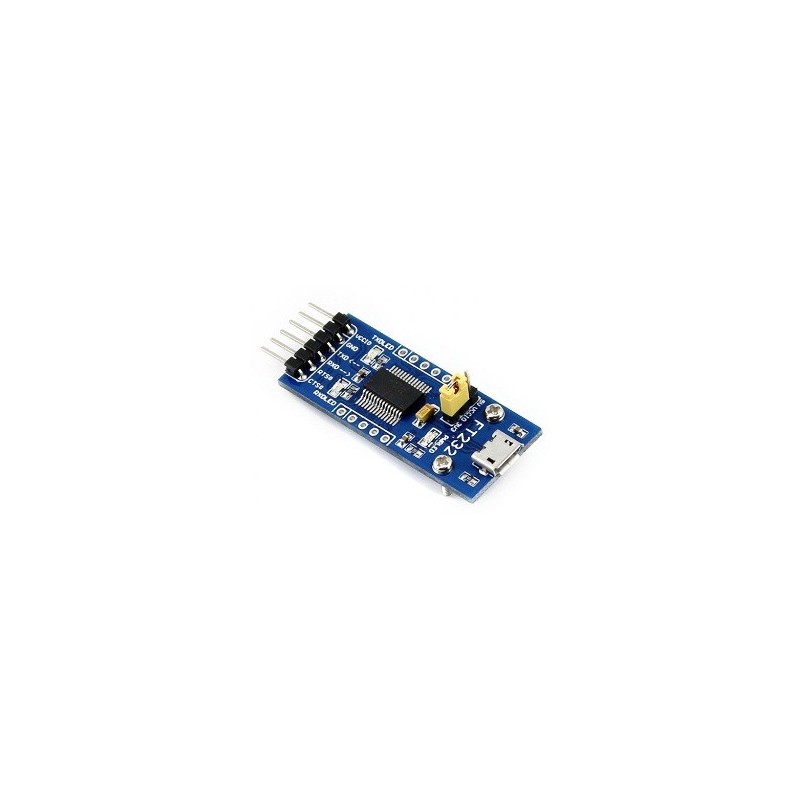

DESCRIPTION:

USB TO UART solution with USB micro connector

Features:

  • Original FT232RL onboard
  • Supports Mac, Linux, Android, WinCE, Windows 7/8/8.1/10...
  • 3 power mode : 5V output, 3.3V output, or powered by target board (3.3V-5V)
  • 3 LEDs: TXD LED, RXD LED, POWER LED
  • Functional Pins
    • TXD, RXD, RTS#, CTS# : connected to the onboard soldered pinheaders
    • The other Pins : accessable on the drill holes (separate pinheaders are also provided for easily connecting to user system, the pitch is compatible with bread boards)

How to Use:

In the case of working with a MCU:

  • VCCIO ↔ 3.3V or 5V output (the module is powered from USB, onboard jumper should be shorted to 3.3V or 5V)
  • GND ↔ GND
  • TXD ↔ MCU.RX (signal direction: MCU.RX << FT232 << PC.TX)
  • RXD ↔ MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)
  • RTS ↔ MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS)
  • CTS ↔ MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)

Dimension:

Development Resources:

Wiki : www.waveshare.com/wiki/FT232_USB_UART_Board_(micro)

COM09005
