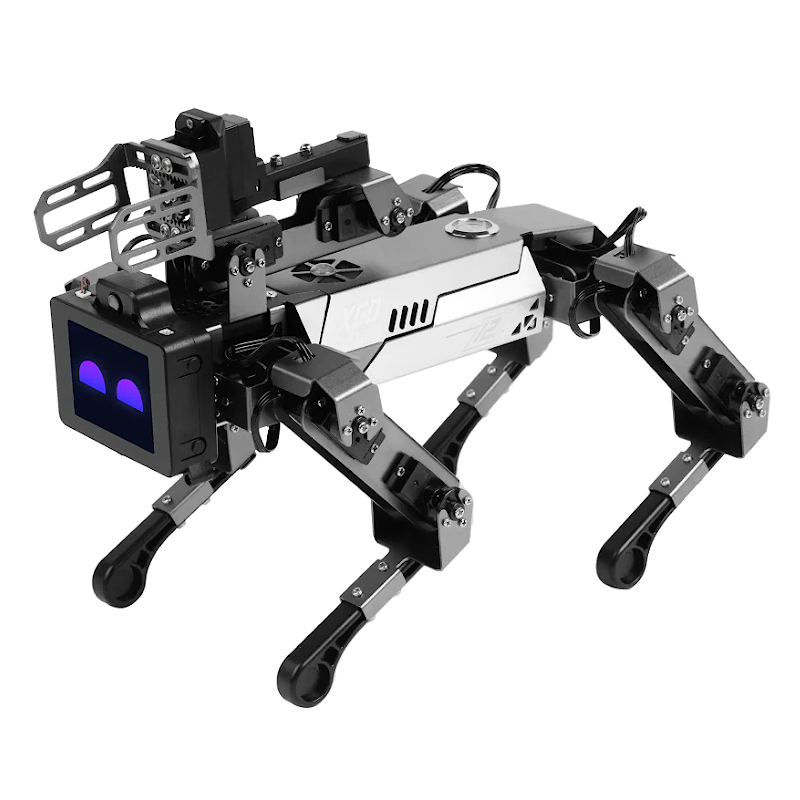

XGO V2 CM4: AI dog robot with 15 DOFs, Arm, Display Touch for Raspberry CM4 (included) - ELECFREAKS EF08290

:PCO01195
€730.89
€649.59 Save €81.30

ELECFREAKS CM4 XGO-Lite Robot Dog Kit V2 for Raspberry Pi is a desktop-sized AI quadruped robot with 12 degrees of freedom and a gripper powered by Raspberry CM4 for AI edge computing applications, which can achieve omnidirectional movement, six-dimensional posture control, posture stability, and multiple motion gaits.

If you want to know more about this product, please check the Wiki Page.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

ELECFREAKS CM4 XGO-Lite Robot Dog Kit V2 for Raspberry Pi is a desktop-sized AI quadruped robot with 12 degrees of freedom and a gripper powered by Raspberry CM4 for AI edge computing applications, which can achieve omnidirectional movement, six-dimensional posture control, posture stability, and multiple motion gaits.








Documents

Wiki Page





Specification

Item

Parameter

Battery

Built-in 7.4V 2500mAh lithium batteries

The output of the Charger

8.4V 1A

Battery Life

120min

Materials of the Body

Aluminum alloy

Materials of the Limbs

ABS

Master Control IC

ESP32

Program Methods

EBlocky & Python & Ros

APP Control

Support

2.4G Remote Control

Support

Dimensions(L*W*H)

250mm x 145mm x 170mm (Standing state)

Net Weight

620g

Gross Weight

1.8Kg



Case Dimensions

320mm x 145mm x 1170mm

Case Type

Exquisite Case

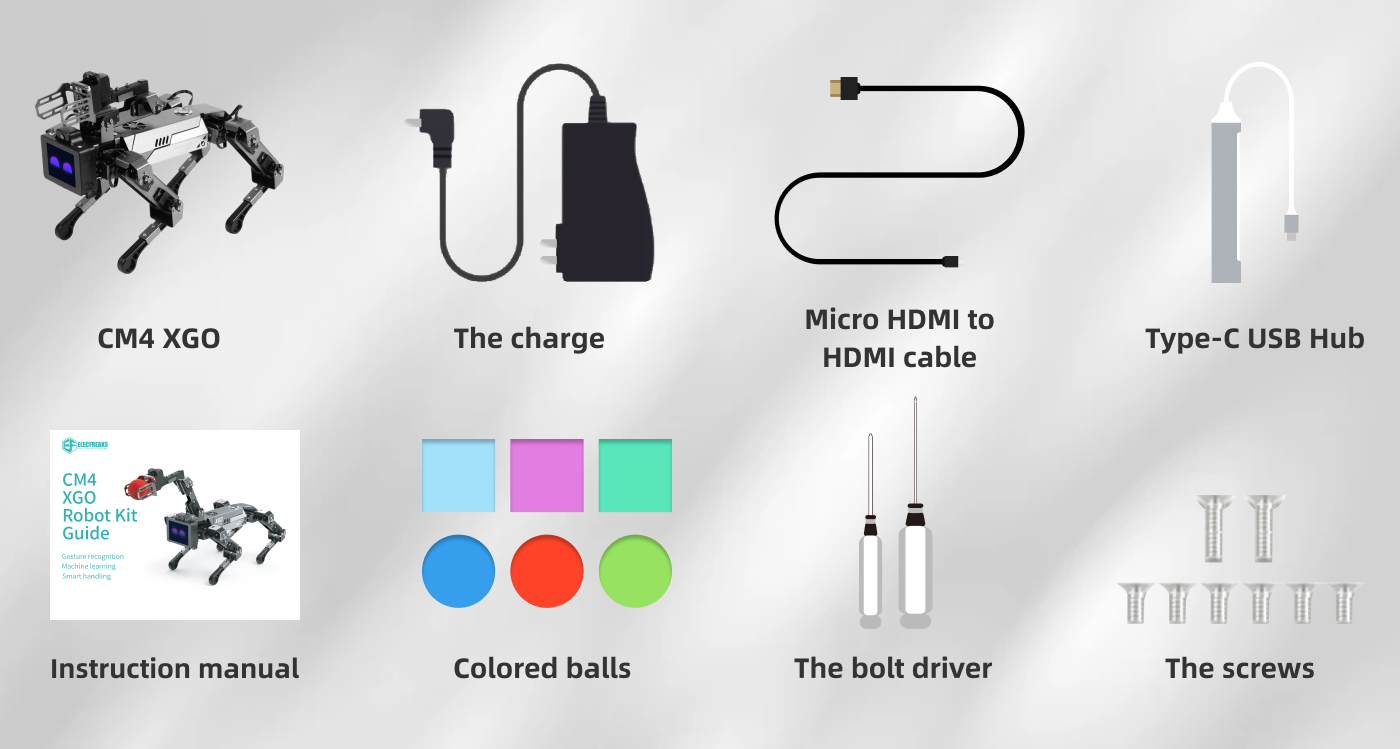

Packing List

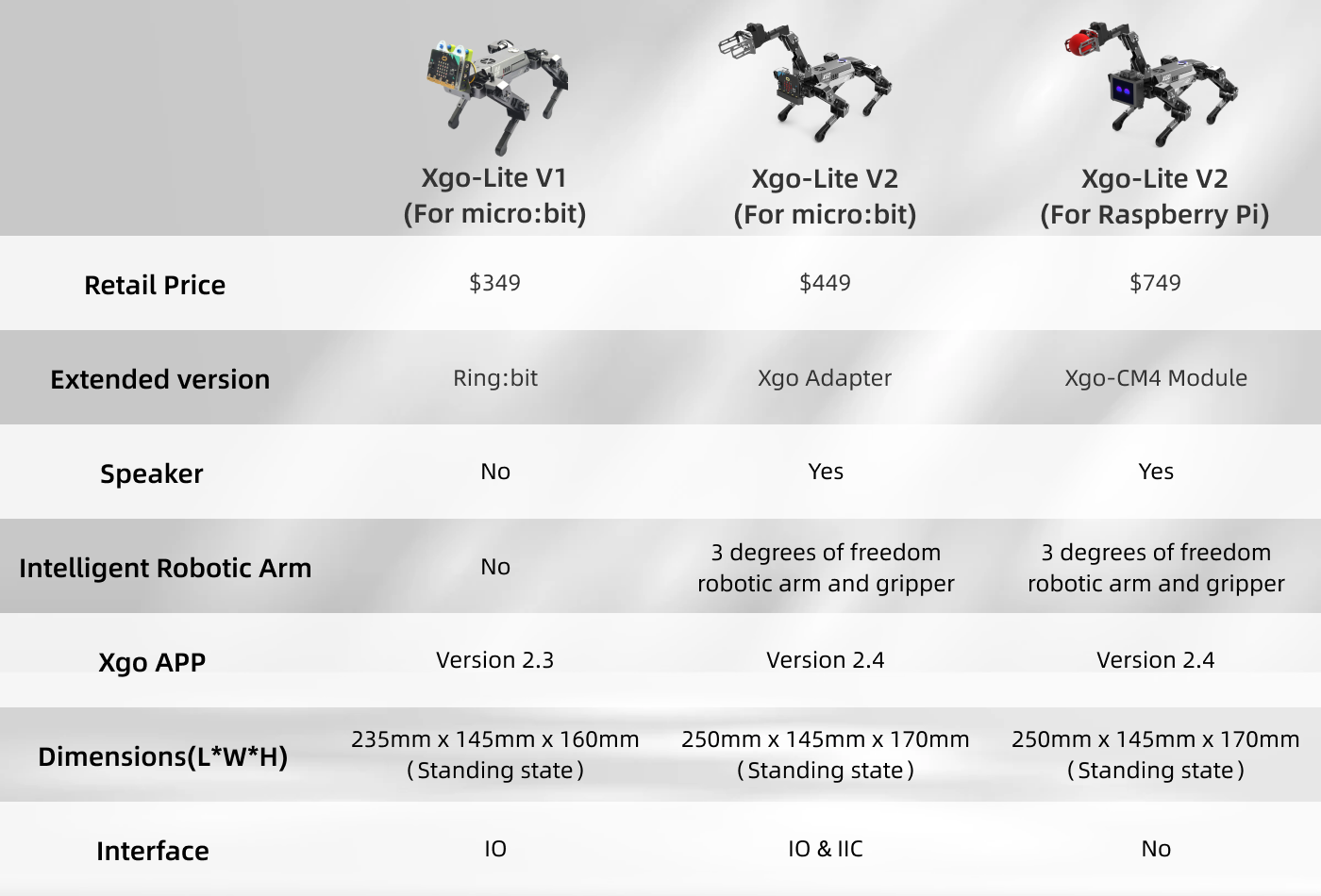

Comparison





Built-in CM4 Module







Features

15 Degrees of Freedom

Equipped with high-performance serial servos, 15 active joints, and kinematics decoupling, ELECFREAKS CM4 XGO Robot Dog Kit For Raspberry Pi truly captures the movement and posture of quadruped animals. It can perform omnidirectional motion by moving forward and backward, left and right freely, with a smooth gait in any direction.






Self-Stabilization

ELECFREAKS CM4 XGO Robot Dog Kit For Raspberry Pi also has a 6-IMU (Inertial Measurement Unit) system. Using the attitude data obtained from the IMU and closed-loop control, ELECFREAKS CM4 XGO Robot Dog Kit For Raspberry Pi can stay stabilized regardless of surface movement.






Intelligent Robotic Arm

The powerful mechanical arm, with three free joints, can grab more than half of its own weight.







Advanced AI Interaction





Demonstrating Mode







Application

Dance with Music





Gesture Recognition



Color Block Tracking





Play Right Out of the Box

One-Button Start





Exclusive App Control
