XGO V2: AI dog robot with 15 DOFs w/ Arm for microbit (without micro:bit Board) - ELECFREAKS EF08289

: PCO07113
€405.69

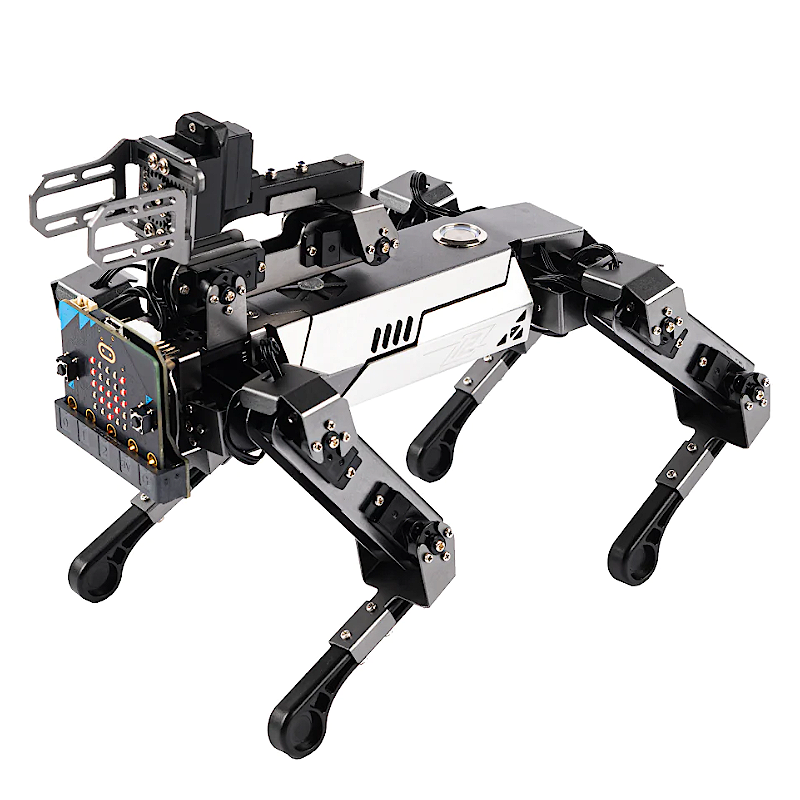

XGO Robot Kit V2 is a desktop Al quadruped robot dog with fifteen degrees of freedom. Combining bionics and artificial intelligence, it has powerful functions while maintaining a small body. The XGO Robot Kit V2 is equipped with a robotic arm and end grippers on the back, which can flexibly pick up and carry objects

If you want to know more about this product, please check the Wiki Page.

Note: Micro:bit board is not included,

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

ELECFREAKS XGO Robot Kit V2 for micro:bit is a bionic quadruped robot dog kit specially designed for artificial intelligence education for teenagers. It can be combined with the micro:bit to perform graphical programming on MakeCode, which is more suitable for teenagers to learn to program. With 15 DOF, it can perform and interact like a real pet dog, as well as pinch and carry with its robotic arm, allowing children to learn mechanics, electronics, programming, and AI as they play with it, and getting them prepared for the future life of AI.





Documents

Wiki Page



Specification

Item

Parameter

Battery

Built-in 7.4V 2500mAh lithium batteries

The input of the Charger

100-240V 50~60Hz

The output of the Charger

8.4V 1A

Battery Life

120min

Materials of the Body

Aluminum alloy

Materials of the Limbs

ABS

Master Control IC

ESP32

Program Methods

MakeCode、Python

APP Control

Support

2.4G Remote Control

Support

Dimensions(L*W*H)

250mm x 145mm x 170mm (Standing state)

Net Weight

500g

Gross Weight

1.8Kg



Case Dimensions

320mm x 145mm x 126mm

Case Type

Exquisite Case




Packing List (Micro:bit not included!)

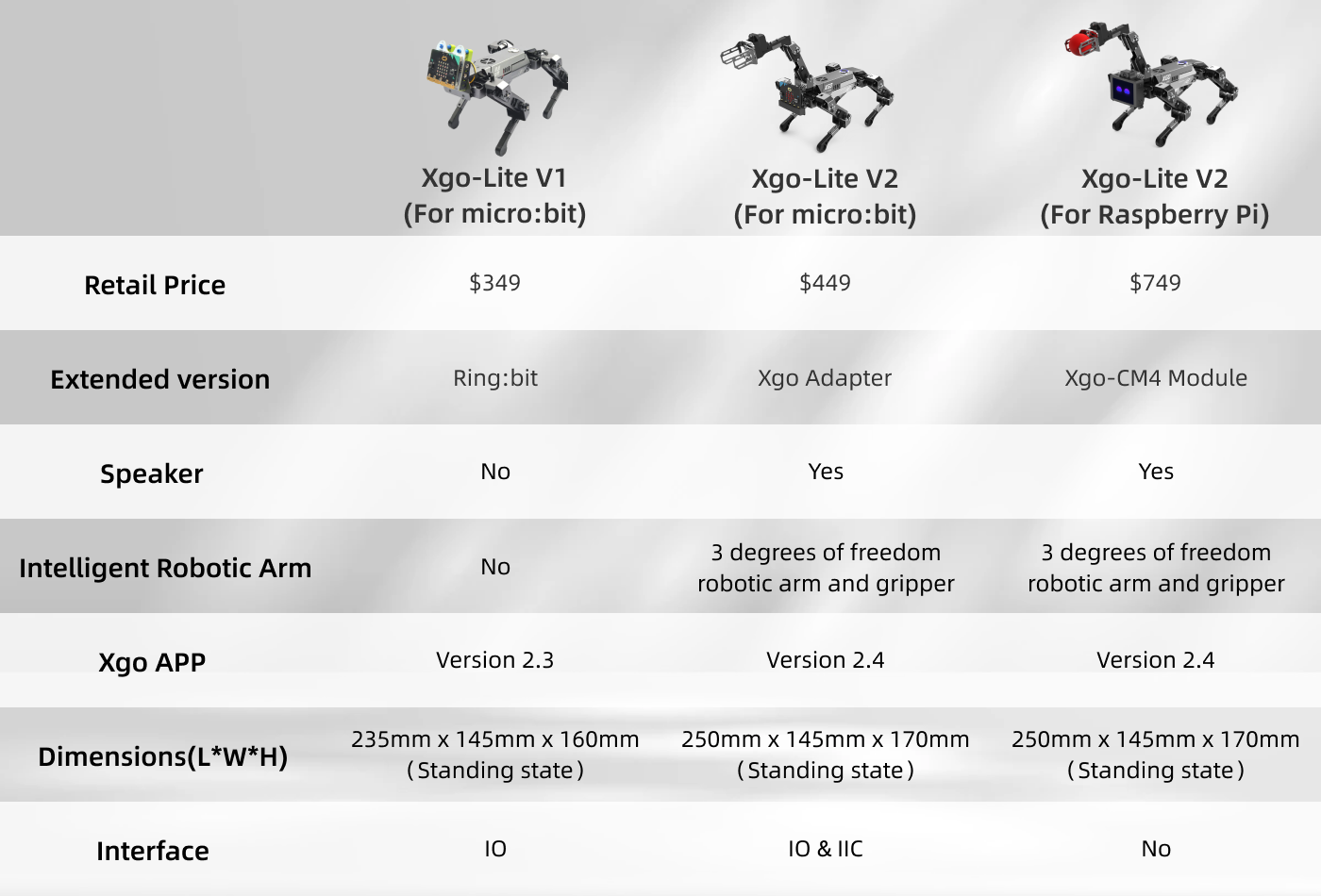

XGO-Lite V1 vs XGO-Lite V2 (For Micro:bit) vs XGO-Lite V2 (For Raspberry Pi)





15 DOFS







Intelligent Robotic Arm

XGO Robot Dog Kit V2 for micro:bit is equipped with a 3-axis robotic arm, which can realize intelligent gripping, pushing, and handling.





Built-in speaker, IMU sensor





Exclusive Expansion Board





Multiple Application Methods

Program the Joystick:bit to control XGO V2 through the Makecode platform



Use the self-developed APP to control XGO V2
