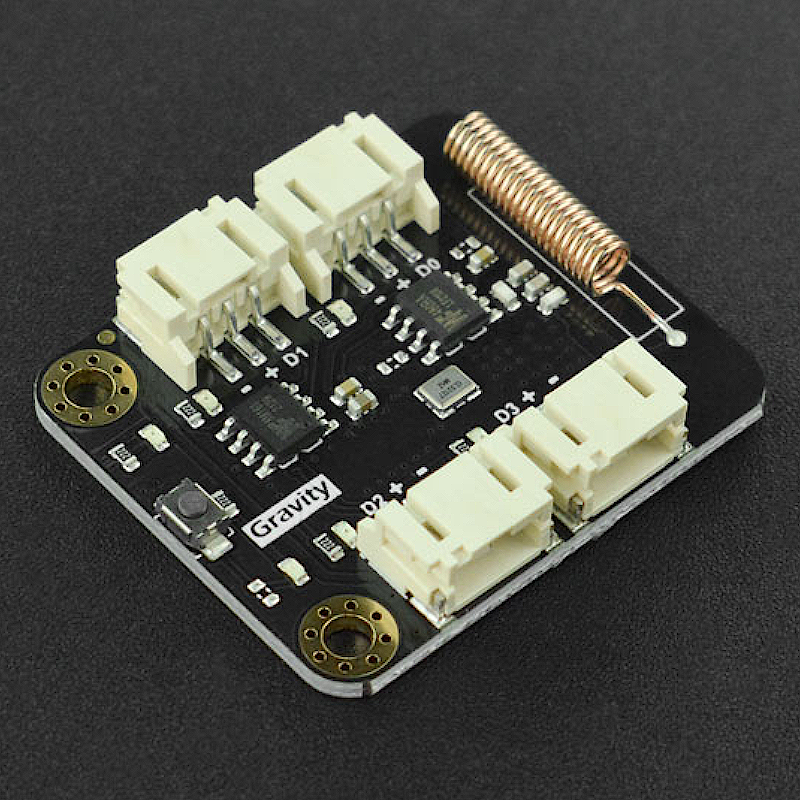

Digital Wireless Receive Switch (433MHz) - DFRobot TEL0142
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Introduction
When building a project that needs to transmit some simple signals wirelessly, have you been bothered by the any of the following problems: Bluetooth's cumbersome AT command configuration and high cost, Wifi's signal limitations and high power consumption, IR emission angle and inability to penetrate through the walls.
This Gravity: Digital Wireless Swtich might be just what you need! Based on 433Mhz RF communication technology, the module includes a transmitter and receiver and features the advantages of simple operation,strong penetration, and ultra-low standby power consumption. It is able to transmit digital signals and compatible with any controller that can read and write digital signals. These modules are used on a wide variety of applications that require wireless control, such as, remote control, wireless doorbell, wireless signal transmission, upgrading wired buttons to wireless buttons, etc.
Note: The transmitter module and the receiver module each ship with 1 Gravity: digital sensor cable by default. If you need more, please purchase separately (CAB01029)
433MHz is a certification-free frequency band in most parts of the world, please pay attention to local policies and laws and regulations when using it
Board Overview
Features
-
15 button states of the transmitter
-
Pairing function for the receiver
-
Support one-transmit and multiple-receive
-
Support one-receive and multiple-transmit
-
Multiple working modes: inching, latching, self-locking, and interlocking
Applications
-
Remote control
-
Wireless doorbell
-
Wireless signal transmission
-
Upgrading wired buttons to wireless buttons,
Specification
-
Working voltage: 3.3~5.0V DC
-
Stable transmission distance: 15M indoor
-
Transmitter emission current: 10mA@5V
-
Transmitter standby current: <10uA@5V
-
Receiver emission current: 6mA@5V
-
Receiver standby current: 3mA@5V
-
Input signal: digital
-
Number of interfaces: 4
-
Working frequency: 433Mhz
-
Transmitter size: 47x32mm
-
Receiver size :37x32mm
-
Mounting hole size: inner diameter 3.1mm/outer diameter 6mm
Documents
Shipping List
-
Gravity: Digital Wireless Switch x1
-
Gravity: Digital Sensor Cable x1
