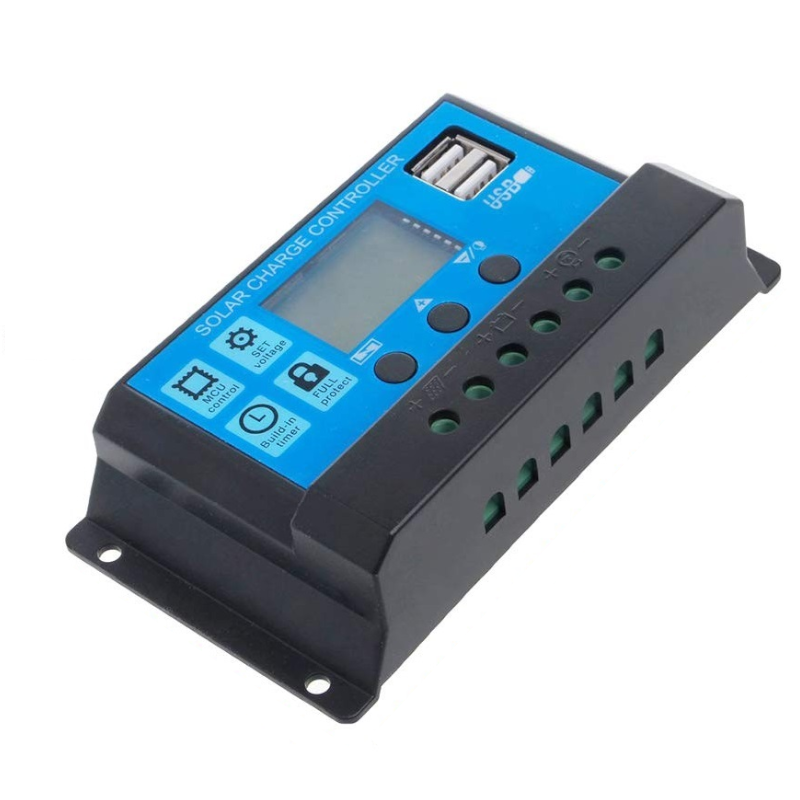

Solar Controller PWM 12/24V 30A


Built-in short-circuit protection, open-circuit protection, reverse protection, over-load protection.


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.


  1. Built-in industrial micro controller.
  2. Big LCD display,with 5V USB charger.
  3. PWM charge management.
  4. Build-in short-circuit protection ,open-circuit protection,reverse protection,over-load protection.
  5. Dual mosfet Reverse current protection,low heat production.



Battery Voltage 12V/24V auto
Charge current 30A
Discharge current 10A
Max Solar input <50V
Buck charge 14.5V
Float charge 13.7V
Discharge stop 10.7V
Discharge reconnect 12.6V
USB Output 5V/2A
Self-consume <10mA
Control mode PWM
Operating temperature -35~+60℃
Size/Weight 133*70*32mm/150g



  1. User Manual
