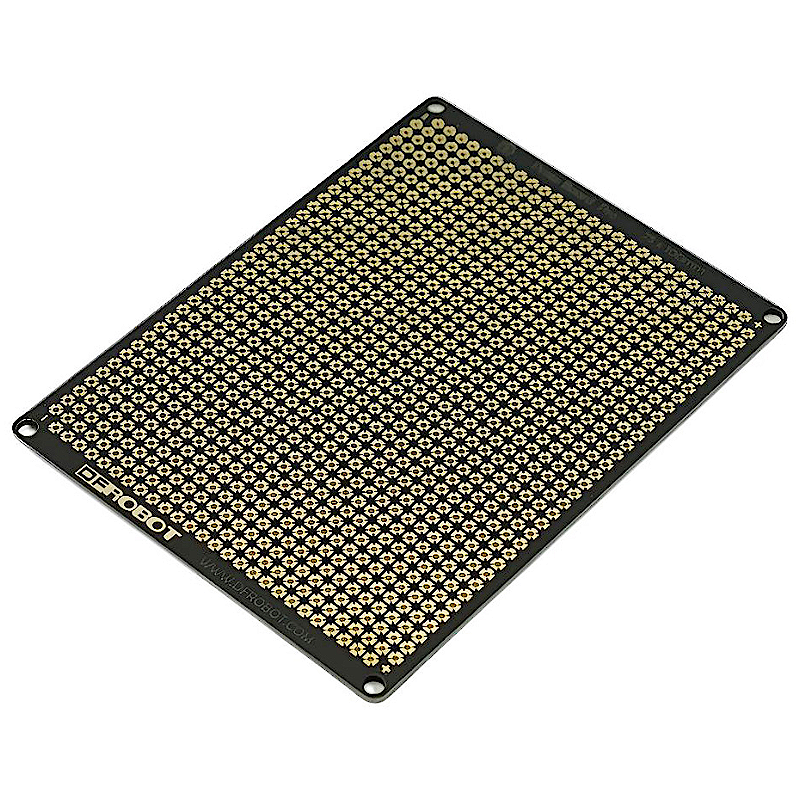

ProtoBoard Pro - Double Sided (100x75mm)

: CEL05055
€2.60
Tax included
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Introduction

This is a very basic double sided prototyping board with standard 0.1" spacing with 4x3mm (0.16x0.12") holes for mounting. The leaf pads makes you great for quickly prototyping stackable circuits. You can not only solder DIP components but also solder SMD components.

You can solder the digital & analog IO pins and plug them into Arduino, so that the proto board can directly communicate with Arduino like a simple shield. See the following picture, a simple light water project with Arduino.

Specification

  1. Compatiblity:DIP & SMD components

  2. Mounting Holes:3x4mm (0.12x0.16")

  3. Size:100x75mm (3.94x2.95")



Documents



Shipping List

  1. ProtoBoard Pro -Double Sided x1
