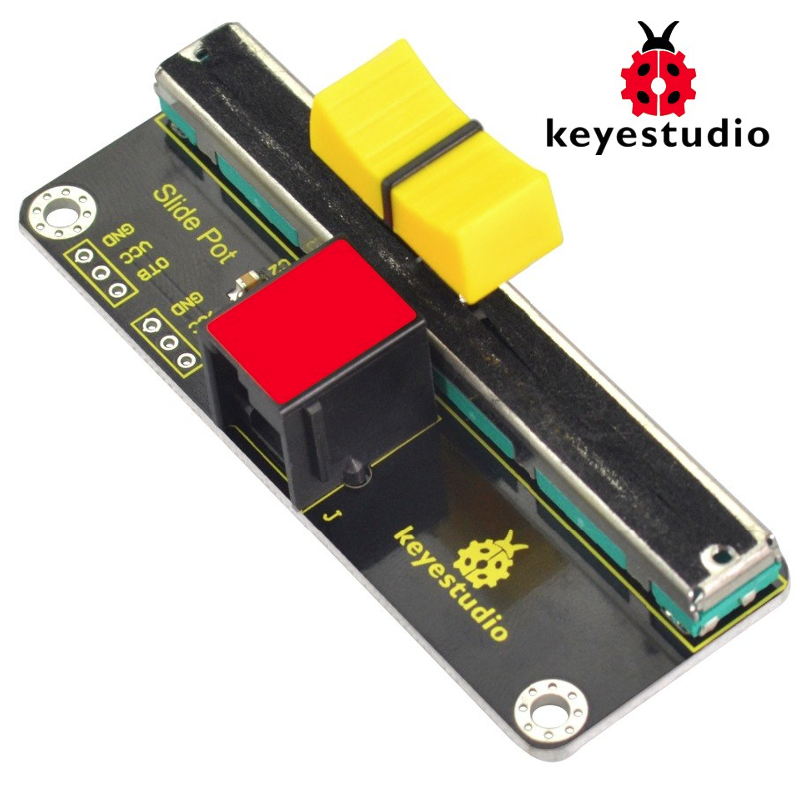

Slide Potentiometer Module - RJ11 EASY plug - Keyestudio KS0373

:CEL06024
€3.21
Tax included

The EASY plug slide potentiometer uses high-quality sliding appliances for stable and reliable performance. It is a dual analog output that outputs a 0-VCC analog voltage signal.
The module pins are extended into Registered jack, so you can easily connect it to EASY Plug control board using a RJ11 cable.

If you want to know more about this product, please check the Wiki  Page

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Overview

The EASY plug slide potentiometer uses high-quality sliding appliances for stable and reliable performance. It is a dual analo g output that outputs a 0-VCC analo g voltage signal.

The module pins are extended into Registered jack, so you can easily connect it to EASY Plug control board using a RJ11 cable.

There are 6 pad interfaces on the module. So you can solder two 3pin headers with a pitch of 2.54mm on the module.

It can be used to connect with other MCUs. The signal terminal outputs two analo g values. The sum of the two analo g values is 1023.

Note: this module should be used together with EASY plug control board.



ks0373-1ks0373-6ks0373-2ks0373-3ks0373-4ks03723-5
