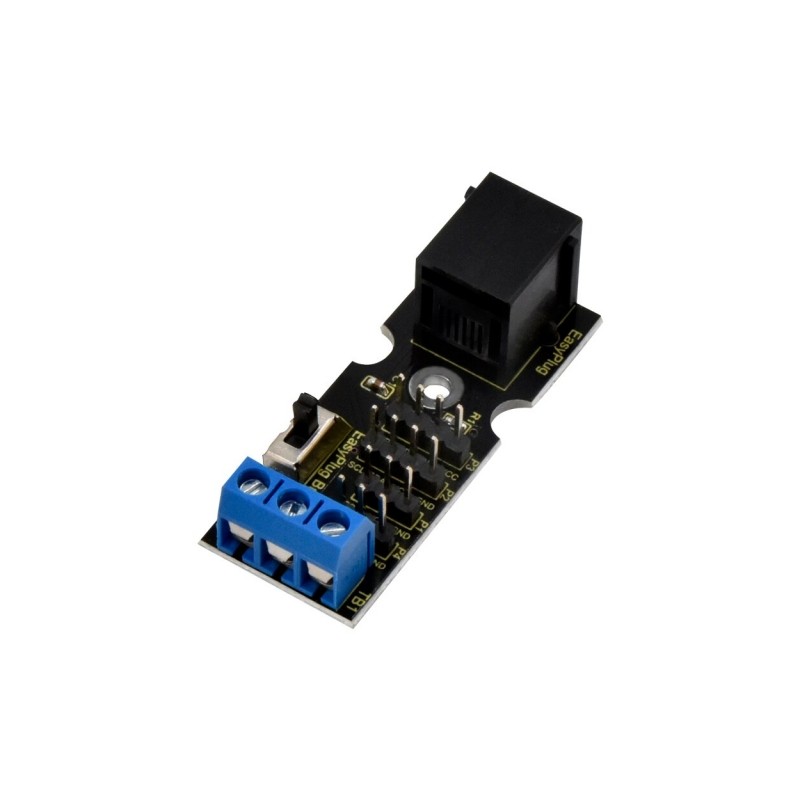

Keyestudio EASY Plug RJ11 6P6C Breakout Board Shield for Arduino

:CON02023
€2.24
Tax included

If the sensors/modules you use are not equipped with the EASY plug interface (RJ11 6P6C), it will cause you trouble to connect to keyestudio EASY plug Control Board V2.0.

It communicates with EASY plug Control Board V2 via SPI pin. It breaks out the power pins, digital pins of 2.54mm pitch and terminal block interface.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Overview

If the sensors/modules you use are not equipped with the EASY plug interface (RJ11 6P6C), it will cause you trouble to connect to keyestudio EASY plug Control Board V2.0.

We now specially design this EASY Plug Breakout board.

It communicates with EASY plug Control Board V2 via SPI pin. It breaks out the power pins, digital pins of 2.54mm pitch and terminal block interface.

By programming, can realize the serial port communication, IIC communication and single IO pin signal control.

The breakout board comes with a slide switch.

When turn the slide switch to 0 position, SS pin connects to GND, microcontroller CAN’T control the SS pin level! So CAN’T control the serial port communication and IIC communication!

When turn the slide switch to 1 position, SS pin suspends, microcontroller is able to control the SS pin level! So can realize the normal signal extension!

The EASY Plug Breakout board comes with a 3.2mm fixing hole.

Technical Details

Interface: 2.54mm pins ; EASY plug (RJ11 6P6C )

Fixing hole diameter:3.2mm

Dimensions:49*18*16mm

Weight:8.9g

Environment attribute:ROHS

Interface Table

P3

VCC

5V

P2

GND

GND

GND

GND

VCC

5V

RXD

SS(D10)

SDA

SS(D10)

TXD

MOSI(D11)

SCL

MISO(D12)

P1

GND

GND

P4

GND

GND

VCC

5V

VCC

5V

SS

SS(D10)

SCK

SCK(D13)

Turn the slide switch to the 0 position, SS pin connect to GND;

Turn the slide switch to the 1 position, SS pin connect to D10.

HTB1gDvMe.WF3KVjSZPhq6xclXXab.jpgHTB1iKYMe3aH3KVjSZFjq6AFWpXa7.jpgHTB19ozLe21H3KVjSZFHq6zKppXai.jpgHTB1lEnOe.GF3KVjSZFvq6z_nXXaF.jpg
