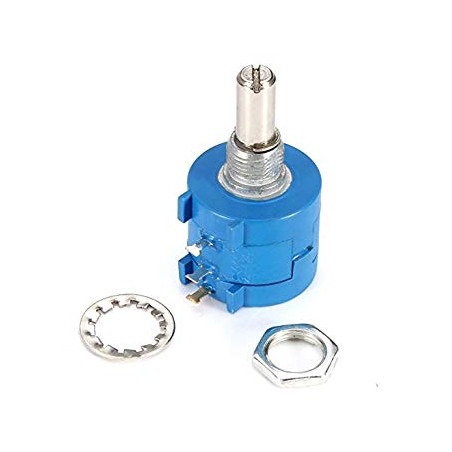

Multiturn Precision Potentiometer 10K 2W ( 3590S-2-103L)

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Specifications:

Resistor: 10Kohm
Turns: 10
Resistor tolerance: ± 5%
Linearity precision: ± 0.25%
Power: 2W
Total rotational angle: 3600 ± 5 °
Working temperature range: +1 ~ +125
Storage temperature: -55 - +125
Rotational life: 1,000,000 RMP
Shaft diameter: 6.35 mm
Panel mounting hole: 10 mm
