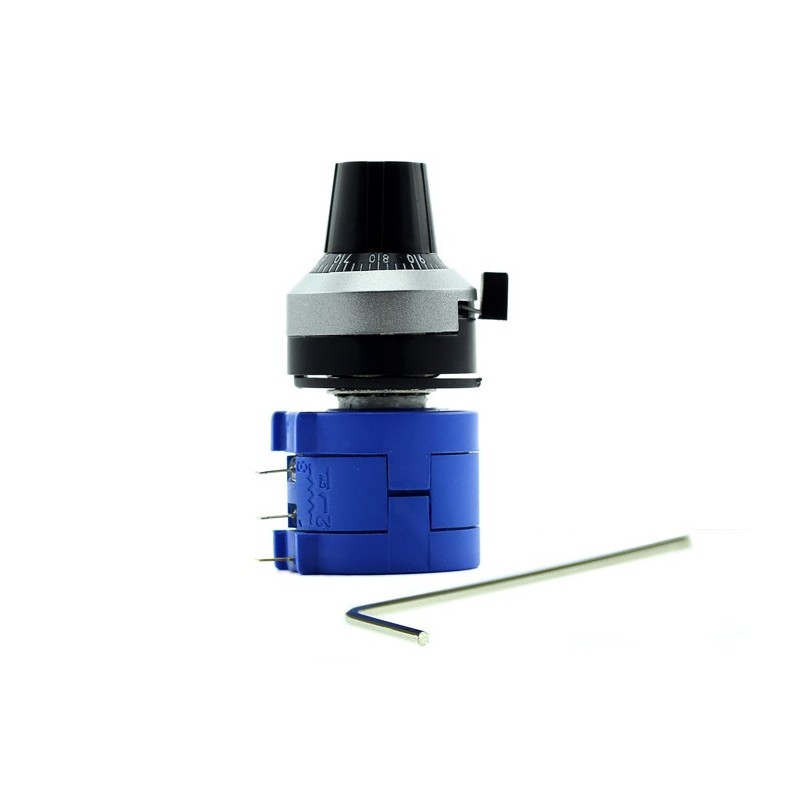

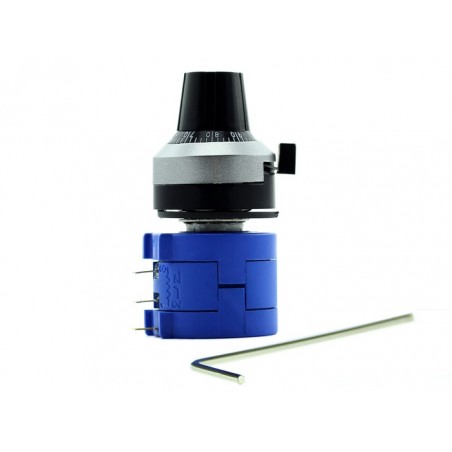

Dial-type Potentiometer(10k)

Potentiometer is one of the most useful basic components. It’s space-saving and user-friendly. You can read the actual resistance value via the straightforward knob without auxiliary instrument like multimeter. Each has been pre-calibrated. You can implement it into your circuit right out of the box.

A tiny hex wrench is included in case of recalibration.

• Straightforward
• Highly linear
• Space-saving

• Max resistance: 0 - 10KΩ
• Accuracy : ±5%
• Lin : ±0.25%
• Max mechanical angle : 3600°
• Dimensions: 46mm(height) * 22mm(diameter)
