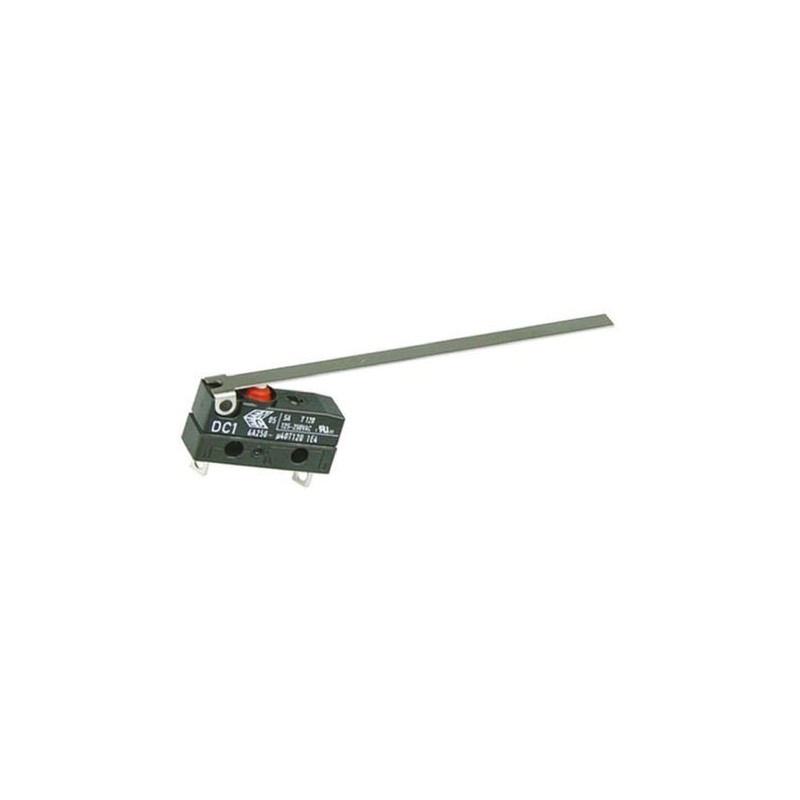

Microswitch DC1 w / 42mm articulated lever

IP67 V4 microswitches (DC1 6)


Sealed with IP67 switch
Available with various terminations, including PCB mounting, soldering, quick-connect (2.8 x 0.5 mm) or prewired (500 mm x 0.75 millimeters 2)
Housing material PET / PBT (UL 94V-0)
POM (T85); PBT actuator (T120)
Operating temperature range -40 → 120 ° C
the maximum operating temperature for the pre-wired versions 105 ° C
Ice-free lever option suitable for operation in cold damp environments where a pivot lever can freeze
Height: 11 65 mm, Width: 20 mm Depth: 6.5 mm


certificates
ENEC; UL

Specifications:

Contact Configuration SPST-NC
Contact Material Silver Alloy
Operating Temperature Range -40 → + 120 ° C
Maximum operating temperature + 120 ° C
Minimum Operating Temperature -40 ° C
Type articulated lever action
Terminal Type Welding
Rating current contact 6 A at 250 Vac
Mechanical life 1000000Operations
IP rating IP6K7
