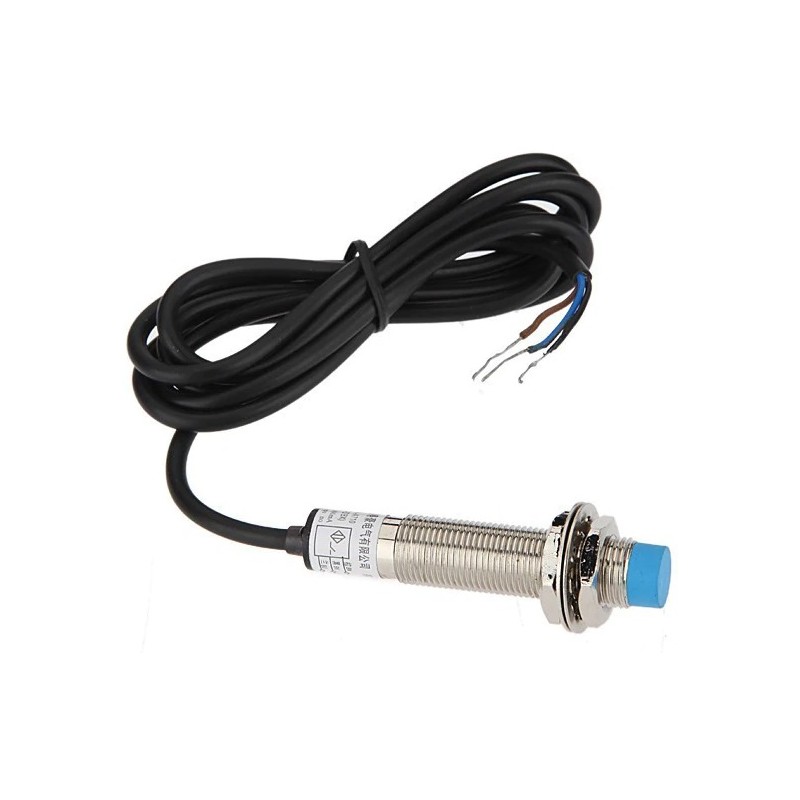

M10 Inductive Proximity Sensor PNP 6~36Vdc 0~3.6mm - LJ12A3-4-Z/BY

:SEN05057
€4.80

This is a inductive sensor, capable of detect iron base objects till 4mm.

  • Power supply: 6 – 36VDC
  • Output current: 300mA
  • Connections: 3 wires
  • Polarity: PNP
  • Detection range: até 4mm
  • Output state: NO (normaly open)
  • Cable length: 110cm
  • Sensor body length: 65mm
  • Diameter: 10mm
  • Wire color: Blue=GND | Brown=Power 6~36VDC | Black=Signal
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Ligações Arduino

SEN05057
