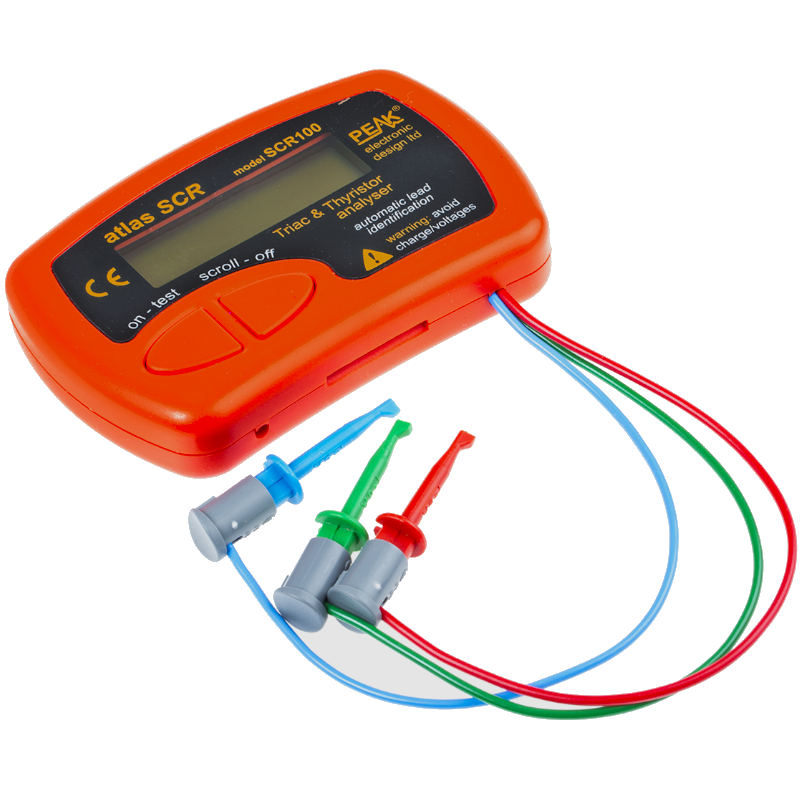

The Peak Atlas SCR100 is a dedicated semiconductor tester for SCRs (thyristors) and TRIACs. Unlike standard multimeters, it generates the required voltages and currents needed to properly test these devices.
The analyzer automatically identifies the component type, determines the terminal configuration (Gate, Anode/Cathode or MT1/MT2), measures the gate trigger voltage, and classifies the gate sensitivity. Its fully automatic operation and universal test leads make it an ideal tool for electronics engineers, technicians, repair workshops, laboratories, and industrial maintenance.
Features
- Automatic SCR and TRIAC identification
- Automatic pinout detection
- Connect test leads in any order
- Measures gate trigger voltage
- Automatically classifies gate sensitivity
- Generates the required test currents automatically
- Backlit alphanumeric LCD display
- Fully automatic operation
- Powered by a single AAA battery
Technical Specifications
| Specification | Value |
|---|
| Maximum test current |
100 mA |
| Maximum test voltage |
12 V |
| Gate test current |
100 µA to 90 mA |
| Holding current |
90 to 120 mA |
| Gate sensitivity ranges |
100 µA, 1 mA, 10 mA, 25 mA, 35 mA, 50 mA, 60 mA, 75 mA, 90 mA |
| Test pulse duration |
< 0.2 ms |
| Power supply |
1 × AAA alkaline battery |
| Dimensions |
103 × 72 × 20 mm |
Package Contents
- Peak Atlas SCR100 Analyzer
- Universal test leads (Red, Green and Blue)
- AAA battery
- User manual
Applications
- SCR (thyristor) testing
- TRIAC testing
- Electronics troubleshooting
- Industrial maintenance
- Electronics laboratories
- Product development
- Technical education
Benefits
- No need to know the device pinout before testing.
- Fully automatic component identification.
- Tests devices requiring higher gate currents than standard multimeters can provide.
- Fast, accurate and reliable measurements.
- Compact, lightweight and portable.
