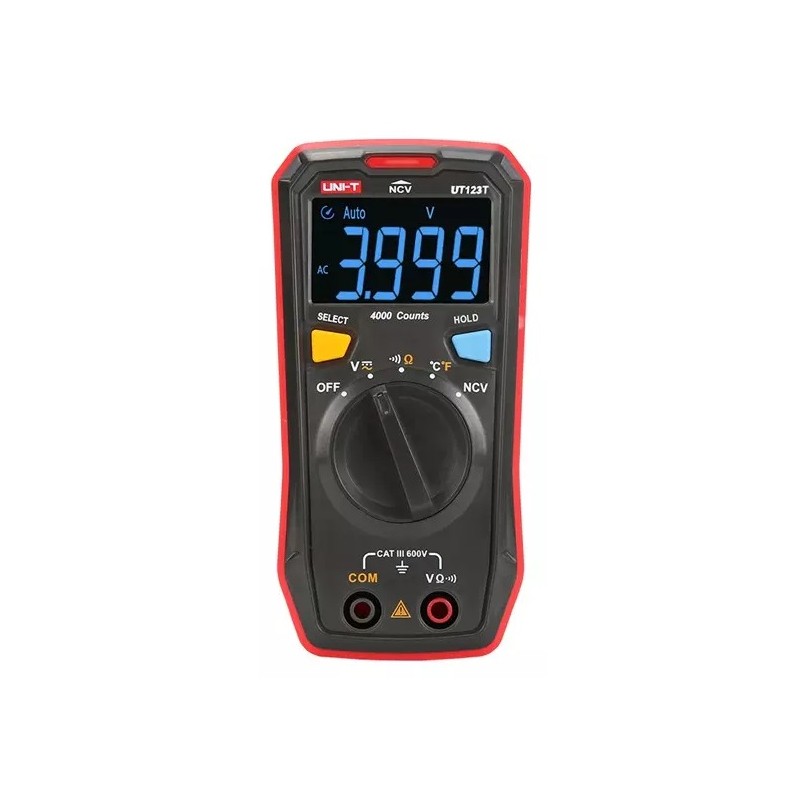

Multimeter UNI-T UT123T

:FER02031
€17.80
Tax included

The UT123T is a pocket-sized residential multimeter designed for home use. The compact structure makes it easy to hold in one hand, and the EBTN screen allows users to obtain clear readings at maximum angle, it is also great for working in dark environments.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

The UT123T is a pocket-sized residential multimeter designed for home use. The compact structure makes it easy to hold in one hand, and the EBTN screen allows users to obtain clear readings at maximum angle, it is also great for working in dark environments.



Specifications Range UT123T
DC Voltage 4V/40V/400V/600V ±（0.5%＋2）
AC Voltage 4V/40V/400V/600V ±(1.0%+3)
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/20MΩ ±(0.8%+2)
Temperatue –40℃～ 300℃/–40℉～ 572℉ ±4℃
Features
Display Count 　 4000
Autol Range 　 √
NCV 　 √
Continuity Test 　 √
Acousto-optic indication(NCV/continuity/battery power) 　 √
Low Battery Indication ≤2.7V √
Data Hold 　 √
Auto  Power Off 15Min √
Operation Temperature 　 0℃～40℃
CE/ROHS   √
Safety 　 CAT III 600V
General Characteristics
Power 1.5V battery (R03) x 2
Display 44mm × 26mm
Product color Red and grey
Product net weight 130g
Product size 130mm x 65m x 28mm
Standard accessories Batteries,  Thermocouple
Standard individual packing Gift Box, Manual



UT123T English Manual
