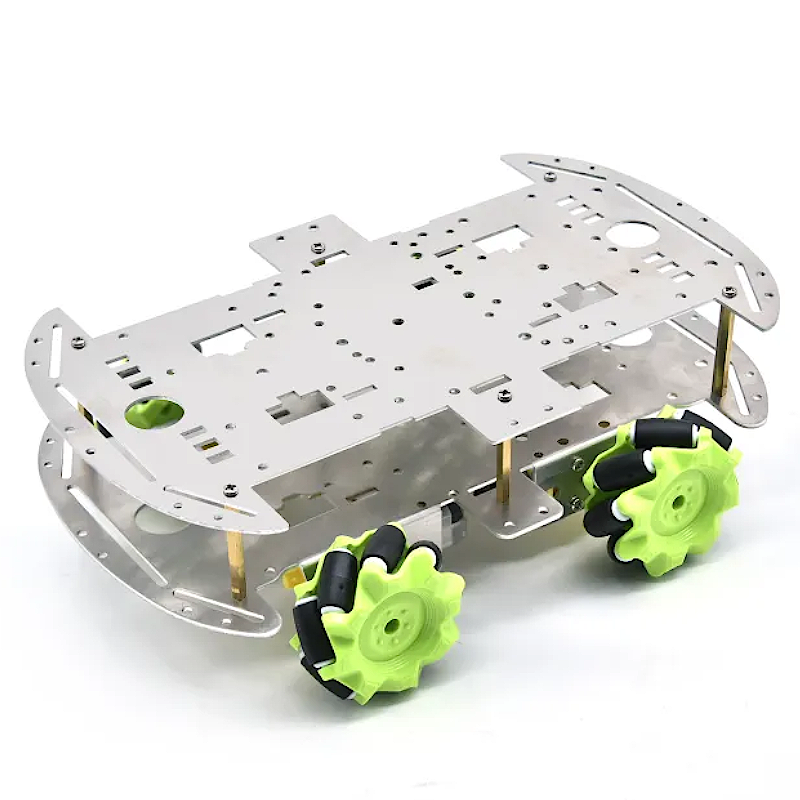

4WD Mecanum Wheel Robot Cart Chassis Kit Double Layers Aluminum Body

:ROB05061
€24.50
Tax included

This 4WD Round Double-Deck Smart Robot Car Chassis Kit has a powerful scalability and complete variety of functions.

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

4WD Mecanum Wheel Robot Cart Chassis Kit

The cart chassis of this product is easy to assemble. This link is a loose part, you need to assemble it by yourself. Has a strong scalability, can complete a variety of functions intelligent trolley, to meet most of the sensors on the market fixed. Customers can DIY according to their own needs with the development board, their own formation of trajectory, obstacle avoidance, bluetooth and other functions of the trolley.

  1. Aluminum Chassis:  Aluminum alloy material maintains the advantages of lightweight but also has high strength, and the chassis adopts removable design, which is convenient for users to modify and expand by themselves.

  2. Plenty of Expansion Holes: A large number of holes can be installed with the motherboard and various sensors, camera modules, robotic arms and so on. Mechanical arm, etc., the bottom of the car body is equipped with battery mounting position, which is convenient for users to expand by themselves. Battery mounting position is provided on the bottom of the car body, which is convenient for users to expand by themselves.

  3. Mecanum Wheels with DC Geared Motor: Mecanum Wheel rollers can be moved forward or backward like a traditional wheel, allowing for sideways movement, spinning wheels. The front and rear axles are in opposite directions and support rotation at 45°, allowing for flexible movement even in small spaces to reach a destination.

DC Geared Motor

  1. Working voltage:DC3-6V

  2. Rated voltage:DC4.5V No-load current:?80mA

  3. No-load speed:about 200rpm measured 180rpm Gear ratio:1:48



Includes

Single layer chassis kit

  1. 1x Aluminum alloy chassis A

  2. 4x DC Geared Motor

  3. 2x Mecanum wheel A

  4. 2x Mecanum wheel B

  5. 8x M3*30MM screws

  6. 8x M3 nickel-plated

  7. 4x Coupling

  8. 4x M2.3*16MM screw



Double chassis kit

  1. 1x Aluminum alloy chassis A

  2. 1x Aluminum Chassis B

  3. 2x McNamee wheel A

  4. 2x McNamee wheel B

  5. 4x DC gear motor

  6. 6x Double pass copper pole

  7. 4x Coupling

  8. 8x M3*30MM screws

  9. 12x M3*6MM screw

  10. 4x M2.3*16MM screws

  11. 8x M3 nickel-plated

ROB05061
