• New

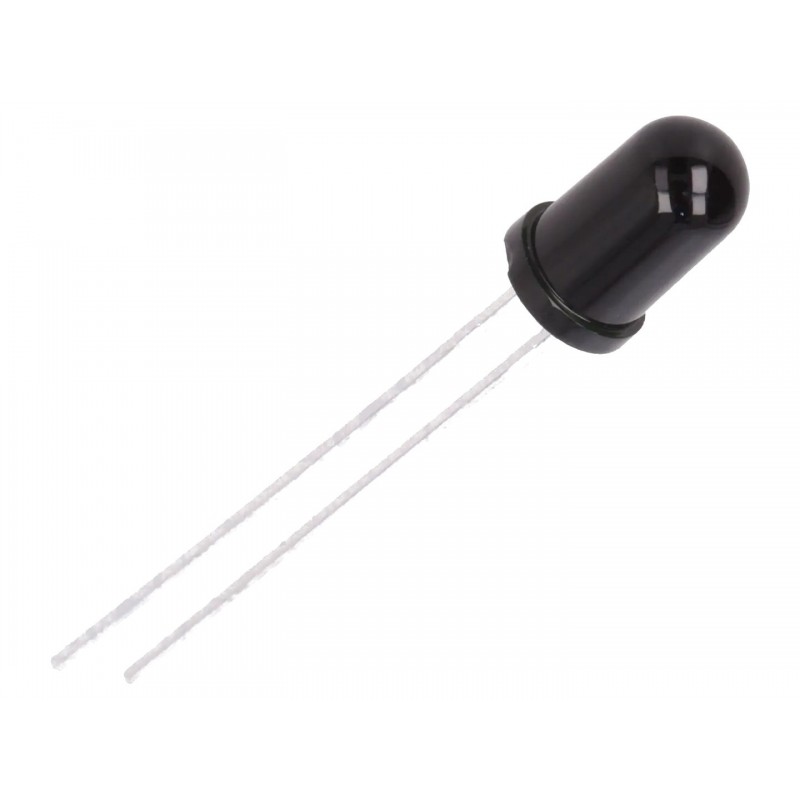

Flame sensor 5MM phototransistor

:SEN05052
€0.37
Tax included

This Flame Sensor can be used to detect fire source or other light sources of the wave length in the range of 700nm ~ 1100 nm.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

This Flame Sensor - 5mm IR Diode can work as a fire detection flame sensor module, fire source detection modules. This Flame Sensor can be used to detect fire source or other light sources of the wave length in the range of 700nm ~ 1100 nm. This is a high speed and high sensitive NPN silicon phototransistor. A phototransistor is known as a device in which turns light source energy into electric energy. Phototransistors are very close to photoresistors but produce both current and voltage, while photoresistors simply produce current. The reason is a phototransistor includes a bipolar semiconductor and targets the energy this can be transmitted via it. Due to its black epoxy, the sensor is sensitive to infrared radiation. It can be used as flame Sensor for Smart Car.

Features

  •     Package type: leaded
  •     Dimensions : 5mm
  •     Leads with stand-off
  •     Peak wavelength: λp = 940 nm
  •     High reliability
  •     Fast response time
  •     High photo sensitivity
  •     Forward Voltage : 1.2V ~ 1.5V
  •     operating voltage : 3.3V-5V



Datasheet

SEN05052
