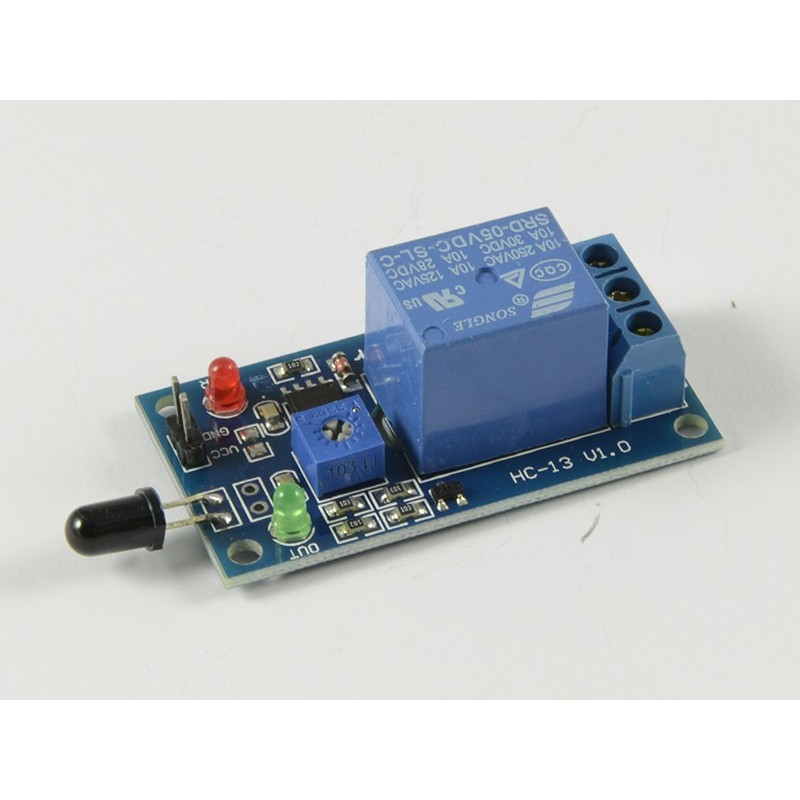

Relay Flame Sensor


Flame sensor with relay output.
With a potenciometer defines the intensity of the flame and above this value the output relay is triggered.

Power supply 5Vdc.


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

1 Channel 5Vdc Flame Sensor Relay Module info

This sensor switch the relay when it detects fire. It is ideal for projects like fire alarm, fire-extinguishing robot. It works with DC 5V. The light (flame) with a wavelength between 760nm and 1100nm can detect from a maximum of 80cm distance and 60 degrees angle. Its sensitivity can be adjusted through the potentiometer on it. 250V / 10A AC or 30V / 10A DC loads can be switched with the relay.
