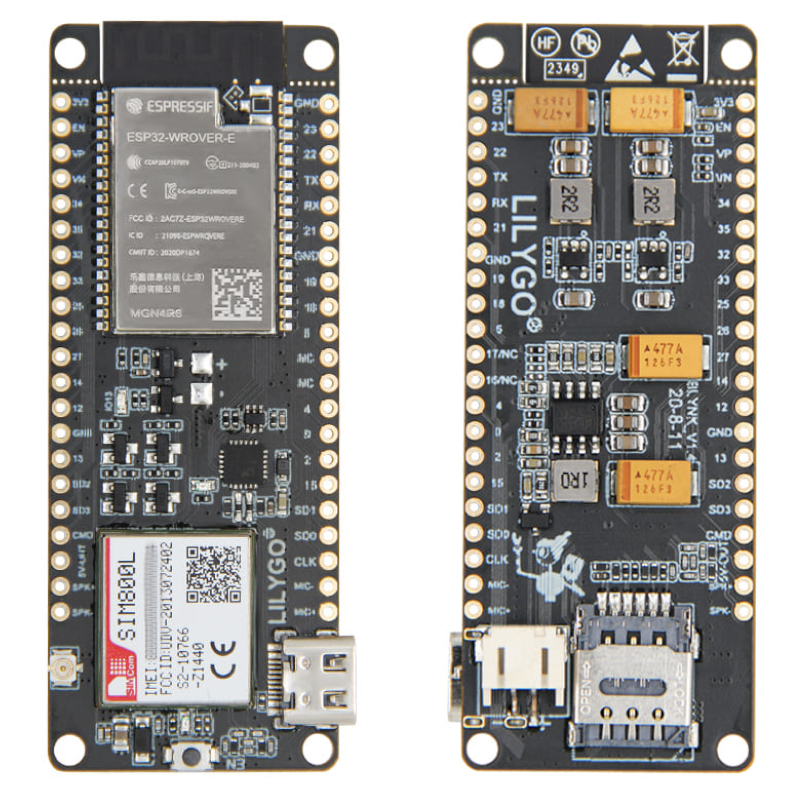

T-Call V1.4 ESP32 w/ SIM800L 4MB GSM/GPRS and driver CH9102 - LILYGO® Q103

: PCO05187
€29.90
Tax included

ESP32 Wireless Module SIM Antenna WiFi Bluetooth Development Expand Board Devkit for Arduino

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Specifications For SIM800

MCU

ESP32

GSM/GPRS

SIM800

SIM Nano Card Slot

Yes [2G]

ESP32



Clock Speed

240Mhz

Flash

4MB/8MB

PSRAM

8MB

Wireless Connectivity

Wi-Fi: 802.11 b/g/n
Bluetooth: v4.2 BR/EDR and BLE

Button

EN

Charging IC

IP5306

Serial Chip

CH9102

Peripheral Interfaces

 I2C、SPI、UART、SDIO、、I2S、CAN

Power Supply

Support USB Type-C / Li-Po Battery Dual Power Supply


JST Connect type: JST PH 2pin 2.0mm

[USB can power the battery]

Others

Supports pin extension of Mic and Speaker

[Ship without mic and speaker by default]



Notice

Connect the power supply, click to start, after the start, click to reset, and click twice to shut down.



Sample Code For Reference [Github]: For T-Call SIM800



Pin Diagram





What's In The Box

  1. 1 X Power Cable(PH 2pin 2.0mm)

  1. 1 X SIM800L

  2. 1 X SIM Antenna(~7 cm)

  1. 2 X Pin
