1.8inch colorful display module for micro:bit, 160x128
: PCO07018
€16.10

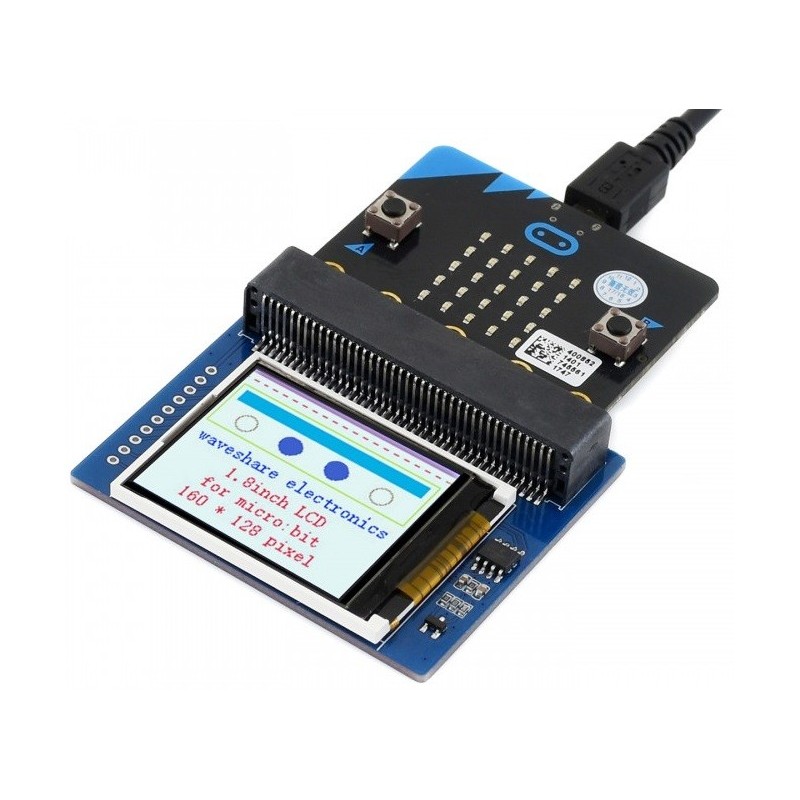

This is a colorful display module designed for the BBC micro:bit, 1.8inch diagonal, 160x128 pixels, capable of displaying 65K colors.
Tired of the 5x5 LED matrix? Time to get a tiny monitor for your micro:bit, this one would be the ideal choice.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Features
- micro:bit edge connector, directly pluggable
- Embedded driver ST7735S, supports 65K colors
- Onboard SRAM 23LC1024, used as display cache, no more out of memory
- SPI interface, takes up only a few IO pins
- Backlight adjustment via PWM
- Reserved solder pads for control interface, make it easy to connect with Arduino/Nucleo boards
- Comes with development resources (micro:bit graphical demo/user manual, etc.)
Specifications
- Driver: ST7735S
- Resolution: 160x128
- Display color: RGB, 65K colors
- Operating voltage: 3.3V
- Dimension: 61mm x 51.5mm
Pinouts
PIN | micro:bit PIN | DESCRIPTION |
---|---|---|
3V3 | 3V3 | Power |
GND | GND | Ground |
MISO | P14 | SPI data master input/slave output |
MOSI | P15 | SPI data master output/slave input |
SCK | P13 | SPI clock input |
LCD_CS | P16 | LCD chip selection |
RAM_CS | P2 | SRAM chip selection |
DC | P12 | LCD data/command |
RST | P8 | LCD reset |
BL | P1 | LCD backlight |
Dimensions
Development Resources
Wiki : www.waveshare.com/wiki/1.8inch_LCD_for_micro:bit
PACKAGE CONTENT
Weight: 0.025 kg
- 1.8inch LCD for micro:bit x1
