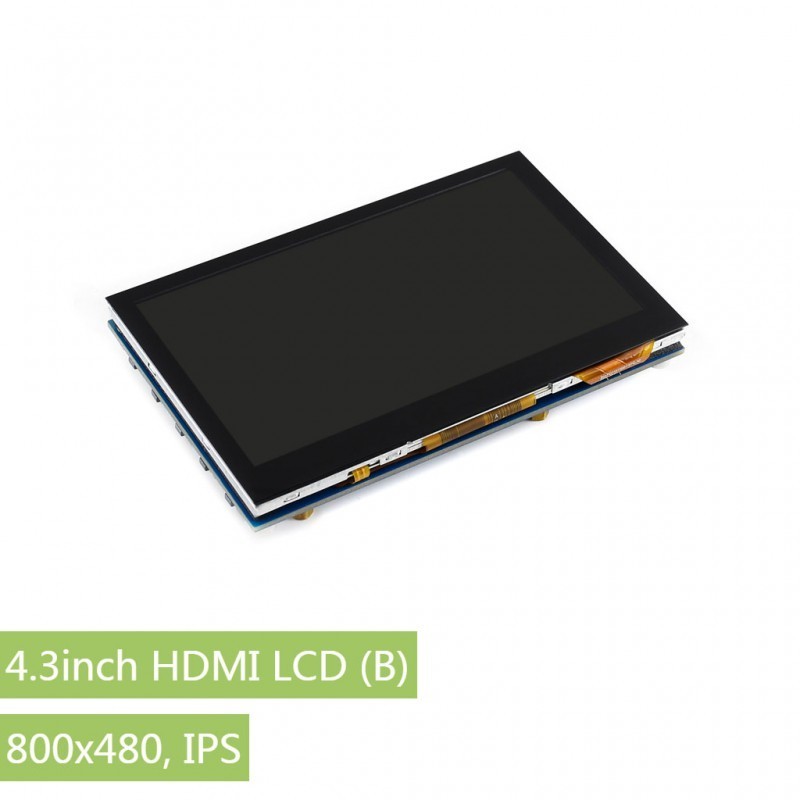

4.3inch HDMI LCD (B), 800x480, IPS, supports various systems, capacitive touch

:LCD01113
€49.95
Tax included

PS screen, 800x480 hardware resolution, configurable by software (up to 1920x1080)

Supports popular mini PCs such as Raspberry Pi, BB Black, Banana Pi, as well as general desktop computers

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features

  • IPS screen, 800x480 hardware resolution, configurable by software (up to 1920x1080)
  • Supports popular mini PCs such as Raspberry Pi, BB Black, Banana Pi, as well as general desktop computers
    • When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
    • When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
  • Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
  • 3.5mm audio jack, speaker connector, supports HDMI audio output

Using with Game Consoles

Part Number Microsoft XBOX Sony PS4 Nintendo Switch
Display Sound Display Sound Display Sound
3.5inch HDMI LCD
4.3inch HDMI LCD (B)
5inch HDMI LCD (G)
5inch HDMI LCD (H)
7inch HDMI LCD × × ×
7inch HDMI LCD (H)
10.1inch HDMI LCD × × ×
10.1inch HDMI LCD (B) × × × × ×
10.1inch HDMI LCD (D) × ×
10.1inch HDMI LCD (H) × ×
11.6inch HDMI LCD (H)
13.3inch HDMI LCD (H)

Note:

  • Limited by the game console OS, the touch function is unavailable.
  • Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.

External Dimension

4.3inch HDMI LCD (B) dimension

Development Resources

Wiki : www.waveshare.com/wiki/4.3inch_HDMI_LCD_(B)

Selection Guide



Part Number Resolution Display Interface Touch Panel Interface For use with Dimension (mm) Touch Panel Type Toughened Glass Cover IPS Sound Popular Game Consoles How you feel
2.8inch RPi LCD (A) 320×240 I/O I/O Pi As the Pi 3B+ Resistive × × × × ★☆
3.2inch RPi LCD (B) 320×240 I/O I/O Pi As the Pi 3B+ Resistive × × × × ★★
3.2inch RPi LCD (C) 320×240 I/O ※ I/O Pi As the Pi 3B+ Resistive × × × × ★★★
3.5inch RPi LCD (A) 480×320 I/O I/O Pi As the Pi 3B+ Resistive × × × × ★★★
3.5inch RPi LCD (B) 480×320 I/O I/O Pi As the Pi 3B+ Resistive × × × ★★★
3.5inch RPi LCD (C) 480×320 I/O ※ I/O Pi As the Pi 3B+ Resistive × × × × ★★★
3.5inch HDMI LCD 480×320 HDMI I/O Pi As the Pi 3B+ Resistive × ★★★★
4inch RPi LCD (A) 480×320 I/O I/O Pi 94 × 61 Resistive × × × ★★★☆
4inch HDMI LCD 480×800 HDMI I/O Pi 99 × 58 Resistive × × × ★★★★
4.3inch HDMI LCD 480×272 HDMI I/O Pi 106 × 68 Resistive × × × × ★★★☆
4.3inch HDMI LCD (B) 800×480 HDMI USB Not only Pi 106 × 68 Capacitive × ★★★★☆
5inch HDMI LCD 800×480 HDMI I/O Pi 121 × 78 Resistive × × × × ★★★★
5inch HDMI LCD (B) 800×480 HDMI USB Not only Pi 121 × 76 Resistive × × × × ★★★★☆
5inch HDMI LCD (G) 800×480 HDMI USB Not only Pi 121 × 76 Resistive × × ★★★★☆
5inch HDMI LCD (H) 800×480 HDMI USB Not only Pi 121 × 76 Capacitive × × ★★★★☆
7inch HDMI LCD 1024×600 HDMI I/O Pi 165 × 107 Resistive × × × × ★★★★
7inch HDMI LCD (B) 800×480 HDMI USB Not only Pi 165 × 107 Capacitive × × × × ★★★★☆
7inch HDMI LCD (C) 1024×600 HDMI USB Not only Pi 165 × 107 Capacitive × × × ★★★★★
7inch HDMI LCD (H) 1024×600 HDMI USB Not only Pi 165 × 107 Capacitive ★★★★★
10.1inch HDMI LCD 1024×600 HDMI I/O Pi 235 × 144 Resistive × × × × ★★★★
10.1inch HDMI LCD (B) 1280×800 HDMI USB Not only Pi 274 × 187 Capacitive × × ★★★★★
10.1inch HDMI LCD (H) 1024×600 HDMI USB Not only Pi 257 × 162 Capacitive × × × ★★★★☆
11.6inch HDMI LCD (H) 1920×1080 HDMI USB Not only Pi 285 × 182 Capacitive ★★★★★
13.3inch HDMI LCD (H) 1920×1080 HDMI USB Not only Pi 330 × 208 Capacitive ★★★★★

Note :

  1. Pi 3B+ means Raspberry Pi 3 Model B+
  2. If the LCD is intended to play videos, please choose the one with HDMI display interface for better experience.
  3. Display Interface ※: 3.2inch RPi LCD (C), 3.5inch RPi LCD (C) features 125MHz High-Speed SPI, provides higher refresh rate than normal I/O interface.
  4. Toughened Glass Cover ※: the 7inch HDMI LCD (H) (with case) features toughened glass cover, while the 7inch HDMI LCD (H) uses a normal screen cover

Have a look :
RPi LCD Comparing

Package Content

Weight: 0.185 kg

Note: Raspberry Pi and Speaker (8Ω 5W) are NOT included.

  1. 4.3inch HDMI LCD (B) x1
  2. HDMI cable x1
  3. USB type A plug to micro B plug cable x1
  4. HDMI adapter (B) x1
  5. USB adapter (B) x1
  6. Screws pack x1
14.3inch-HDMI-LCD-B-1_93.jpg2HDMI-cable_93.jpg3USB-micro-35cm_93.jpg4HDMI-adapter-B_93.jpg5USB-adapter-B_93.jpg6screws-pack_93.jpg
