11.6inch HDMI LCD (H) (with case), 1920x1080, IPS

: LCD01112
€169.90
Tax included

Toughened glass capacitive touch panel, 6H hardness

Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features

  • 11.6inch IPS screen,1920x1080 hardware resolution
  • Toughened glass capacitive touch panel, 6H hardness
  • Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers
    • When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
    • When work as a computer monitor, supports Windows 10/8.1/8/7, ten-points touch, and driver free
  • Supports popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch
  • Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
  • 3.5mm audio jack, supports HDMI audio output
  • Embedded ferrite Hi-Fi speaker
  • Also supports VGA input (specific cable is required and should be purchased separately)
  • 75x75mm spacing mounting holes (M4 screw hole) for general wall mount
  • Comes with 75° tilt angle stand

Using with Game Consoles

Part Number Microsoft XBOX Sony PS4 Nintendo Switch
Display Sound Display Sound Display Sound
3.5inch HDMI LCD
4.3inch HDMI LCD (B)
5inch HDMI LCD (G)
5inch HDMI LCD (H)
7inch HDMI LCD × × ×
7inch HDMI LCD (H)
10.1inch HDMI LCD × × ×
10.1inch HDMI LCD (B) × × × × ×
10.1inch HDMI LCD (D) × ×
10.1inch HDMI LCD (H) × ×
11.6inch HDMI LCD (H)
13.3inch HDMI LCD (H)

Note:

  • Limited by the game console OS, the touch function is unavailable.
  • Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.

External Dimension

11.6inch-HDMI-LCD-H-with-Holder-dimension

Development Resources

Wiki : www.waveshare.com/wiki/11.6inch_HDMI_LCD_(H)_(with_case)

FAQ

Why the LCD doesn't work with my Raspbian?

To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.

Why the LCD still doesn't work with the Waveshare provided image?

Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.

Which power supply should I use?

It is recommended to use a 5V/3A power adapter for the Raspberry Pi other than USB connection, otherwise the Pi may failed to start up because the PC's USB port might have not enough power.
For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.

For more info, please check the wiki page.

Selection Guide



Part Number Resolution Display Interface Touch Panel Interface For use with Dimension (mm) Touch Panel Type Toughened Glass Cover IPS Sound Popular Game Consoles How you feel
2.8inch RPi LCD (A) 320×240 I/O I/O Pi As the Pi 3B+ Resistive × × × × ★☆
3.2inch RPi LCD (B) 320×240 I/O I/O Pi As the Pi 3B+ Resistive × × × × ★★
3.2inch RPi LCD (C) 320×240 I/O ※ I/O Pi As the Pi 3B+ Resistive × × × × ★★★
3.5inch RPi LCD (A) 480×320 I/O I/O Pi As the Pi 3B+ Resistive × × × × ★★★
3.5inch RPi LCD (B) 480×320 I/O I/O Pi As the Pi 3B+ Resistive × × × ★★★
3.5inch RPi LCD (C) 480×320 I/O ※ I/O Pi As the Pi 3B+ Resistive × × × × ★★★
3.5inch HDMI LCD 480×320 HDMI I/O Pi As the Pi 3B+ Resistive × ★★★★
4inch RPi LCD (A) 480×320 I/O I/O Pi 94 × 61 Resistive × × × ★★★☆
4inch HDMI LCD 480×800 HDMI I/O Pi 99 × 58 Resistive × × × ★★★★
4.3inch HDMI LCD 480×272 HDMI I/O Pi 106 × 68 Resistive × × × × ★★★☆
4.3inch HDMI LCD (B) 800×480 HDMI USB Not only Pi 106 × 68 Capacitive × ★★★★☆
5inch HDMI LCD 800×480 HDMI I/O Pi 121 × 78 Resistive × × × × ★★★★
5inch HDMI LCD (B) 800×480 HDMI USB Not only Pi 121 × 76 Resistive × × × × ★★★★☆
5inch HDMI LCD (G) 800×480 HDMI USB Not only Pi 121 × 76 Resistive × × ★★★★☆
5inch HDMI LCD (H) 800×480 HDMI USB Not only Pi 121 × 76 Capacitive × × ★★★★☆
7inch HDMI LCD 1024×600 HDMI I/O Pi 165 × 107 Resistive × × × × ★★★★
7inch HDMI LCD (B) 800×480 HDMI USB Not only Pi 165 × 107 Capacitive × × × × ★★★★☆
7inch HDMI LCD (C) 1024×600 HDMI USB Not only Pi 165 × 107 Capacitive × × × ★★★★★
7inch HDMI LCD (H) 1024×600 HDMI USB Not only Pi 165 × 107 Capacitive ★★★★★
10.1inch HDMI LCD 1024×600 HDMI I/O Pi 235 × 144 Resistive × × × × ★★★★
10.1inch HDMI LCD (B) 1280×800 HDMI USB Not only Pi 274 × 187 Capacitive × × ★★★★★
10.1inch HDMI LCD (H) 1024×600 HDMI USB Not only Pi 257 × 162 Capacitive × × × ★★★★☆
11.6inch HDMI LCD (H) 1920×1080 HDMI USB Not only Pi 285 × 182 Capacitive ★★★★★
13.3inch HDMI LCD (H) 1920×1080 HDMI USB Not only Pi 330 × 208 Capacitive ★★★★★

Note :

  1. Pi 3B+ means Raspberry Pi 3 Model B+
  2. If the LCD is intended to play videos, please choose the one with HDMI display interface for better experience.
  3. Display Interface ※: 3.2inch RPi LCD (C), 3.5inch RPi LCD (C) features 125MHz High-Speed SPI, provides higher refresh rate than normal I/O interface.
  4. Toughened Glass Cover ※: the 7inch HDMI LCD (H) (with case) features toughened glass cover, while the 7inch HDMI LCD (H) uses a normal screen cover

Have a look :
RPi LCD Comparing



Package Content

Weight: 0.842 kg

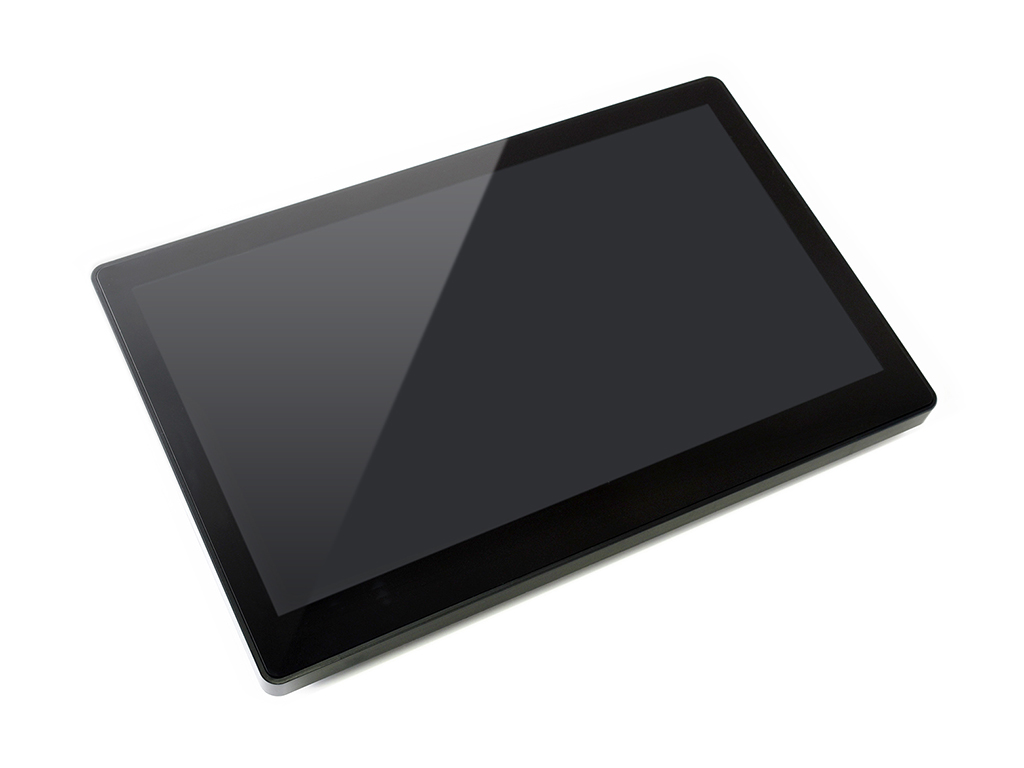

  1. 11.6inch HDMI LCD (H) (with case) x1

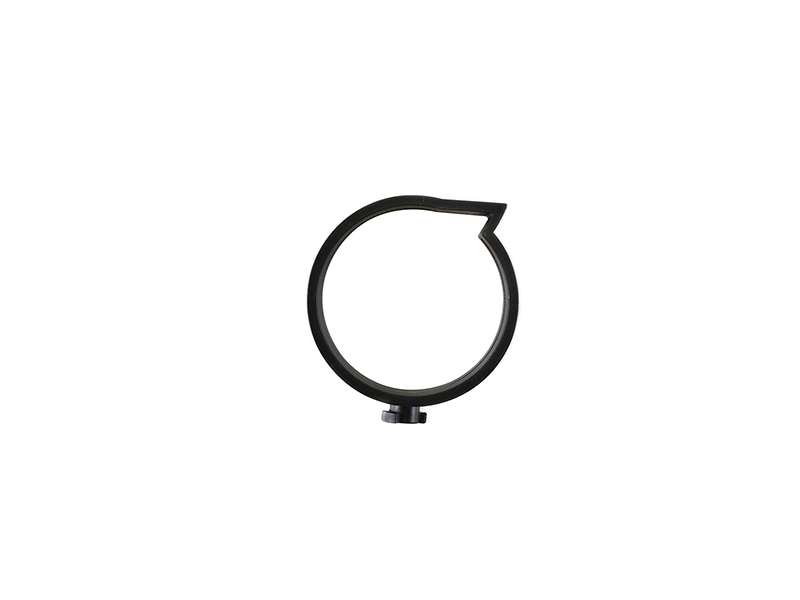

  2. Ring stand x1

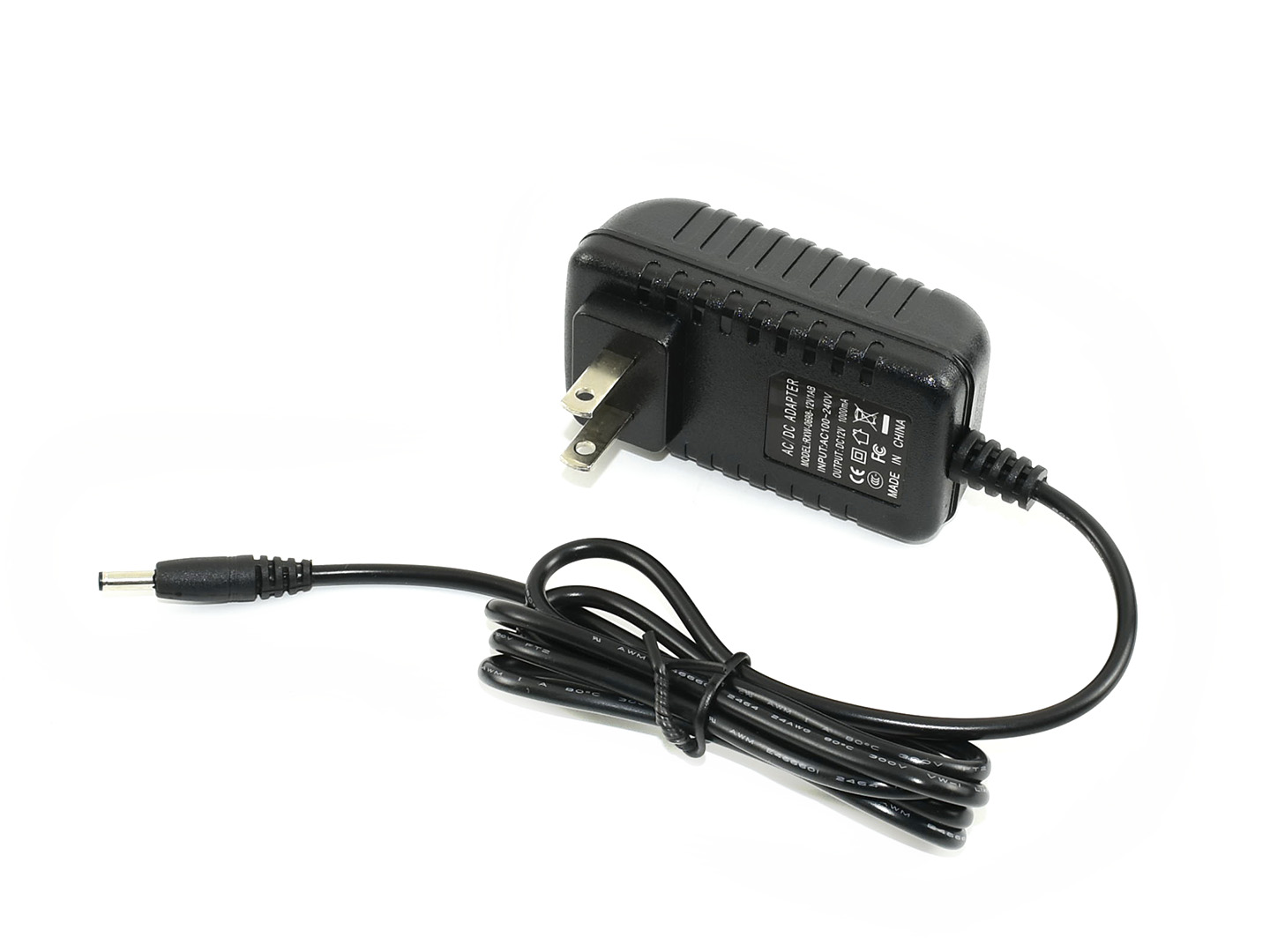

  3. Power adapter 12V x1
  4. Power adapter EU head x1
  5. HDMI cable x1
  6. USB type A plug to micro B plug cable x1
111.6inch-HDMI-LCD-H-with-Holder-2_93.jpg2Ring-Stand_93.jpg3Power-Adapter-12V-1000mA-DC_93.jpg4EU-head_93.jpg5HDMI-cable_93.jpg6USB-micro-35cm_93.jpg
