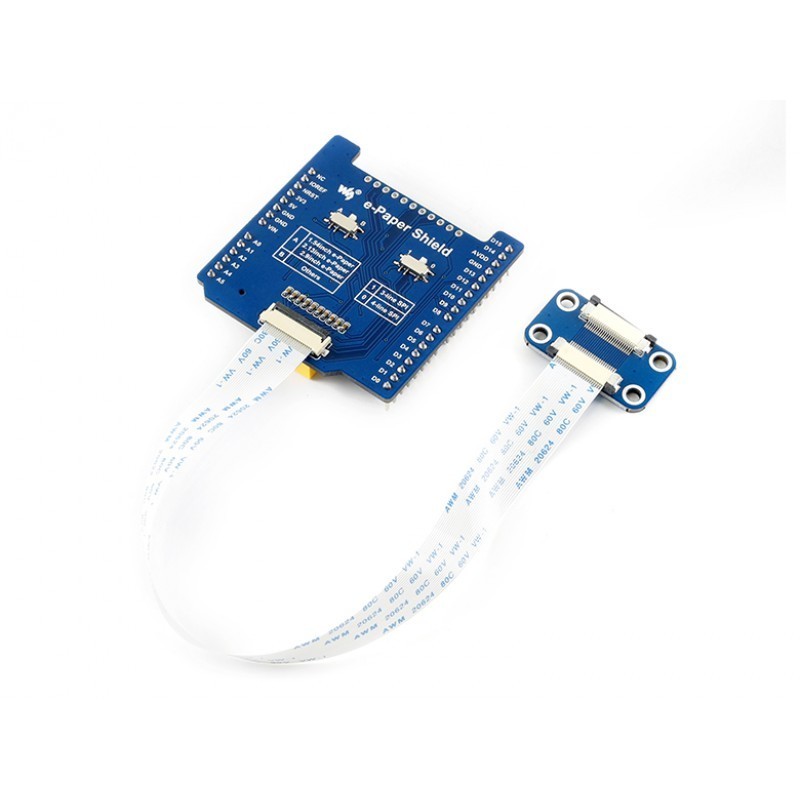

Universal e-Paper Raw Panel Driver Shield for Arduino / NUCLEO

: ARD03158
€10.49

This is a universal driver board for connecting Arduino/NUCLEO and e-Paper raw panels, can be used to drive various SPI interface e-Paper from Waveshare.

Note: e-Paper and Raspberry Pi are NOT included.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features

  • Standard Arduino connectivity, compatible with host boards like UNO, Leonardo, NUCLEO, XNUCLEO
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Onboard external RAM, more available space
  • Micro SD slot, images can be stored on TF card for displaying
  • Reserved control interface, for connecting with other control boards/li>
  • Comes with development resources and manual (examples for Arduino/STM32)

Specifications

  • Operating voltage: 3.3V/5V
  • Interface: 3-wire SPI, 4-wire SPI (default)
  • Outline dimension: 53.34mm × 53.34mm

Interface

PIN Arduino/NUCLEO PIN DESCRIPTION
VCC 5V Power
GND GND Ground
SCK SCK SPI clock input
MOSI MOSI SPI data input
MISO MISO SPI data output
EPD_CS D10 e-Paper chip selection
EPD_DC D9 e-Paper data/command
EPD_RST D8 e-Paper reset
EPD_BUSY D7 e-Paper busy
SD_CS D6 SD card chip selection
SPIRAM_CS D5 SPI RAM chip selection

Dimensions

e-Paper Shield dimensions

Development Resources

Wiki : www.waveshare.com/wiki/e-Paper_Shield



Supported e-Paper

Part Number Colors Grey Level Resolution Display size (mm) Outline Dimension (mm) Full Refresh Time (s) Partial Refresh Time (s) Interface
1.54inch e-Paper black, white 2 200x200 27.60 × 27.60 31.8 × 37.3 2 0.3 SPI
1.54inch e-Paper (B) red, black, white 2 200x200 27.60 × 27.60 31.8 × 37.3 8 N/A SPI
1.54inch e-Paper (C) yellow, black, white 2 152x152 27.51 × 27.51 31.8 × 37.3 27 N/A SPI
2.13inch e-Paper black, white 2 250x122 48.55 × 23.71 59.2 × 29.2 2 0.3 SPI
2.13inch e-Paper (B) red, black, white 2 212x104 48.55 × 23.71 59.2 × 29.2 15 N/A SPI
2.13inch e-Paper (C) yellow, black, white 2 212x104 48.55 × 23.71 59.2 × 29.2 15 N/A SPI
2.13inch e-Paper (D) black, white 2 212x104 48.55 × 23.71 59.2 × 29.2 2 0.3 SPI
2.7inch e-Paper black, white 2 264x176 57.29 × 38.19 70.4 × 45.8 6 N/A SPI
2.7inch e-Paper (B) red, black, white 2 264x176 57.29 × 38.19 70.4 × 45.8 15 N/A SPI
2.9inch e-Paper black, white 2 296x128 66.89 × 29.05 79.0 × 36.7 2 0.3 SPI
2.9inch e-Paper (B) red, black, white 2 296x128 66.89 × 29.05 79.0 × 36.7 15 N/A SPI
2.9inch e-Paper (C) yellow, black, white 2 296x128 66.89 × 29.05 79.0 × 36.7 15 N/A SPI
4.2inch e-Paper black, white 2 400x300 84.80 × 63.60 90.1 × 77.0 4 N/A SPI
4.2inch e-Paper (B) red, black, white 2 400x300 84.80 × 63.60 90.1 × 77.0 15 N/A SPI
4.2inch e-Paper (C) yellow, black, white 2 400x300 84.80 × 63.60 90.1 × 77.0 15 N/A SPI
5.83inch e-Paper black, white 2 600x448 118.80 × 88.26 125.4 × 99.5 3.5 N/A SPI
5.83inch e-Paper (B) red, black, white 2 600x448 118.80 × 88.26 125.4 × 99.5 14 N/A SPI
5.83inch e-Paper (C) yellow, black, white 2 600x448 118.80 × 88.26 125.4 × 99.5 26 N/A SPI
7.5inch e-Paper black, white 2 640x384 163.20 × 97.92 170.2 × 111.2 6 N/A SPI
7.5inch e-Paper (B) red, black, white 2 640x384 163.20 × 97.92 170.2 × 111.2 16 N/A SPI
7.5inch e-Paper (C) yellow, black, white 2 640x384 163.20 × 97.92 170.2 × 111.2 16 N/A SPI

e-Paper raw panels comparing



PACKAGE CONTENT

Weight: 0.017 kg

Note: e-Paper and Raspberry Pi are NOT included.

  1. e-Paper Shield x1
  2. e-Paper Adapter x1
  3. 24PIN FFC x1
