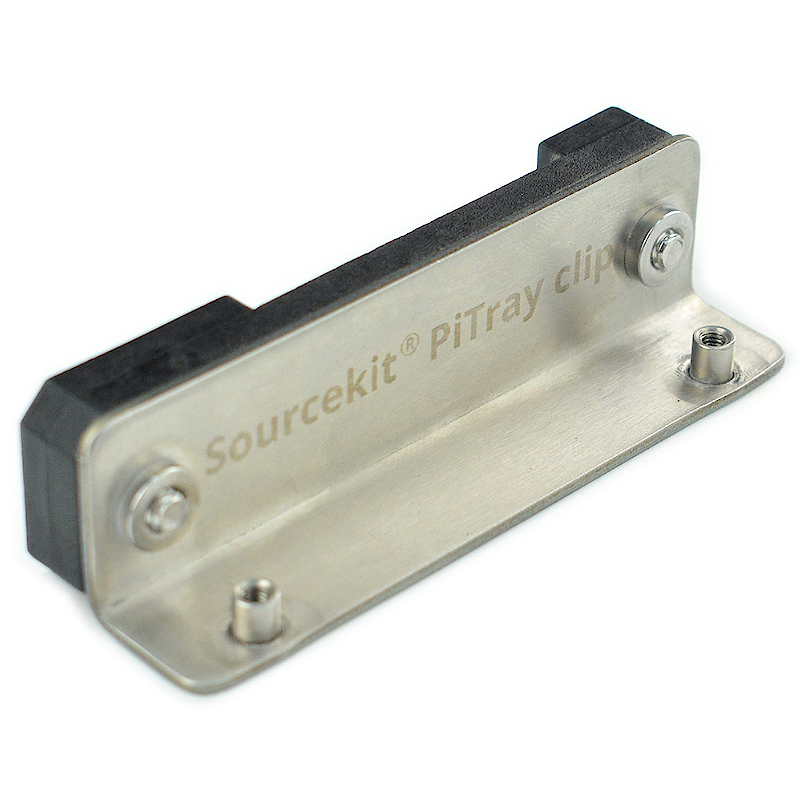

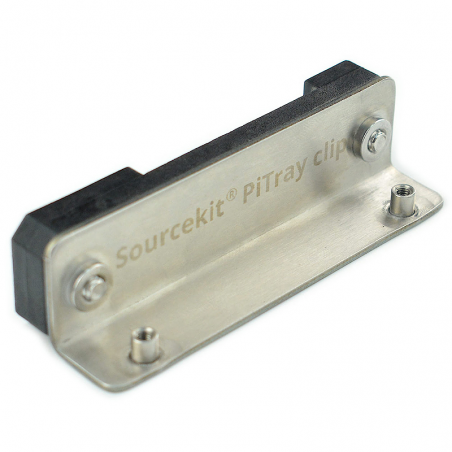

PiTray Clip Din Rail Mount (Compatible for Raspberry Pi and Jetson Nano)

PiTray clip is a Din Rail mounter for Single Board Computers like Raspberry Pi. Assembled of a 304 Stainless Steel blended plate and nylon clip with spring, it provides a simple, quick, strong, and durable Din Rail installation solution suitable for industrial setup, home automation application as well as cluster building.

PiTray clip compatible for Raspberry Pi 4B/3A+/3B+/3B/2B/1B+/1A/Zero W/Zero, NVIDIA Jetson Xavier NX Developer KIT/Jetson Nano Developer Kit/Jetson Nano 2GB Developer Kit , PINE64 Rock64/PINE H64 Model B , Hardkernel ODROID C4/C2/C1+ , ASUS Tinker Board 2S/2/T/S , Coral Dev Board , Sourcekit PiTray mini.

Instructions

1. Compatible with IEC/EN 60715 Din Rails

2. 304 Stainless Steel PCB Rack with the thickness of 1.5 mm

3. Nylon (PA66 30GF) Clip with Spring, easy to mount and unmount

4. Include 2 pcs of 304 Stainless Steel M2.5x4 blots to fasten PCB

5. Brushed Polished Finish and free of rough edges

Works With

1. Raspberry Pi 4B / 3A+ / 3B+ / 3B / 2B / 1B+ / 1A / Zero W /Zero

2. NVIDIA Jetson Xavier NX Developer KIT / Jetson Nano Developer Kit  / Jetson Nano 2GB Developer Kit

3. PINE64 Rock64/PINE H64 Model B

4. Hardkernel ODROID C4/C2/C1+

5. ASUS Tinker Board 2S/2/T/S

6. Coral Dev Board

7. Sourcekit PiTray mini

1. PiTray Clip ×1

2. Screws Attached ×1
