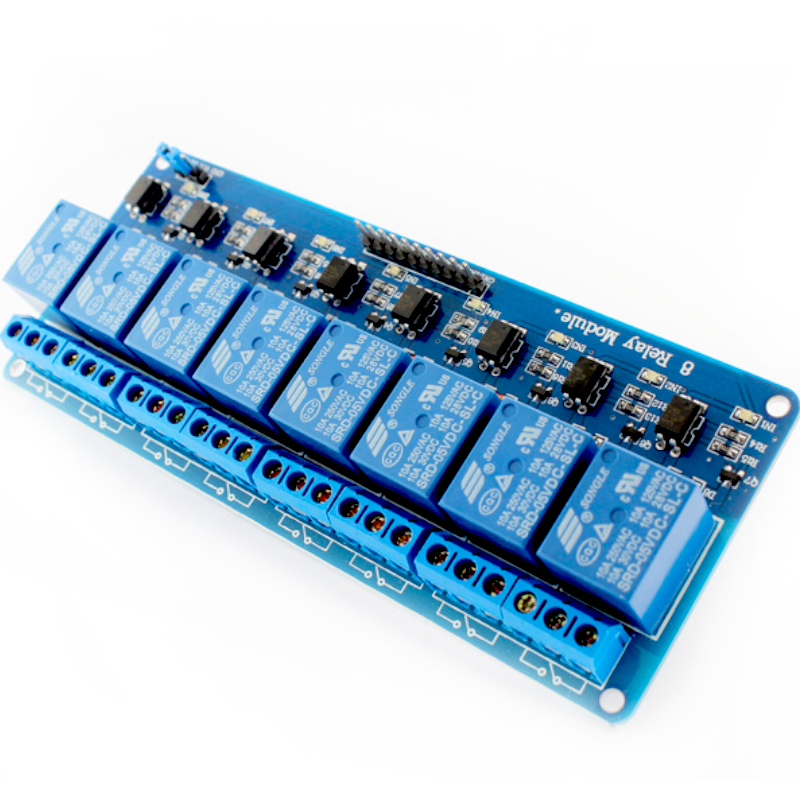

8-CHANNEL 12V RELAY MODULE OPTO-ISOLATED

:MRE03048
€9.67

8-CHANNEL 12V RELAY MODULE OPTO-ISOLATED

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

This is a 12V 8-Channel Relay interface board, Be able to control various appliances, and other equipments with large current. It can be controlled directly by Micro-controller (Arduino , 8051, AVR, PIC, DSP, ARM, MSP430, TTL logic) .



Features:

12V 8-Channel Relay interface board, and each one needs 50-60mA Driver Current.

Equiped with high-current relay, AC250V 10A; DC30V 10A.

Indication LED for Relay output status.

Size: Approx. 13.80*5.50*1.70cm(L*W*H)


Package Included:

1 x 12V 8-Channel Relay Module
