Quality 3-Ch Relay Expansion Board Designed For Jetson Nano, Optocoupler Isolation

:MRE03042
€14.90
Tax included

Module for Nvidia Jetson Nano equipped with 3 relays with optocoupler isolation. It has a 40-pin GPIO connector that can be connected directly to Jetson Nano. The maximum load of the relay is ≤ 5 A 250 V AC or ≤ 5 A 30 V DC. Module with external dimensions of 100 x 79 mm

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

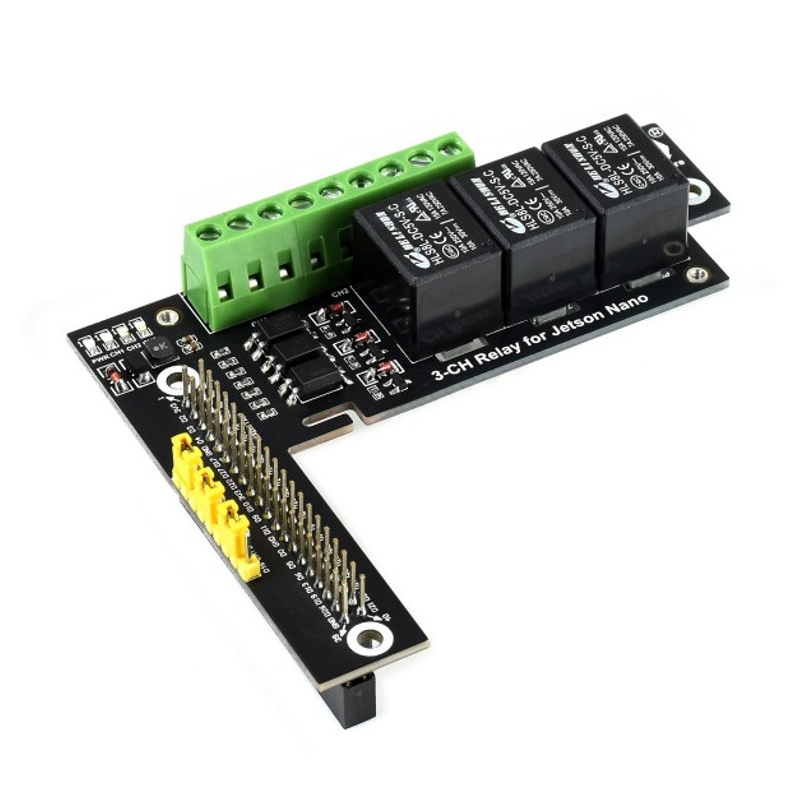

Quality 3-ch relay expansion board designed for Jetson Nano, Optocoupler isolation
3-CH Relay for Jetson Nano

3 channels relay control
Configurable control pin, up to 2x stackable


Features at a glance
  1. Standard 40PIN GPIO header, directly pluggable onto the Jetson Nano
  2. Incorporate quality relay component, max load: ≤5A 250V AC or ≤5A 30V DC
  3. Optocoupler isolation, prevent interference from the high voltage circuitry
  4. Indicators for monitoring the relay operating status
  5. Control pins of relays are configurable via jumpers
  6. Acrylic bottom panel, isolating the Jetson Nano from the relay expansion board
  7. Comes with development resources and user manual (python and python-bottle examples)

What can it do?

it will give your Jetson Nano the ability to control high voltage home appliances, and more...


Tailored for Jetson Nano

Jetson Nano Developer Kit B01 (left) and Jetson Nano 2GB Developer Kit (right)


3-ch relay control

Quality relay component with optocoupler isolation




Isolation bottom panel, prevent interference from the high voltage circuitry


Indicators and selection jumpers

Easy to monitor the relay operating status, Control pins of relays are configurable


What's on board
  1. 40PIN GPIO header
  2. Relay screw terminals
  3. Relay components
  4. Optocouplers
  1. Relay operating indicators
  2. Power indicator
  3. Relay control pin selection jumpers

Pinout definition

Outline dimensions

Resources & Services
Wiki: 3-CH_Relay_for_Jetson_Nano
MRE03042
