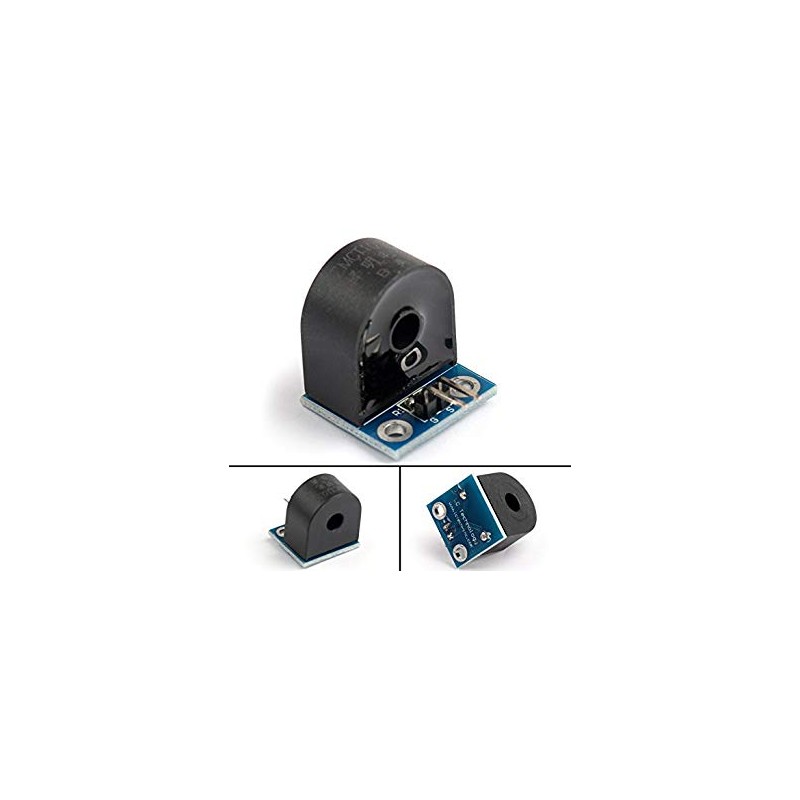

AC Current Sensor module 5A

:SEN14007
€3.50
Tax included

This sensor module allows your microcontroller to monitor AC Current drawn on a line. Simple Current Transformer with a 1000/1 ratio. Measures current up to 10A Max (5A nominal).

Output: 5mA (1mA/1A) into 200ohm Load (~.2V/A)

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description:

This sensor module allows your microcontroller to monitor AC Current drawn on a line. Simple Current Transformer with a 1000/1 ratio.

  • Measures current up to 10A Max.
  • Connects to Analog Input Pins on Microcontroller
  • On board load resistor gives 1mA/A output.
  • Power: None
  • Current: 5A
  • Output: 5mA (1mA/1A) into 200ohm Load (~.2V/A)
  • 2 Pin 2.54mm Pitch Header Out
  • PCB Dimensions: 18.3x17mm

Connections



On the bellow picture there is a measuring example of a 60W soldering iron:

Oscilloscope Read Example

SEN14007
