DVK522, For Cubieboard1/2

:PCO03005
€29.80
€24.80 Save €5.00
Tax included
Quantity
Last items in stock

Cubieboard Expansion Board, features various interfaces, supports Arduino

Overview

DVK522 is an expansion board designed for Cubieboard/Cubieboard2, integrates various components and interfaces for connecting external accessory boards. It's ideal for Cubieboard evaluation and development.


What's on the DVK522

Cubieboard expansion board on board resource

  1. Cubieboard/Cubieboard2 connector
  2. Cubieboard/Cubieboard2 expansion ports
  3. TVOUT interface: video CVBS output, for connecting display devices like TV
  4. VGA interface: video VGA output, for connecting monitor
  5. 7inch capacitive touch LCD RGB interface: for connecting capacitive touch LCD with RGB interface
  6. 7inch capacitive touch LCD LVDS interface: for connecting capacitive touch LCD with LVDS interface
  7. 7inch resistive touch LCD RGB interface: for connecting resistive touch LCD with RGB interface
  8. CAMERA interface: for connecting camera modules like OV7670
  9. ZIGBEE connector: for connecting ZigBee modules like Core2530, supports working with ZB501
  10. UART interface: easily connects to UART modules such as RS485 Board (3.3V), GPS module, etc.
  11. ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
  12. SPI0/I2C1 interface: easily connects to SPI or I2C modules such as MAG3110 Board, AT45DBXX Dataflash, etc.
  13. Arduino connector: for connecting compatible Arduino boards and/or Arduino shields
  14. UART interface (PL2303TA): connects to the UART0 of Cubieboard/Cubieboard2 for debugging
  15. USB interface: USB TO UART (PL2303TA)
  16. ICSP interface: Arduino ICSP
  17. 5V/3.3 V power input/output: usually used as power output, also common-grounding with other user board
  18. 12M crystal: for PL2303TA
  19. PL2303TA: onboard USB TO UART convertor
  20. RTC backup battery: 3.3V battery
  21. 32.768K crystal: for PCF8563
  22. PCF8563: onboard RTC chip
  23. Buzzer
  24. AD keys: 3 common Android keys
  25. User LEDs: 8 LEDs
  26. Power indicator
  27. TVOUT jumper
  28. CAMERA power selection jumper
  29. RTC jumper
  30. RTC power selection jumper
  31. ONE-WIRE, Buzzer, and AD Keys jumper
  32. Arduino Port selection jumper: easily controlling the Arduino connection
  33. User LEDs jumper
  34. Arduino AD selection jumper
    • short the right: while connecting Arduino ADC shield
    • short the left: while connecting Arduino I2C shield
  35. Arduino UART selection jumper
    • short the right: while connecting Arduino UART shield
    • short the left: while connecting Arduino microcontroller board

DVK522 Photos

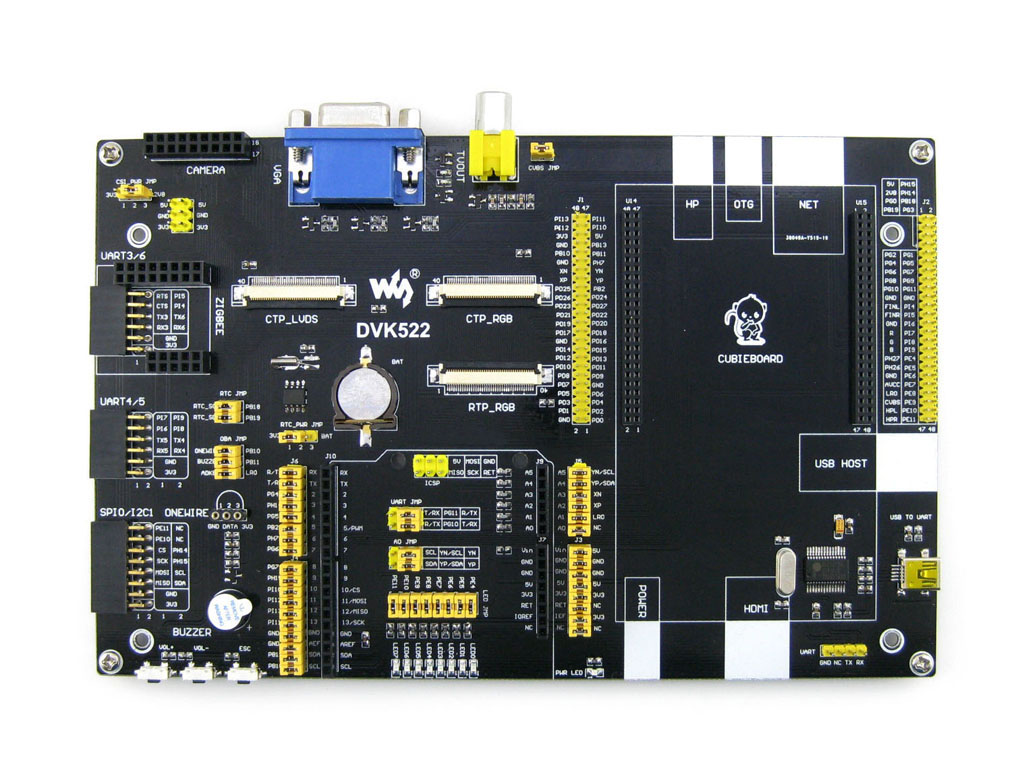

Cubieboard expansion board
DVK522 Cubieboard expansion board

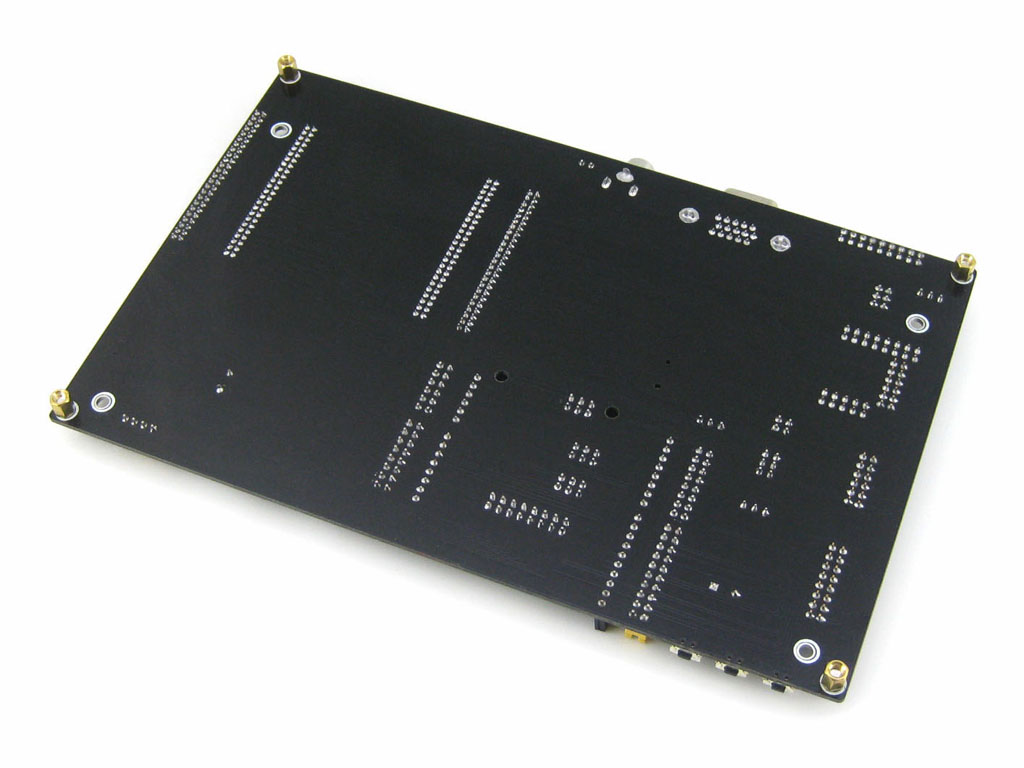

Cubieboard expansion board
DVK522 Cubieboard expansion board back view

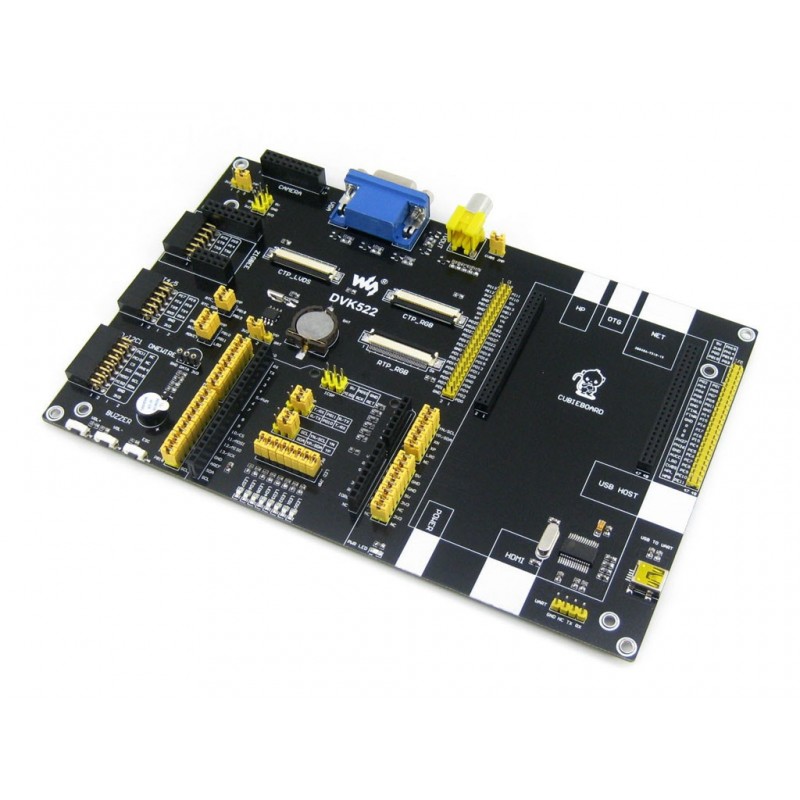

Cubieboard expansion board
DVK522 Cubieboard expansion board

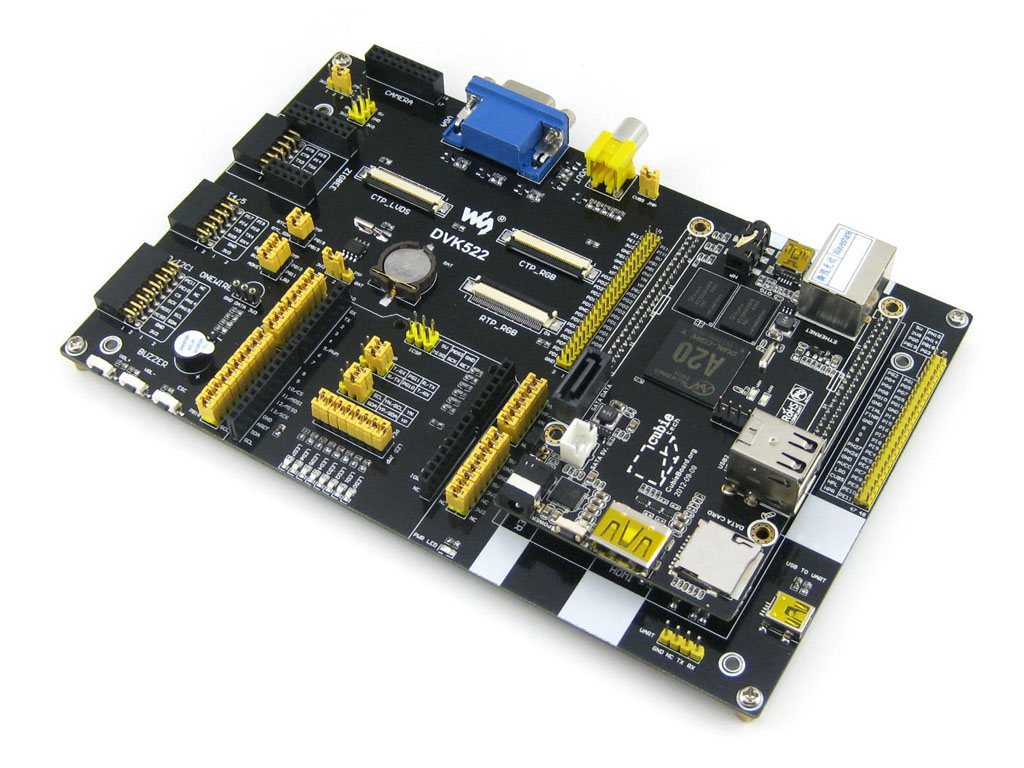

Cubieboard expansion board
Connecting with Cubieboard

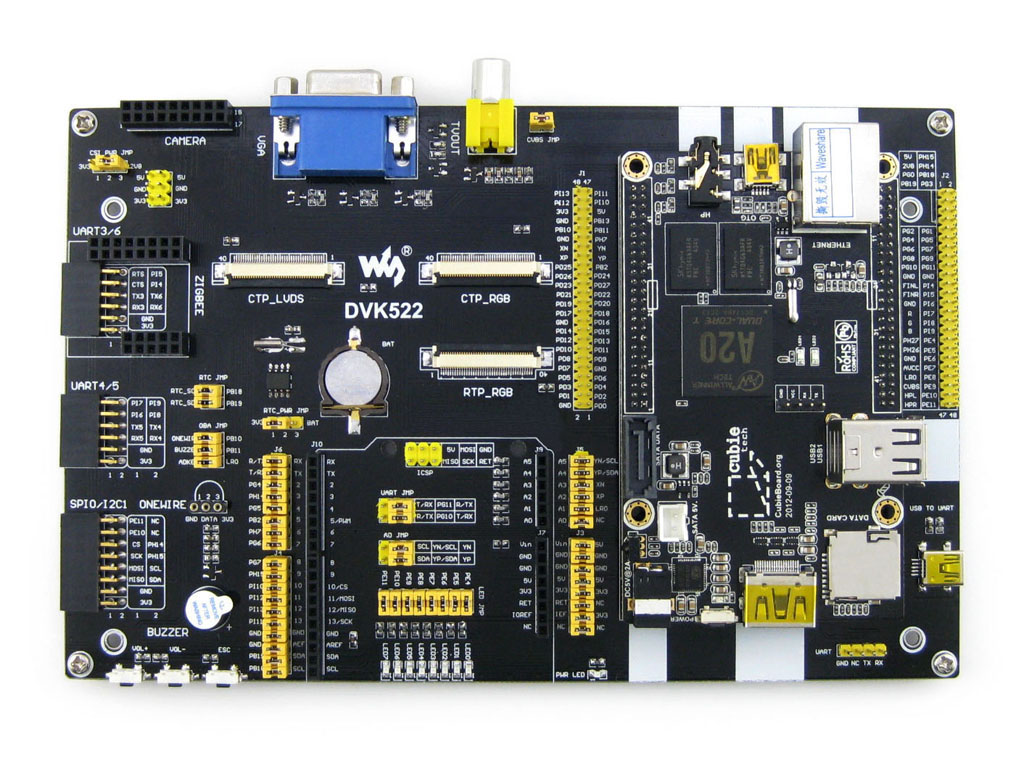

Cubieboard expansion board
Connecting with Cubieboard

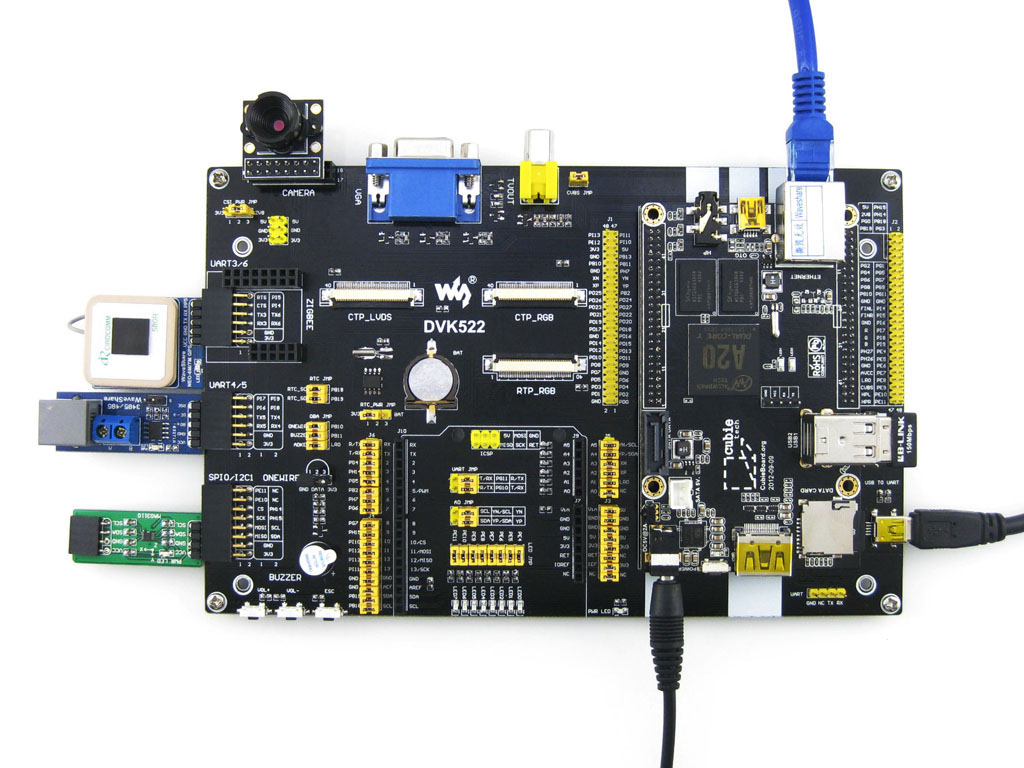

Cubieboard expansion board
Connecting with Cubieboard and accessories
Cubieboard expansion board
Connecting with 7inch capacitive touch LCD

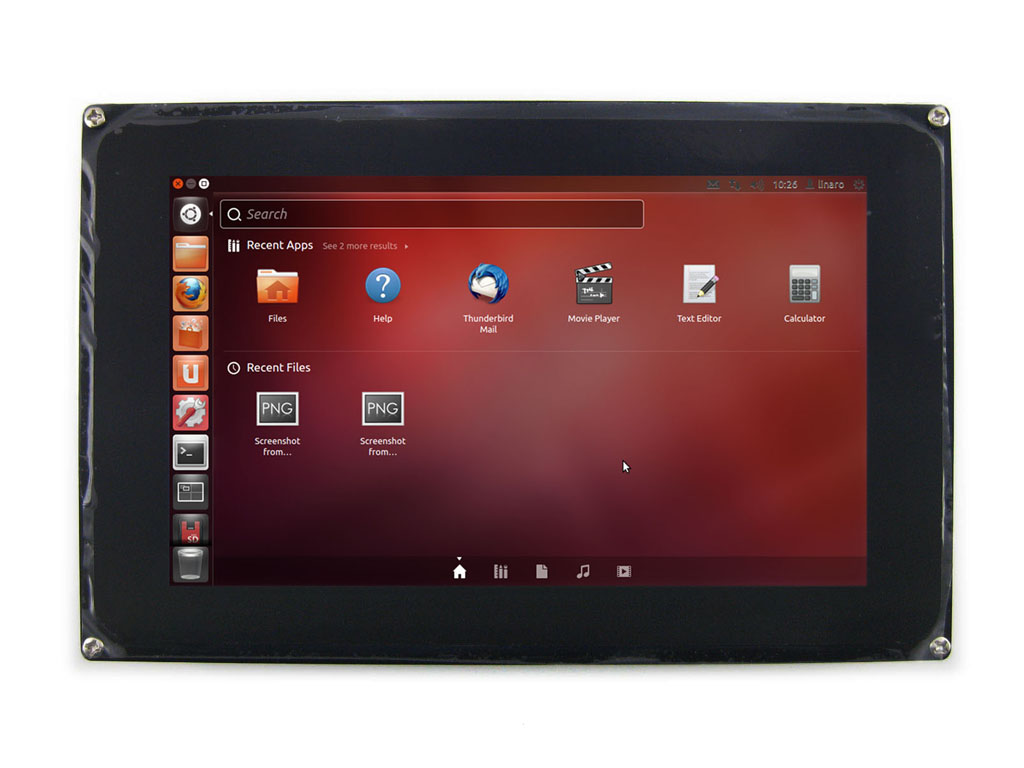

Cubieboard expansion board
7inch capacitive touch LCD displaying demo

Examples

PeripheralInterfaceUbuntuDebian
LED I/O Y Y
Buzzer I/O Y Y
AD keys EVENT3 Y Y
DS18B20 temperature sensor ONE-WIRE Y Y
RTC real time clock RTC1 Y Y
MAG3110 Board I2C1 Y Y
AT45DBXX DataFlash Board SPI0 Y Y
RS485 Board (3.3V) UART3/UART4 Y Y
UART GPS UART3 Y Y
CSI CAMERA (OV7670) VIDEO1 Y Y
USB CAMERA VIDEO0 Y Y
USB WIFI WLAN0 Y Y

Development Resources

Data TypesDescriptionDownload
Documentations User Manual
Developing Product
Burning Firmware
Porting Kernel
Porting Drivers
LiveSuit-User-Guide-EN
Schematics DVK522
Image Ubuntu
Debian
Android
Source Code Source Code
Software   LiveSuitePack
LiveSuitV305_For_Linux32
LiveSuitV305_For_Linux64
putty
PL2303_Prolific_DriverInstaller_v1.8.0
HPUSBDisk
Win32DiskImager
ultra-serial-port-monitor

Wiki: www.waveshare.com/wiki/DVK522

Package Content

  1. DVK522 x1
  2. USB type A plug to mini-B plug cable x 1
  3. 4-pin 2-pin wires pack x 1
  4. 7inch LCD screws pack x 1
