BTBEE Module

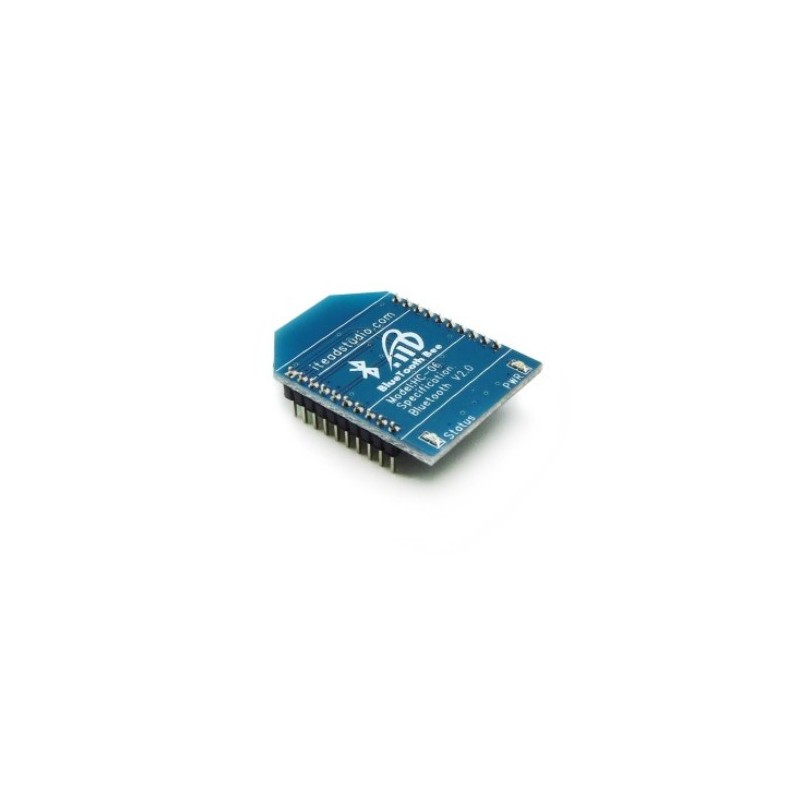

BTBee is an easy to use Bluetooth SPP module compatible with existing Xbee sockets, designed for transparent wireless serial connection setup.

The HC-06 Serial port Bluetooth module is fully qualified Bluetooth V2.0+EDR(Enhanced Data Rate) 3Mbps Modulation with complete 2.4GHz radio transceiver and baseband. It uses CSR Bluecore 04-External single chip Bluetooth system with CMOS technology and with AFH(Adaptive Frequency Hopping Feature).It even has the smallest footprint as small as 12.7mmx27mm. Hope it will simplify your overall design/development cycle.

Features

• Typical -80dBm sensitivity
• Up to +4dBm RF transmit power
• Fully Qualified Bluetooth V2.0+EDR 3Mbps Modulation
• 3.3V Operation, 1.8 to 3.6V I/O PIO control
• UART interface with programmable baud rate
• Integrated PCB antenna
• Bee compatible headers

Software Features

• Default Baud rate: 38400, Data bits:8, Stop bit:1,Parity:No parity, Data control: has.
• Supported baud rate: 9600,19200,38400,57600,115200,230400,460800.
• Use CTS and RTS to control the data stream.
• When a rising pulse is detected in PIO0, device will be disconnected.
• Auto-connect the last device on power as default.
• Permit matched device connect by default.Default PINCODE:1234.
• Auto-reconnect in 30 min when disconnected as a result of beyond the range of connection.

Specification

Documents

Schematic
