This is a sensor that detects ammonia concentration and supports three output modes: analog, I2C, and UART. The probe has been calibrated at the factory, which can quickly and accurately measure the concentration of ammonia in the environment.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
This is a sensor that detects ammonia concentration and supports three output modes: analog, I2C, and UART. The probe has been calibrated at the factory, which can quickly and accurately measure the concentration of ammonia in the environment. Can be widely used in the detection of ammonia in industrial and environmental protection fields.
The probe adopts the electrochemical principle, has the characteristics of strong anti-interference ability, high stability, high sensitivity, etc., and the service life is as long as two years. The sensor has 32 modifiable I2C addresses, an integrated temperature compensation algorithm, and a threshold alarm function, It has good compatibility with mainstream main control devices such as Arduino, ESP32, Raspberry PI. The easy-to-use Gravity interface, coupled with our sample code, can quickly build an ammonia concentration detector.
DFRobot has introduced 12 gas detection sensors in this series, CO, O2, NH3, H2S, NO2, HCL, H2, PH3, SO2, O3, CL2, HF, which are used in exactly the same way and data format, so you can combine them according to your needs.
Strong anti-interference ability
Industrial ammonia detection
Environmental protection device
Detection Gas: Ammonia (NH3)
Detection range: 0~100ppm
Working Voltage: 3.3～5.5V DC
Working Current: ＜5mA
Output Signal: I2C, UART (0~3V), analog voltage
Working Temperature: -20～50℃
Working Humidity: 15～90%RH (non-condensing)
Storage Temperature: -20～50℃
Storage Humidity: 15～90%RH (non-condensing)
Lifespan: >2 years (in the air)
Adapter Plate Size: 37*32mm
Compatibility: Arduino, ESP32, Raspberry pi

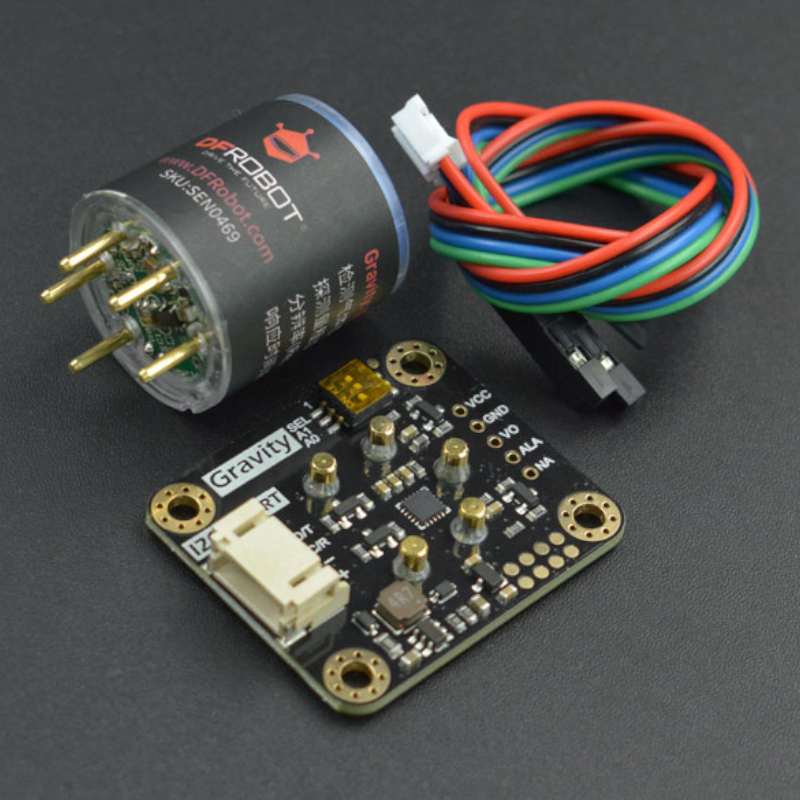

Gravity: NH3 Signal Conversion Board x1
NH3 sensor probe x1
Gravity - 4pin Cable x1
