• New

Grove - Electrical Conductivity Sensor Kit

:SEN08048
€36.54
Tax included

This is a cost-effective electrical conductivity sensor with wide utilization, suitable for Arduino and Raspberry Pi, supports 3.3V and 5V system.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

PRODUCT DETAILS

Feature

  • Widely used for most applications of aquaculture and water quality testing
  • Compact size for easy deployment
  • Support with both Arduino and Rasberry Pi
  • Cost-effective



Description

The electrical conductivity sensor (EC sensor) measures the electrical conductivity in a solution which usually used for aquaculture and water quality testing. The Grove - Electrical Conductivity Sensor is specially designed for a low-cost system with a relatively high accuracy which can cover most applications. The Grove connector and BNC probe interface make it easy to use and very suitable for Arduino and Raspberry Pi project. This Kit includes an EC probe and a driver board, and the driver board support both 3.3V and 5V system.

Note

This product is non-RoHS certified.



Specification

Items Values
Operating voltage 3.3V/5V
EC Range 0-2000us/cm
Resolution ±5%(STP)
Operating temperature 5-80℃
Response time <10sec
Probe Interface BNC



Part list

Items Values

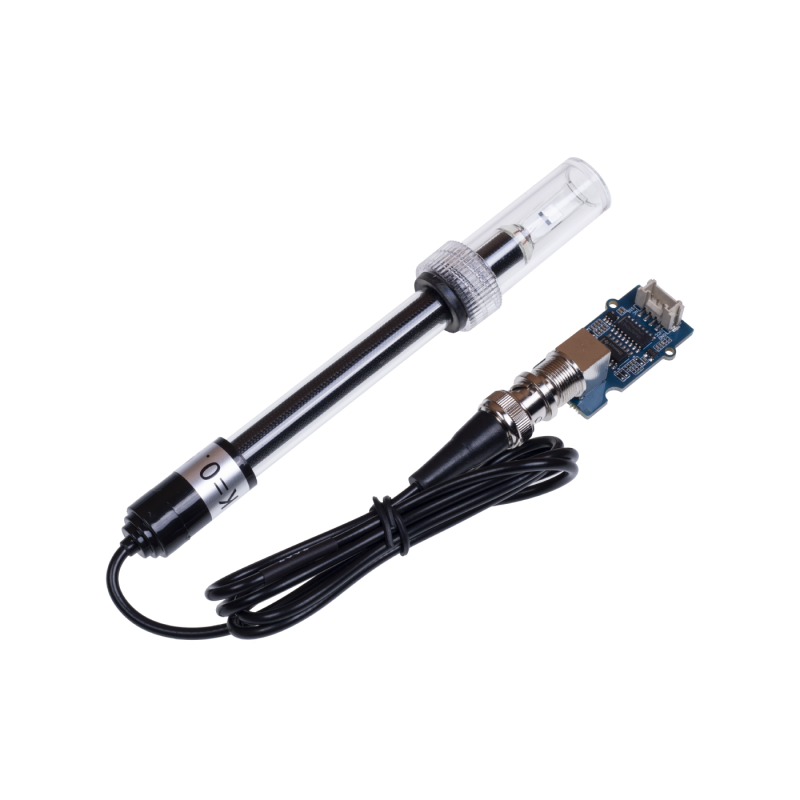

EC Probe 1
Driver Board 1
Grove Cable 1



What is Grove?

Grove makes it easier to connect, experiment, and simplify the prototyping process. No jumpers or soldering required. We have developed more than 300 Grove modules, covering a wide range of applications that can fulfil a variety of needs. Not only are these open hardware, but we also have open-source software.

Note

For all Grove users (especially beginners), we provide you with the guidance of operation. Please read the instructions through the official website before your using the product.



ECCN/HTS

HSCODE 9031809090
UPC



LEARN AND DOCUMENTS

Learn

[Wiki] Grove - EC Sensor Kit

This is the wiki page for this product, which will show you how to use the product, as well as details about the software and hardware.

[Project] Build Biofloc Monitoring System with Wio Terminal

Biofloc fish project monitoring. Water quality maintenance and monitoring in any aquaculture are the essential practices aiming at the success of the growing cycles.

[Blog] Build Your Own Water Quality Monitoring Station with 5 Water Quality Sensors

Water Quality is a complex concept, it related to too many parameters. Therefore constructing a water quality monitoring station is a systematic and complex project. The good news is that with the help of those 5 Grove Water Quality Sensors, you can build your own lightweight water quality monitoring station easily.

SEN08048
