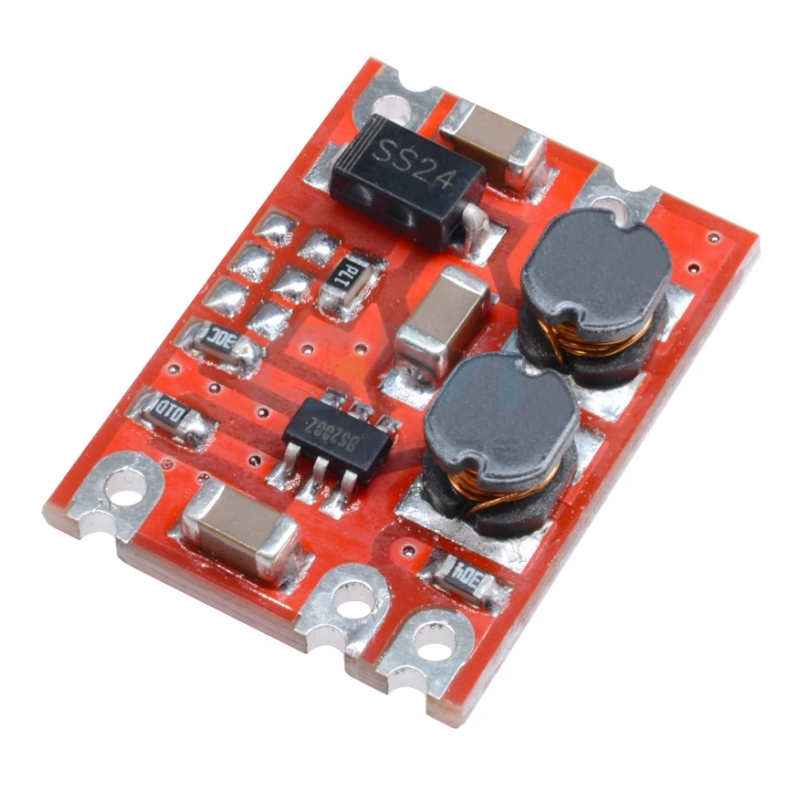

DC-DC AUTOMATIC STEP UP-DOWN POWER MODULE (2.5~15V TO 5.0V 600MA)

:FAL08071
€2.40

The S09 a wide voltage and low power scheme. The DC-DC power module is automatically raised and lowered to support the shutdown function.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Application:

Widely used in communications equipment, digital radio, industrial motherboards, toys, model aircraft, microcontroller motherboards, household electrical appliances, automotive power supply, security monitoring, field collection, street lamps.


Specifications:

  1. input voltage:2.5V-15V

  2. output voltage:5V

  3. output current:0.6A

  4. conversion efficiency:75%

  5. output ripple:<50mV

  6. output accuracy:+-0.1V

  7. working temperature:-20 - +85 celsius

  8. relative humidity:20-90%

  9. size:19*14*4mm

  10. pcb thickness:1.2mm

  11. pcb layers:2 layers

  12. current control:with cut off

  13. cooling method:cooling nature

  14. installation method:SMD or 2.54mm pin

  15. production process:reflow

  16. isolated:no

  17. design aging standards:720 hours without trouble

  18. production factory aging standards:48 hours

  19. service life:35000 hours without trouble

  20. factory inspection standards 3 times:all(factory/aging/out of library test)

  21. fixed switching frequency:1200khz

FAL08071
