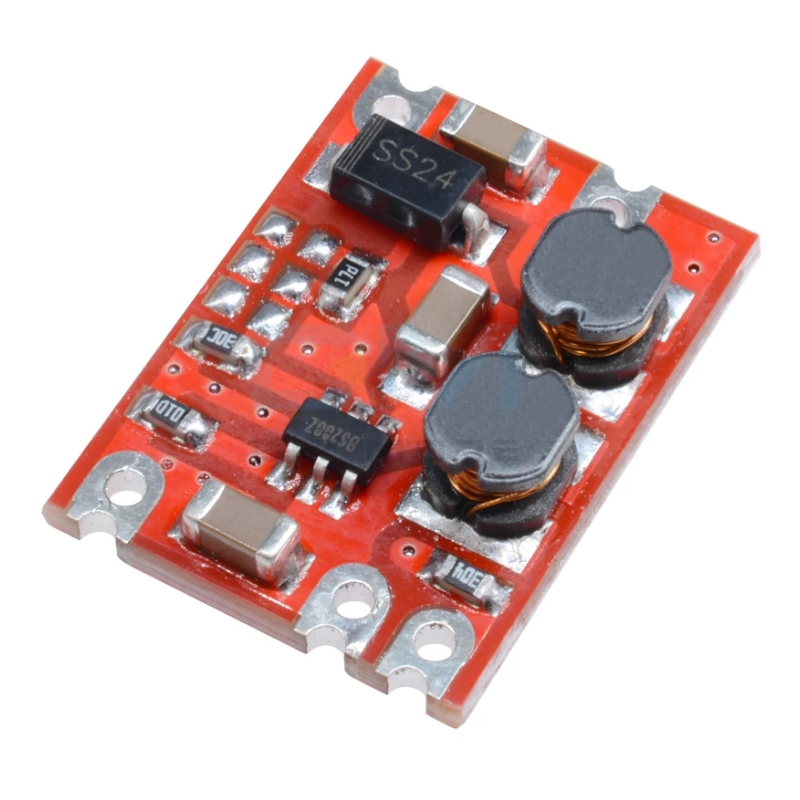

DC-DC Automatic Step Up-down Power Module (2.5~15V to 3.3V 600mA)

:FAL08060
€2.40

The S09 a wide voltage and low power scheme. The DC-DC power module is automatically raised and lowered to support the shutdown function.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features:

The S09 a wide voltage and low power scheme. The DC-DC power module is automatically raised and lowered to support the shutdown function. The maximum input voltage is 15VDC, the quiescent current is less than 200uA, the fixed output is 3.3V and the maximum output current is 600mA. Design work frequency of up to 1.2MHZ, high stability, cost-effective, all industrial-grade components, long working voltage drift-free, suitable for demanding applications, mass production.



Application

Widely used in communications equipment, digital radio, industrial motherboards, toys, model aircraft, microcontroller motherboards, household electrical appliances, automotive power supply, security monitoring, field collection, street lamps.

Chip: original
Input voltage: 3v-15V
Output voltage: 3.3V
Output current: 0.6A
Conversion efficiency: 75%
Ripple output: <50mV
Output accuracy: +-0.1V
Working temperature: -20 ~ +85 Celsius
Relative humidity: 20-90%
Size: 19*14*4mm
Pcb thickness: 1.2mm
Pcb layers: 2 layers
Current control: with cut off
Cooling method: cooling nature
Installation method: SMD or 2.54mm pin
Production process: reflow
Isolated: no
Design aging standards: 720 hours without trouble
Fixed switching frequency: 1200khz

FAL08060
