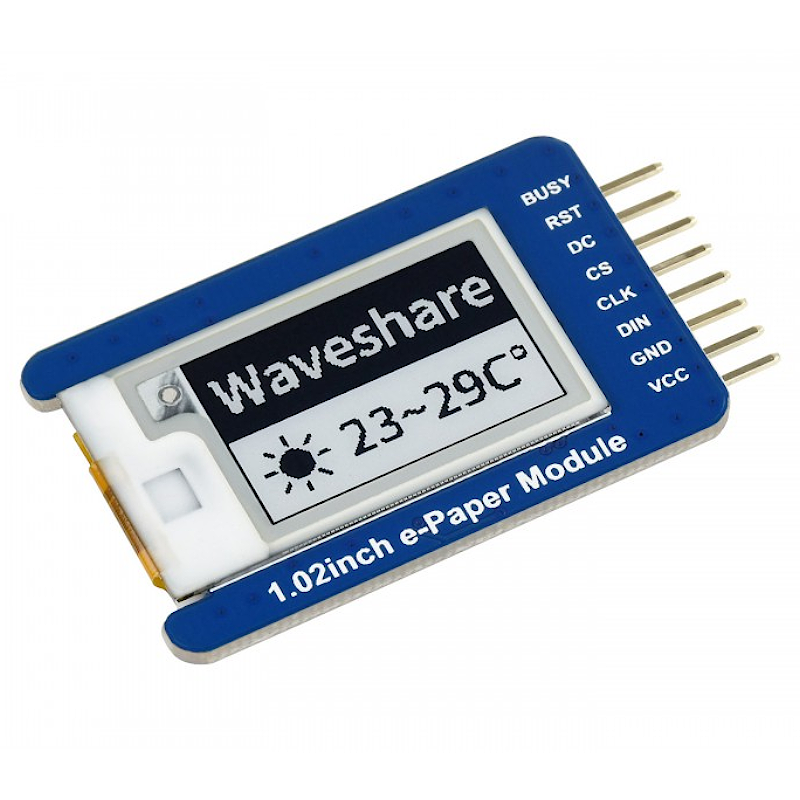

128×80, 1.02inch E-Ink display module, black/white dual-color - Waveshare 17575

: LCD01156
€14.90
Tax included

This is an E-Ink display module, 1.02inch, 128×80 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Overview

This is an E-Ink display module, 1.02inch, 128×80 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.



Features

  1. No backlight, keeps displaying last content for a long time even when power down

  2. Ultra low power consumption, basically power is only required for refreshing

  3. SPI control interface, for working with host boards such as Raspberry Pi/Jetson Nano/Arduino/Nucleo

  4. Onboard voltage translator, compatible with 3.3V/5V MCUs

  5. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)



Specifications

  1. Operating voltage: 3.3V / 5V

  2. Interface: 3-wire SPI, 4-wire SPI

  3. Outline dimension: 42mm × 27mm

  4. Display size: 21.76mm × 14mm

  5. Dot pitch: 0.175 × 0.17

  6. Resolution: 128 × 80

  7. Display color: black, white

  8. Grey scale: 2

  9. Full refresh time: 2s

  10. Refresh power: 26.4mW(typ.)

  11. Standby power: <0.017mW

  12. Viewing angle: >170°



Interface

SYMBOL

DESCRIPTION

VCC

3.3V / 5V power input

GND

Ground

DIN

SPI MOSI pin

CLK

SPI SCK pin

CS

SPI chip selection, low active

DC

Data/Command selection (high for data, low for command)

RST

External reset, low active

BUSY

Busy status output, low active



Dimensions

1.02inch e-Paper Module dimensions



Development Resources

Wiki : www.waveshare.com/wiki/1.02inch_e-Paper_Module





Package Content

Weight: 0.012 kg

  1. 1.02inch e-Paper Module x1

  2. 8PIN squid wire x2
