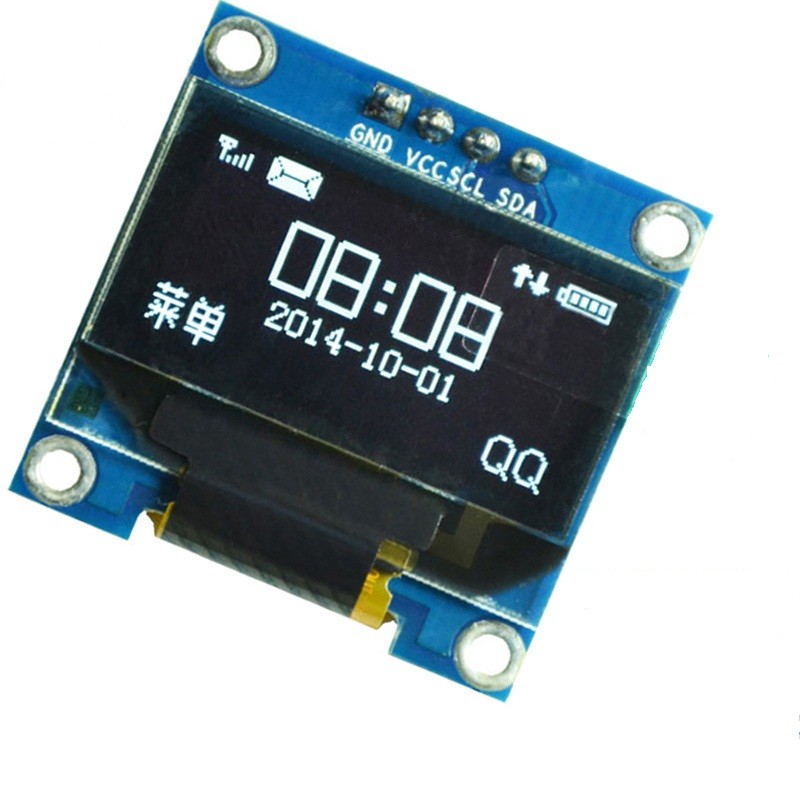

0.96inch 128X64 OLED i2c Display White SSD1306 Driver

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Product description:

This is a i2c graphic display with 128x64pixel. It is the ideal solution to present values from sensors and other type of information for your Arduino projects!

Specifications:

• Pixel Color: White
• Size: 0.96''
• Resolution: 128X64
• Supported platforms: Arduino, 51 series, MSP430 series, STIM32 / 2, SCR chips
• Low power consumption: 0.04W during normal operation Support wide voltage: 3.3~5Vdc
• Working temperature: -30~80 degrees
• Driver IC: SSD1306
• Communication: IIC, only two I/O ports
• Backlight: OLED self light, no backlight Interface
• VCC: 3.3~5Vdc
• GND: Ground
• SCL: Serial Clock
• SDA: Serial Data

Arduino Video Tutorial:

Applications:

• MP3, MP4, watch Head-mounted displays
• Meters and other intelligent instruments
• Design any pretty patterns for your beloved electronic devices!
