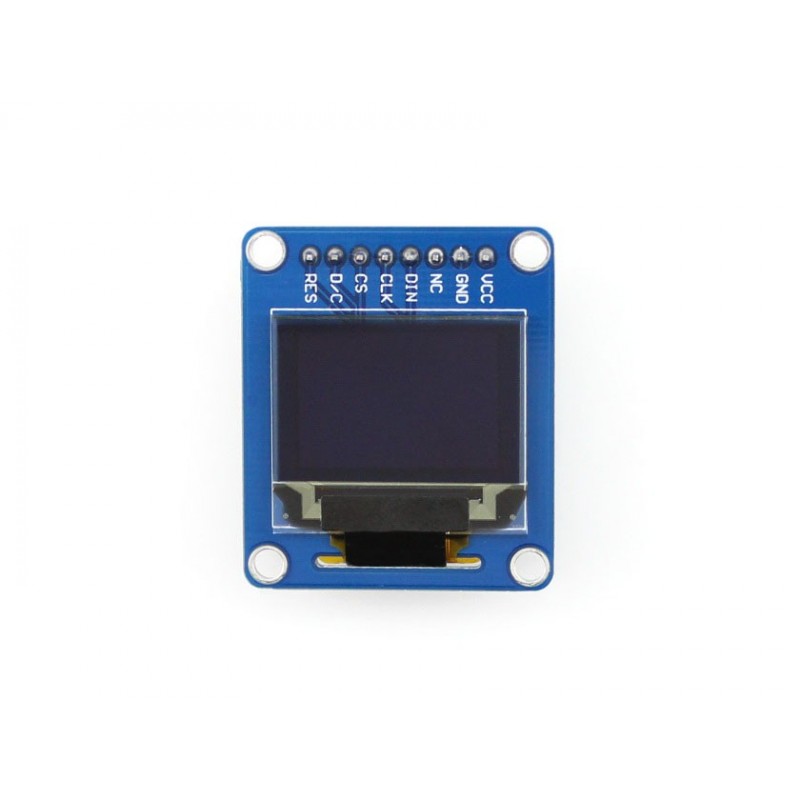

0.95inch RGB OLED - straight/vertical pinheader
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Key Parameters
Driver Chip |
SSD1331 |
---|---|
Interface |
SPI |
Resolution |
96×64 |
Display Size |
0.95inch |
Colors |
65K colorful |
Visible Angle |
>160° |
Operating Temp. (℃) |
-20~70 |
Storage Temp. (℃) |
-30~80 |
Operating Voltage |
3.3V / 5V |
Interface
PIN NO. |
SYMBOL |
DESCRIPTION |
---|---|---|
1 |
VCC |
Power positive (3.3~5V power input) |
2 |
GND |
Ground |
3 |
NC |
NC |
4 |
DIN |
Data input |
5 |
CLK |
Clock signal input |
6 |
CS |
Chip selection, low active |
7 |
D/C |
Command signal, low level for command, high level for data |
8 |
RES |
Reset signal, low active |
Ordering Info
- 0.95inch RGB OLED (B): straight/vertical pinheader
Downloads
Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/0.95inch_RGB_OLED_(B)
Dimension
Selection Guide
Part Number |
Color |
Resolution |
Display Size (mm×mm) |
Interfaces |
Driver |
Dimension (mm×mm) |
Pinheader |
---|---|---|---|---|---|---|---|
0.95inch RGB OLED (A) |
65K colorful |
96×64 |
20.14×13.42 |
SPI(4-wire SPI) |
SSD1331 |
31.7×37.0 |
curved/horizontal |
0.95inch RGB OLED (B) |
65K colorful |
96×64 |
20.14×13.42 |
SPI(4-wire SPI) |
SSD1331 |
31.7×37.0 |
straight/vertical |
0.96inch OLED (A) |
1/4 yellow section, 3/4 blue section |
128×64 |
21.7×11.2 |
3-wire SPI, 4-wire SPI, I2C |
SSD1306 |
33.0×33.5 |
curved/horizontal |
0.96inch OLED (B) |
1/4 yellow section, 3/4 blue section |
128×64 |
21.7×11.2 |
3-wire SPI, 4-wire SPI, I2C |
SSD1306 |
33.0×33.5 |
straight/vertical |
1.3inch OLED (A) |
Blue |
128×64 |
29.42×14.7 |
3-wire SPI, 4-wire SPI, I2C |
SH1106 |
40.5×37.5 |
curved/horizontal |
1.3inch OLED (B) |
Blue |
128×64 |
29.42×14.7 |
3-wire SPI, 4-wire SPI, I2C |
SH1106 |
40.5×37.5 |
straight/vertical |
Related products
