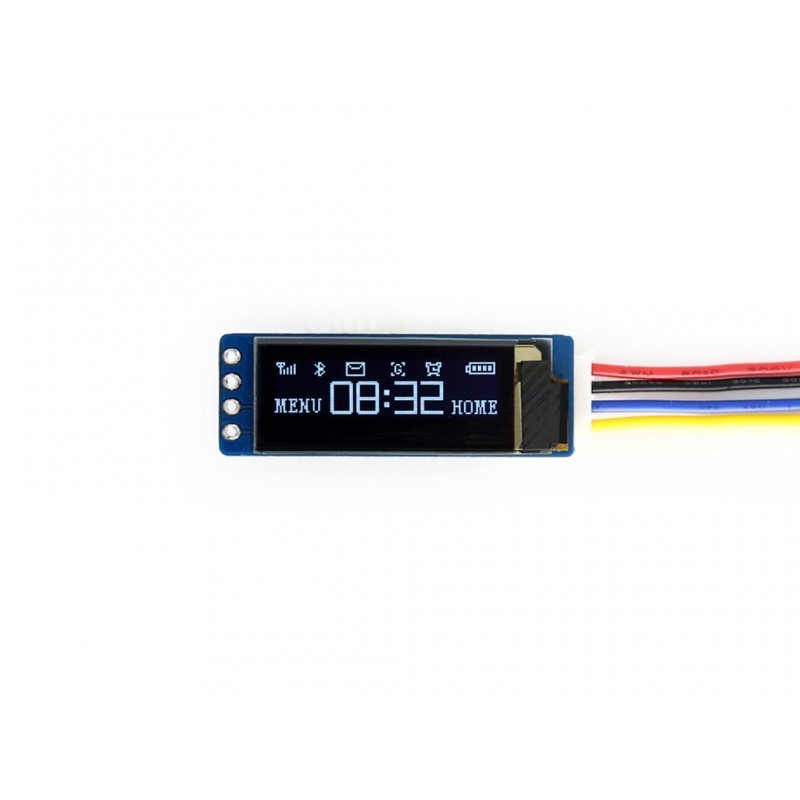

128x32, General 0.91inch OLED display Module

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Overview

This is a general OLED display Module, 0.91inch diagonal, 128x32 pixels, with embedded controller, communicating via I2C interface.

Features

• 0.91inch small form factor
• 128x32 high resolution
• 16-bit grey level, better display effect
• I2C interface, requires only two signal pins
• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

• Driver: SSD1306
• Interface: I2C
• Display color: White
• Resolution: 128x32
• Viewing angle: >160°
• Operating voltage: 3.3V / 5V
• Dimension: 36 x 12.5 (mm)

Interface

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/0.91inch_OLED_Module

Weight: 0.007 kg

1. 0.91inch OLED Module x1
2. PH2.0 4Pin x1
