128x128, General 1.5inch OLED display Module

:LCD01082
€11.90
Tax included

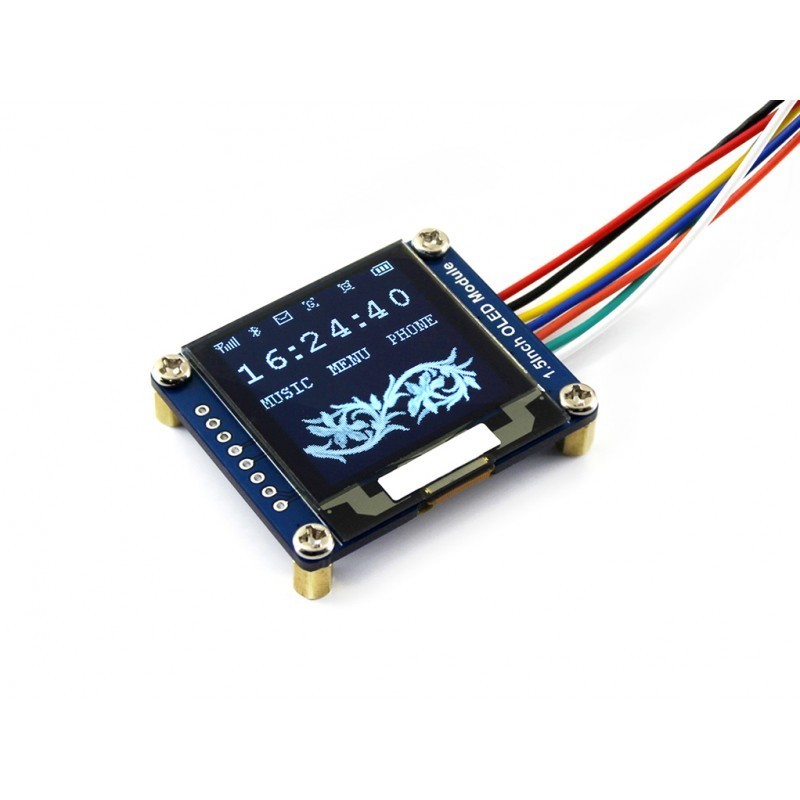

This is a general OLED display Module, 1.5inch diagonal, 128x128 pixels, 16 gray scale, with embedded controller, communicating via SPI or I2C interface.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features

  • 128x128 high resolution
  • 16 gray scale, better display effect
  • Supports SPI or I2C interface, configured via onboard resistor
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Driver: SSD1327
  • Interface: SPI / I2C
  • Display color: White
  • Gray scale: 16
  • Resolution: 128x128 (most other competitive products are typically 128x64)
  • Viewing angle: >160°
  • Operating voltage: 3.3V / 5V
  • Dimension: 44.5 x 37 (mm)

Interface

SYMBOL DESCRIPTION
VCC Power (3.3~5V input)
GND Ground
DIN Data input
CLK Clock data input
CS Chip selection, low active
DC Data/Command selection (high for data, low for command)
RST Reset, low active

There are two available drive interfaces for this OLED module: 4-wire SPI and I2C:

  BS CS DC DIN CLK
4-wire SPI 0 Chip select Data/Command MOSI SCK
I2C 1 NC I2C address selection SDA SCL

Dimensions

1.5inch OLED Module dimensions

Development Resources

Wiki : www.waveshare.com/wiki/1.5inch_OLED_Module



Weight: 0.02 kg

  1. 1.5inch OLED Module x1
  2. PH2.0 7Pin x1
LCD01082
