CC2530 Eval Kit4

:COM04013
€44.20
Tax included
Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



Overview

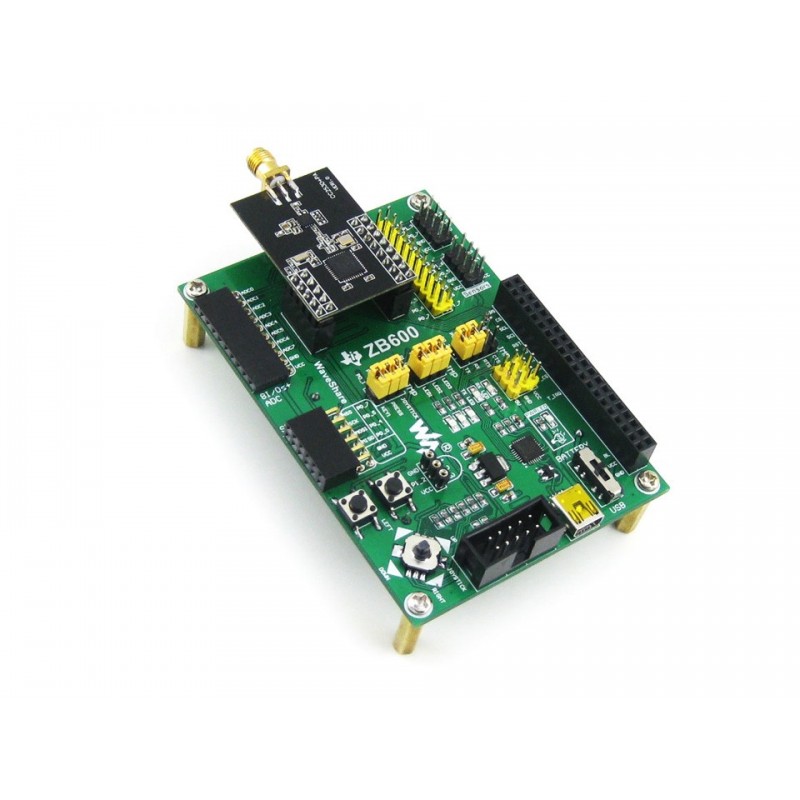

CC2530 Eval Kit4 is a ZigBee development/evaluation kit designed for CC2530F256, consists of the mother board ZB600 and the ZigBee moduleXCore2530. LCD and modules are also included.

Basically this kit can be used in two aspects :

  • Develop application with the provided firmware
    Combined with our provided firmware, you can use this kit to set up a minimal ready-to-run ZigBee system for testing or evaluating, and requires NO knowledge about the complicate ZigBee Specification
  • Develop your own firmware
    In this case, you should start from the very underlying to create your solution, what's more, debuggers (like CC Debugger) and knowledge about ZigBee Specification are also required



ZB600 Features

  • Onboard battery holder, multi power supplies are available
  • All the IOs are accessible for easy expansion
  • Integrates CP2102 for debugging
  • LEDs and user keys
  • Onboard sensor interface, supports connecting various sensors




What's on the ZB600

ZigBee development board on board resource

  1. ZigBee module connector: for easily connecting ZigBee modules
  2. 8I/Os+ADC interface
  3. SPI+UART interface
  4. Debugging interface
  5. USB interface: USB to UART via the onboard convertor CP2102
  6. LCD interface
  7. Sensor interface: for connecting sensors like Temperature sensor, Humidity sensor, Gas sensor, or Flame sensor, etc.
  8. MCU pins connector: all the MCU pins are accessible on expansion connectors for further expansion
  9. ONE-WIRE interface
  10. 5V/3.3V power input/output: usually used as power output, also common-grounding with other user board
  11. Power indicator
  12. Serial port RX/TX indicator
  13. User LEDs
  14. Power switch
  15. CP2102
  16. AMS1117-3.3
  17. Reset button
  18. User key
  19. Joystick: five positions
  20. UART0 jumper
  21. User LED jumper
  22. User key and Joystick jumper



XCore2530 Features

  1. As easy to use as any UART modules
  2. Provided firmware : Coordinator, Router, End Device
    • Router firmware is preloaded by default
  3. Supports sending large data packet & fast broadcasting via UART
  4. Supports programming via UART (thanks to the Bootloader, and an serial module is required)
  5. Supports configuring via upper computer software : working mode, UART port, baudrate, signal channel, etc.
  6. MISC
    • Auto networking (at least 1 Coordinator and 1 Router are required)
    • Real-time monitoring the signal intensity between Coordinator, Router, and End Device
    • Onboard power amplifier RXF2401, achieves farther communication distance



XCore2530 Specifications

  1. Onboard chip: CC2530F256RHAR
  2. Communication distance (open and wide operating environment):
    • Absolute maximum: over 1500 meters
    • Stable communication: over 1300 meters
    • Auto connecting: over 1000 meters
  3. Frequency range: 2.4GHz
  4. Wide supply-voltage range (2 V–3.6 V)
  5. Operating temperature: -40℃ ~ 85℃
  6. Serial port baud rate: 38400bps (default), different baud rates are available by software configuration
  7. Expansion pinheader: all the I/Os except P1_1, P1_4
  8. Pinheader pitch: 2.54mm
  9. Spacing between pinheaders on the left side and the right side: 22.86mm (9x2.54mm)
  10. Antenna: 2.4G 2DB 360° omni-directional



CC2530F256RHAR Features

  1. Frequency range: 2.4GHz
  2. 16 transfer chains, software configurable according to environmental conditions
  3. Radio baud rate up to 250kbps
  4. High-Performance and Low-Power 8051 microcontroller core with code prefetch
  5. 2.4-GHz IEEE 802.15.4 compliant RF transceiver
  6. Wide supply-voltage range (2 V–3.6 V)
  7. Watchdog timer, battery monitor, and temperature sensor
  8. 12-Bit ADC with 8 channels and configurable resolution
  9. 2 powerful USARTs with support for several serial protocols
  10. IR generation circuitry
  11. General-Purpose timers (One 16-Bit, Two 8-Bit)
  12. AES security coprocessor
  13. 21 General-Purpose I/O pins (19 × 4 mA, 2 × 20 mA)



Photos



Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/CC2530_Eval_Kit4
