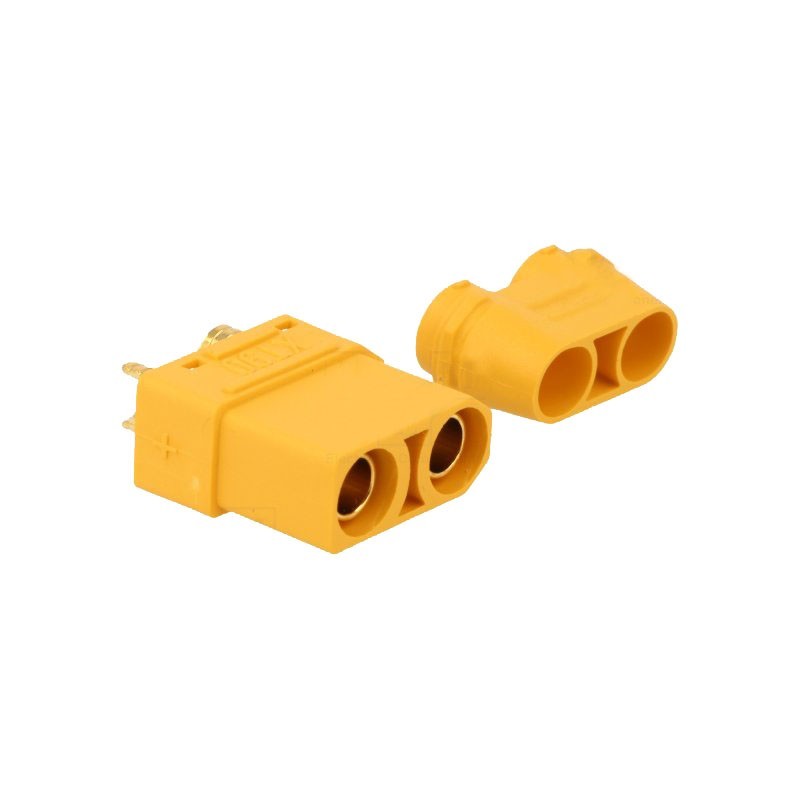

XT90 female plug

:CON03052
€0.98
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Manufacturer AMASS
Connector plug
Type of connector DC supply
Connector series XT90
Kind of connector female
Number of pins 2
Mechanical mounting for cable
Electrical mounting soldered
Contact plating gold flash
Colour yellow
Current rating 90A
Rated voltage 500V
Flammability rating UL94V-0
Operating temperature -20...120°C
Spatial orientation straight
Contact material brass
Wire size 10AWG
Body material polyamide
Mechanical durability 1000cycles

Additional information

  • Gross weight: 7.76 g

Datasheet

CON03052
