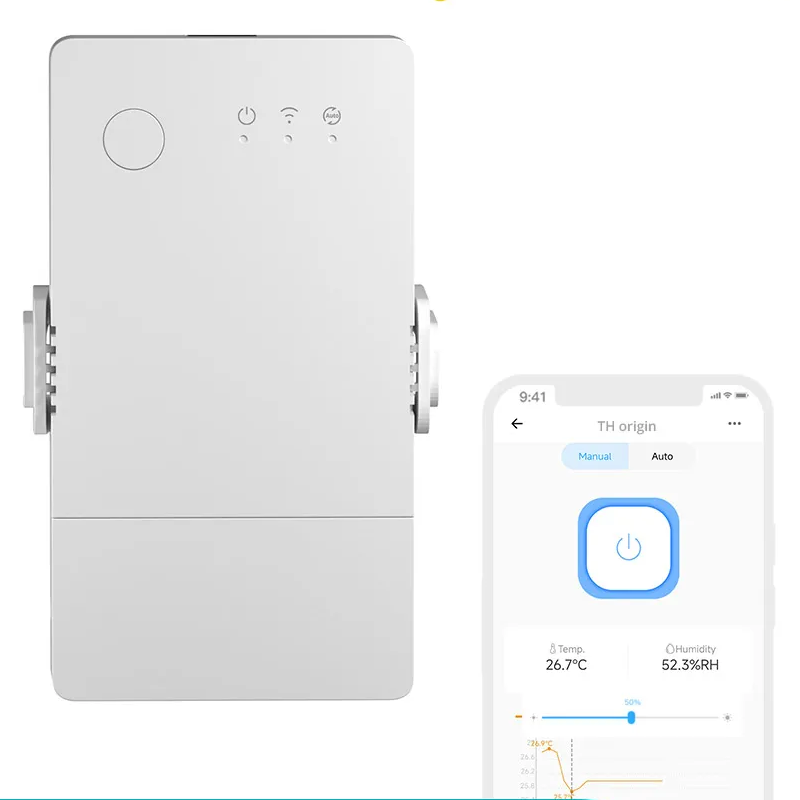

SONOFF THR316 Origin Smart Temperature and Humidity Monitoring Switch (TH10/16 Upgrade Version)

: MRE04048
€8.54

【20A Max Output】Support to connect 20A Max high load, compatible with more home appliances.


【6-Month Temp & Humi Historical Data by Hours】 Support to check the temp & hum history data by hour, day and month. Past 6-month history data can be exported in .xlsx format and accurate to hour.


【Local Automatic Control】Support LAN control, the device can turn on/off automatically according to the temp & humi thresholds at different time periods. You can set 8 automatic control programs for you to save electricity bills and create comfortable surroundings.


【Voice Control】Compatible with Alexa, Google Assistant. Just speak out your command, they can do on/off as you say, and check the temperature and humidity for you.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



TH 10/16 Upgraded to TH Origin



SONOFF TH Origin (the upgrade version of TH10/TH16) is a smart temperature and humidity monitoring switch with ESP32 chip, it keeps monitoring the temperature and humidity in real time, once they reach your preset threshold or the device's on/off state changes, you will receive the push notification on the phone. SONOFF TH Origin supports 20A/16A max loads, compatible with more home appliances. TH Origin support to check 6-Month Temp & Humi historical data accurate to the hour. In the smart scene, temperature, humidity, on, off support setting as the trigger, on, off, invert as execute actions. Support adding SONOFF devices to Home Assistant for control and automation through eWeLink add-on.

SONOFF TH Origin supports three kinds of temperature monitor and humidity monitor sensors—THS01 Temp & Humi Sensor, DS18B20 waterproof Temp sensor, and MS01 Soil Moisture Sensor. The sensor connector is upgraded to RJ9, supporting hot-plugging making the connection more stable and reliable. So TH Origin has wide application scenes, like heated swimming pool, irrigation system, fermentation room, reptile terrarium, greenhouse grown, etc.

The RL560 sensor extension cable can connect the SONOFF temperature and humidity sensors to extend your device's distance. THS01, DS18B20 can be extended to 60M, and MS01 Soil Moisture Sensor can be extended to 10M.

THS01 Sensor

  • Sensor Type: Temperature & Humidity sensor
  • Connector type: RJ9 4P4C
  • Temperature Measuring Range: –40℃~+85°C
  • Humidity Measuring Range: 0~100%RH
  • Cable Length: 50cm

DS18B20 Sensor

  • Sensor Type: Waterproof temperature sensor
  • Connector type: RJ9 4P4C
  • WorkigTemperature: -55℃~+125℃
  • Length: 50cm

MS01 Sensor

  • Sensor Type: Soil Moisture Sensor
  • Humidity Measuring Range: 0~100%RH
  • Operating Temperature Range: 0℃~60°C
  • Cable Length: 50cm

RL560 Sensor Extension Cable

  • Conductor resistance: max.10Ω
  • Insulation resistance: min.5MΩ
  • Length: 5m cable length & Max. 60m extendable length.

Documents

MRE04048
