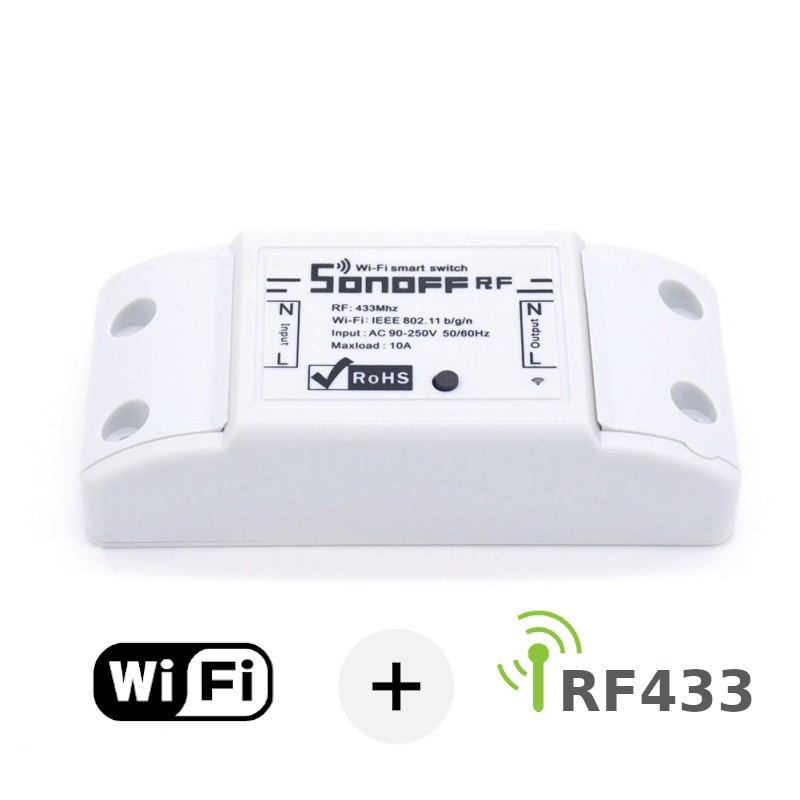

Sonoff RF- WiFi Wireless Smart Switch with RF receiver for Smart Home

: COM02017
€7.15

Sonoff RF is a cost effective, smart home solution which is designed and produced by ITEAD. Sonoff RF is a wireless switch, based on WiFi that can connect to appliances of different types and brands. Sonoff RF transmits data to a cloud platform.

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

sonoff design

Overview

Sonoff RF switch is a Sonoff version with a 433MHz RF receiver module inside. This wireless switch can be used together with the RF remote controller, which enables you to control appliances in indoor environment. The remote control switch allows users remote turn on/off connected appliances via app EWeLink from anywhere in the world.

Sonoff wireless power switch is an affordable device that provides customers with smart home control. It is a wireless electrical switch that can connect to a wide range of appliances. Sonoff wireless switch transmits data to a cloud platform through the WiFi Router, which enables users to remotely control all the connected appliances, via the APP eWeLink. The cloud server of Sonoff RF is Amazon AWS global server.

Sonoff RF switch makes all home appliances smart. As long as the mobile has network, customers can remotely control the appliances by turning them on off from anywhere at any time. Another feature available is to set timing schedules for the appliances, which can include countdown, scheduled on/off, and can thus, help customers maintain an easy life.

The APP eWeLink enables users to control appliances easily. The iOS version of the application can be downloaded in App Store while the Android version in Google Play.

Manual for Sonoff WiFi Wireless Switch

Smart Home Review Collections

ESP8266 Datasheet

Packing List

  • Sonoff RF *1
  • Screw *4

Note:

  • Sonoff RF contains 433Mhz RF receiver,
  • Customers need to buy an extra RF remote controller to control the product locally.



Check out the amazing features of Sonoff RF below:



Features

  • Supports WiFi network.
  • Supports 433MHz RF remote.
  • Supports status tracking: home appliances status is timely provided to the eWeLink.
  • Supports remote turn on or off for added devices.
  • Supports max 8 timing tasks for each added device.
  • Supports numerous WiFi smart switches one smart phone.
  • Easy installation and handling
  • Can be activated immediately

eWeLink

Sonoff functions

Sonoff and Slampher Global Cloud Server

Specification

  • Voltage range: 90-250v AC(50/60Hz)
  • Max current: 10A
  • Max Power: 2200 watts
  • Dimensions: 88*38*23mm (L*W*H)
  • Color: White
  • Humidity: 5%-90%RH, Non-condensing
  • Wireless Frequency: 2.4Ghz
  • Operating Temperature: 0ºC-40ºC(32°F-104°F)

Sonoff Schematic

Smart Home Product List

Product NameFeatureInput VoltageMax CurrentMax PowerWireless FrequencyDatasheetShopping
Sonoff Wireless control switch 90~250V AC 10A 2200W 2.4Ghz Click Click
Sonoff RF 433 RF remote 90~250V AC 10A 2200W 2.4Ghz Click Click
Sonoff SV Low voltage Input 5~24V DC 10A 240W  2.4Ghz Click Click
Sonoff TH10/TH16 Monitor and set Temp.&Hum. 90~250V AC 10A/16A 2200W(10A)/3500W(16A) 2.4Ghz Click Click
 Sonoff Dual Remote control 2 devices  90~250V AC 16A 3500W  2.4Ghz Click  Click
 Sonoff Pow Report power &power usage  90~250V AC 16A 3500W  2.4Ghz Click  Click
Sonoff 4CH 4-channel WiFi Wireless Switch  90~250V AC 10A 2200W  2.4Ghz Click  Click
Sonoff LED App Control Dimming LED  180~265V AC 0.6A 42W  2.4Ghz NO Click
BN-SZ01 App Control Ceiling LED  180~264V AC 0.1A 18W  2.4Ghz NO Click
 Sonoff Touch WiFi wall touch switch  90~250V AC 2A 400W  2.4Ghz NO Click
Slampher Wireless control light holder 90~260V AC 2A 200W 2.4Ghz Click Click
S20 Smart Socket Smart socket 90~250V AC 10A 2000W 2.4Ghz Click Click
iFan Smart fan 185~264V AC 1A 60W 2.4Ghz NO Click
1 Chnl Inching/self-locking Switch Access control 5V/12V DC 10A 50/120W 2.4Ghz NO Click
Sonoff SC Monitor indoor environment usb 5V 80mA 0.4W 2.4Ghz Click Click

For technical support, please go to Itead smart home forum

Additional Information

Weight 52 g
Discontinued No
Model sonoff-rf
Link Wiki No
Works With Google Nest Yes
Works With Amazon Alexa Yes
Ewelink Support Yes
COM02017
