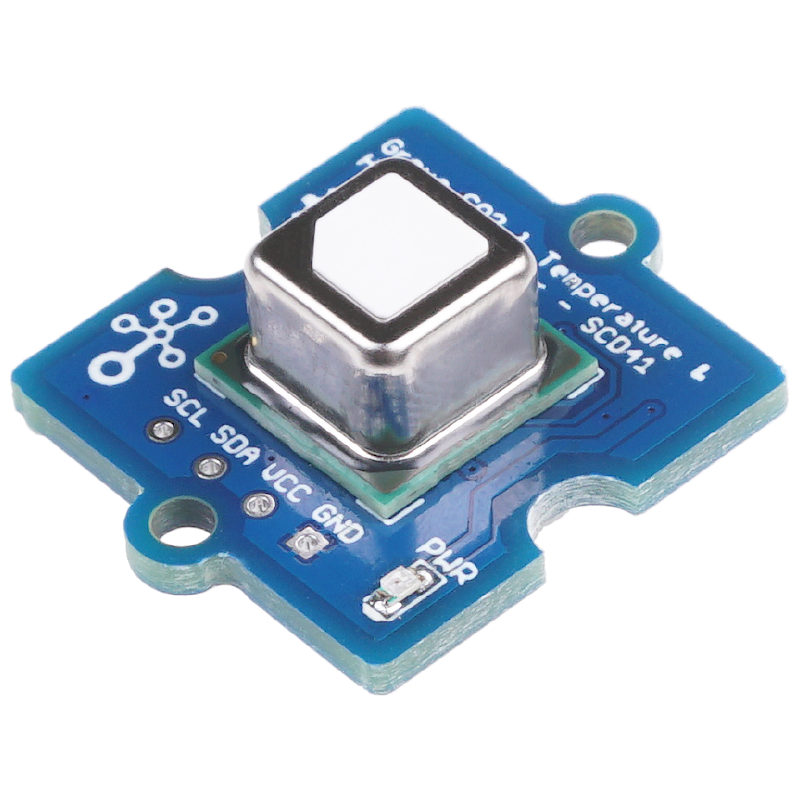

Grove 3-in-1 environmental sensor: CO2 & Temperature & Humidity Sensor (SCD41)

: SEN12026
€69.90
Tax included

The Grove - CO2 & Temperature & Humidity Sensor - SCD41 is a small but powerful module which made by Sensirion. It is a multiple function sensor which can measure temperature, pressure, humidity and CO2 at the same time. It is based on the SCD41 module and you can use this sensor in your GPS, IoT devices or other device which needs those four parameters.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

The Grove - SCD41 is a compact yet powerful 3-in-1 environmental sensor for CO2, Humidity and Temperature measurement. Based on Sensirion SCD41, the photoacoustic NDIR sensor technology enables high accuracy and wide measurement range. Its miniture size, large supply voltage, high robustness and adjustable power consumption allow it to perfectly integrate into a variety of environmental monitoring applications such as Smart Ventilation System.



Features

  1. Photoacoustic NDIR sensor technology PASens®：Embedded Sensirion SCD41 enables real-time CO2 detection with a high accuracy of up to ±(40 ppm + 5 %)  and a wide measurement range of 400 to 5,000 ppm

  2. 3-in-1 environmental sensor: Integrated humidity and temperature sensor comes with algorithm that enables superior on-chip signal compensation and addition RH and T outputs

  3. Compact size: the smallest form factor of 10.1 x 10.1 x 6.5 mm3 allows space-effective integration

  4. Fit for various applications base on uses' need: Supports large supply voltage of 2.4 V – 5.5 V, robustness towards external stresses and the adjustable power consumption down to < 0.4 mA avg



Application

  1. Air Purifier

  2. Environmental Monitoring

  3. Plant Environmental Monitoring System

  4. Arduino weather station



Specification

Parameter

Value

Input voltage

3.3V / 5V

Operating range

-10~+60℃; 0-100% r.H.; 400-5,000 ppm

I2C Address

0x62

Interface

I2C



Pin Map


Documents



Wiki & Learn





SEN12026
