Octopus BME280 Pressure Sensor - ELECFREAKS EF04087

: SEN12023
€14.90
Tax included

Octopus BME280 Pressure Sensor is an electric brick integrating temperature sensor, air pressure sensor and humidity sensor onboard. We can use it to calculate the altitude according to the measured air pressure.

If you want to know more abouth this product, just check its Wiki Page

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

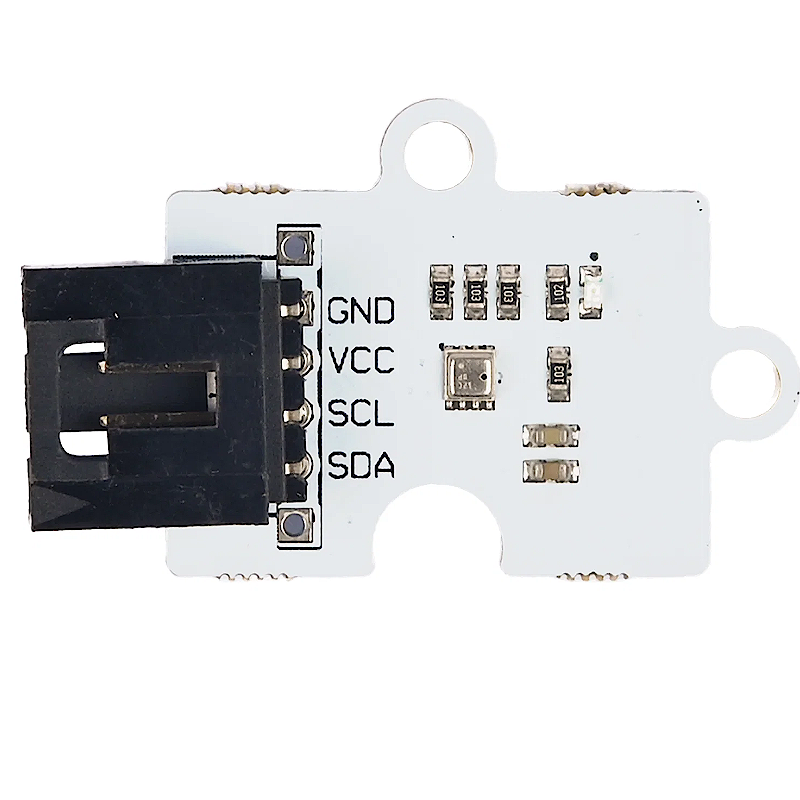

ELECFREAKS Octopus BME280 Pressure Sensor is an electric brick, which has an integrated temperature sensor, air pressure sensor, and humidity sensor onboard. We can use it to measure humidity, temperature, and air pressure, or even to calculate the altitude according to the measured air pressure.



Packing List

Analog Sensor Cable

1 pc

Octopus BME280 Pressure Sensor

1 pc



Specifications

SKU

EF04087

Version

V1.0

Working Voltage

DC 1.2V-3.6V

Connector Type

IIC（mode 3.4MHz）or SPI（3-wire or 4-wire mode10MHz）

Relative Humidity Range

0%～100% , response time：over 1s

Humidity Tolerance

±2%；Humidity Hysteresis：±1%；Resolution: 0.8%

Air Pressure Measure Range

300～1100hPa

Temperature Measure Range

0℃～65℃

Temperature Tolerqance

±0.5℃ Max:±1℃；Resolution: 0.1℃

Size

31 x 23 mm



Hardware Connection

Connect the sensor to I2C connector on octopus:bit using a jumper cable. Insert micro:bit into the octopus:bit.




SEN12023
