Gravity: Lightning Distance Sensor - DFRobot SEN0290

:SEN12015
€19.43

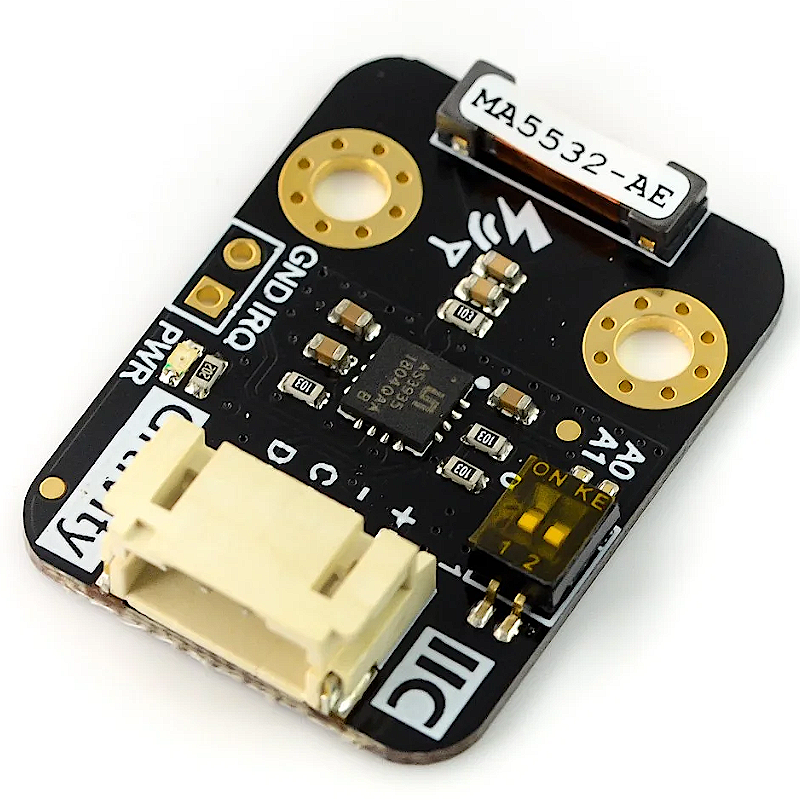

Gravity: Lightning Sensor employs AMS innovative AS3935 Franklin lightning sensor IC and Coilcraft MA5532-AE dedicated antenna to detect lightning distance, intensity, and frequency within a radius of 40km both indoors or outdoors.

If you want to know more about this product, check its Wiki Page.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Introduction

Gravity: Lightning Sensor employs AMS innovative AS3935 Franklin lightning sensor IC and Coilcraft MA5532-AE dedicated antenna to detect lightning distance, intensity, and frequency within a radius of 40km both indoors or outdoors.

The embedded man-made disturber rejection algorithm can effectively avoid the electrical interference generated by various household appliances. In addition to allowing general weather enthusiasts to measure local thunderstorm data simply and efficiently, thanks to its compact size and wide detection range, it can also be embedded in various smart wearable devices for outdoor climber or people who work at heights.

This provides early warning of thunderstorms that people can perceive, so that people can take precautions a step ahead. The sensor can also be embedded in the indoor protection device inside lightning-sensitive equipment, and automatically trigger these devices to switch to the backup power to isolate the power grid when lightning strikes. At the moment of lightning, the interrupt pin IRQ generates a pulse. This can be used to trigger the shutter to open, helping photographers to accurately capture the exciting moment of lightning.

The maximum estimated distance of lightning strike is 40km. Limited by the inherent measurement method and algorithm, the distance estimation resolution is 1~4km, 40 km in 15 steps. Read More details.


Connection Diagram

Gravity: Lightning Sensor (Arduino UNO)

Gravity: Lightning Sensor (Arduino UNO)


Gravity: Lightning Sensor (Raspberry Pi 3B)

Gravity: Lightning Sensor (Raspberry Pi 3B)



Features

  1. Lightning detection within 40km in 15 steps

  2. Lighting intensity detection

  3. Used both indoors or outdoors

  4. Embedded man-made disturber rejection algorithm



Applications

  1. Consumer Weather Station (thunderstorm measurement)

  2. Wearable Devices (outdoor thunderstorm early warning)

  3. Lightning Photography



Specification

  1. Input Voltage : 3.3V~5.5V

  2. Maximum Detection Range: 40 km

  3. Distance Detection Resolution: 1~4 km

  4. Intensity Detection Resolution: 21 bits, i.e. 0 ~16777201

  5. I2C Address: Three options 0x03, 0x02, 0x01

  6. Interface: Gravity I2C (logic level: 0-VCC)

  7. Dimension: 30.0mm*22.0mm/1.18*0.87 in



Documents



Shipping List

  1. Gravity: Lightning Sensor                        x1

  2. XH2.54-2P Black Header                        x1

  3. Gravity-4P I2C/ UART Sensor Wire          x1
